Spiral Water Technologies, Inc. products

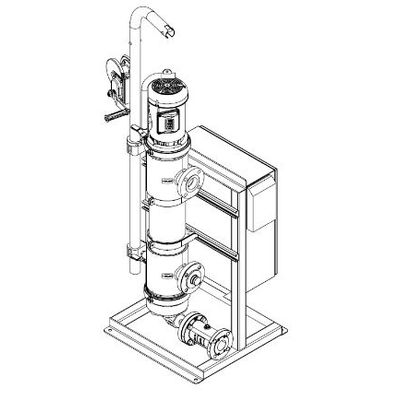

The SWT850-OEM is an automatic self-cleaning filter designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral- shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the end of the filter housing to be  expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required. The Purge chamber can be configured to dump solids directly to waste or for concentration of solids.

The SWT850-SMS is an automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the end of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required. The Purge chamber can be configured to dump solids directly to waste or for concentration of solids.

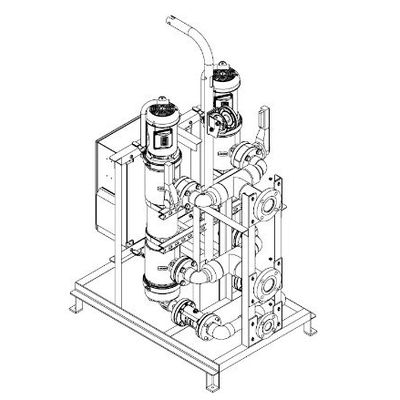

The SWT850-DPX is an automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the end of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required. The Purge chamber can be configured to dump solids directly to waste or for concentration of solids.

T1000-OEM – Floor mounted single filter for use by OEMs and System Integrators (controls, sensors and valves by others). The T1000-OEM is a liquid/solid separator and automatic self-cleaning filter designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream for Industrial Applications. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required.

The T1000-SMS is a liquid/solid separator and automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required.

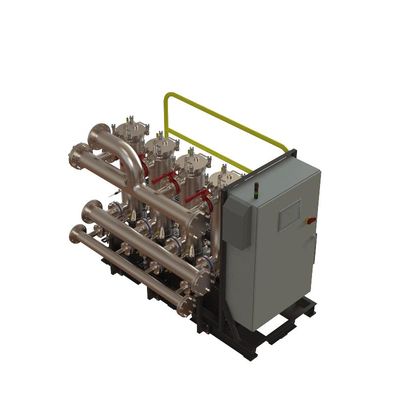

The T1000-DPX is a liquid/solid separator and automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required.

The T1000-TPX is a liquid/solid separator and automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required.

The T1000-QPX is a liquid/solid separator and automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required.

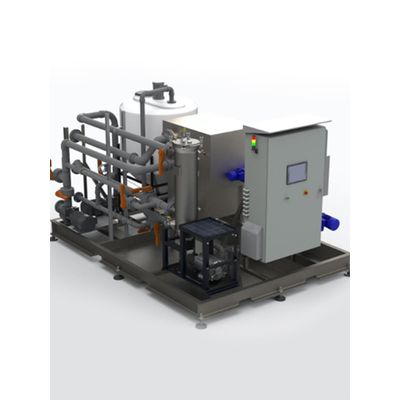

The latest addition to Spiral Water’s portfolio, the High Solids Water Recovery (HSWR) System is a powerful, customizable, and cost-efficient turnkey solution that maximizes the recovery and reuse of water from industrial and other challenging wastewater streams.

Self-cleaning filter technology offers a viable and cost-effective alternative for treating difficult, particulate-heavy processes and wastewaters. This technology has existed for several years, but until recently, it had proven unable to handle high solids loading for an extended period without blinding off.  To address this, Spiral Water Technologies (SWT) has developed a line of advanced automatic self-cleaning filters designed to remove ultra-high and variable TSS (15,000 mg/L and more) from a fluid stream while simultaneously concentrating solids for low-volume discharge.
