Spiral - Model T 1000-TPX -Liquid/Solid Separator and Automatic Self-Cleaning Filter System

Our Series 1000 automatic self-cleaning filter is engineered for medium to high flow, high pressure, high temperature applications and liquid/solids separation. It is designed for industrial use to remove ultra-high and variable total suspended solids (TSS) from a fluid stream. Series 1000 filters are available in two models – the T1000 for industrial applications and the H1000 for clean processes where hygienic conditions are required. These models are made with stainless steel to ensure optimal durability.

Spiral Water’s Series 1000 automatic self-cleaning filters are specifically engineered to remove high total suspended solids/biochemical oxygen demand (TSS/BOD) from fluid streams. They can handle high TSS loading exceeding 500 ppm as well as remove bulk solids up to 15,000 mg/l all while providing continuous filtration for particle sizes between 15 and 1,500 microns. In a single pass, these filters are capable of filtering up to 50 times dirtier water with significantly less energy and a smaller footprint compared to large capital equipment.

Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing, to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps are required.

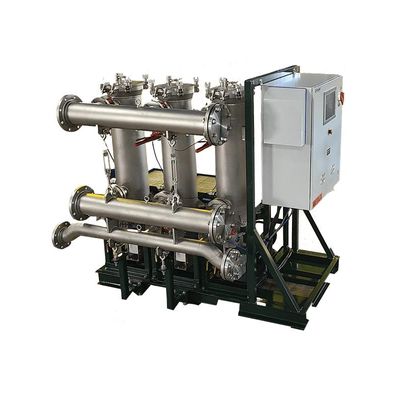

Systems are configured from single to multiple filter configurations to satisfy higher customer application flow rates. Depending on your particular needs, Series 1000 filters are available in various models for both industrial and food & beverage and other clean processes where hygienic conditions are required.
