Statiflo International Ltd. products

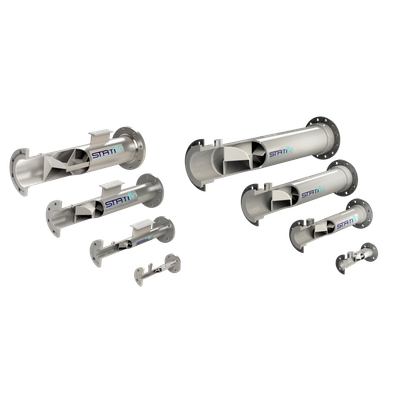

Statiflo Inline Static Mixers suitable for all process industries. Pre-fabricated and packed – meaning you can have rapid delivery of the items you require. Supplied in a standard construction with EN1092 PN16 flanges and a 1″ injection boss. Available in uPVC or stainless steel materials from DN25 (1″) to DN100 (4″). We also have a variety of other static mixer types available.

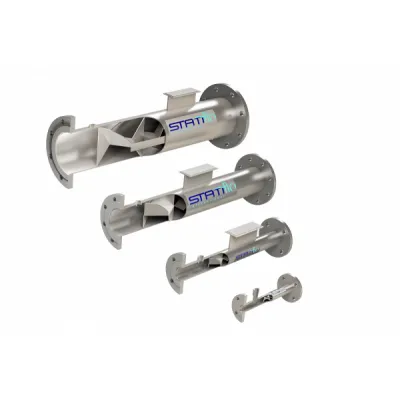

Statiflo General Industrial Inline Static Mixers suitable for all process industries supplied with fixed or removable mixing elements. Usually supplied with SO or WN flanged end connections, but could equally be supplied with plain or weld prepared ends. Screwed/threaded end connections available for smaller sizes. Optional flanged or threaded injectors and sampling points. Optional heating/cooling jackets. Can be supplied in all commercially available metallic materials.

Statiflo Inline Static Mixers suitable for the water and wastewater treatment industries supplied with fixed mixing elements. Flanged or plain ended for VJ couplings with screwed end connections available for smaller sizes. Optional injectors and sampling points. Generally supplied in all stainless steel but for large diameters epoxy coated carbon steel is available for increased cost effectiveness.

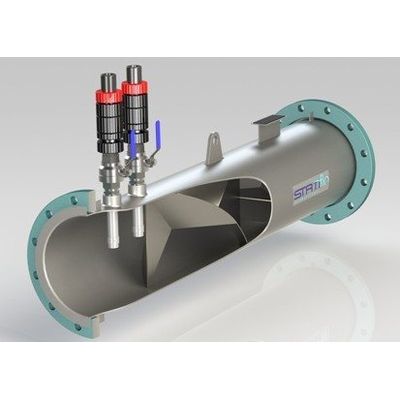

The Statiflo Non-Ragging (NR) Pipe Mixer – also called a Non-Blocking or Non-Clogging Static Mixer – is a high performance Static Mixer which has been specifically designed for sludge mixing or wastewater applications with high fibre content. The mixer’s free flow design gives excellent resistant to blocking, clogging and ragging meaning downtime is drastically reduced compare to the use of a regular-style static mixer or other mixing device. Combining the lack of ragging with the high mixing performance and consistent mixture quality achieved by the Statiflo NR Pipe Mixer, it is clearthat this product is a must for your wastewater application.

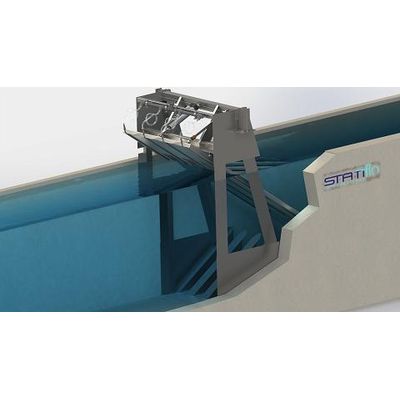

A non-ragging static channel mixer for dosing additives into wastewater including raw sewage.  The Statiflo NRC Mixer has been designed specifically for P removal applications but can equally be used on any chemical dosing service on raw sewage where non-ragging properties are essential.  It has a unique variable geometry custom designed for the widest range of wastewater velocities and channel depths found on a typical wastewater treatment plant. Statiflo NRC Mixers have been installed since 2008 and have consistently remained rag free and have required no maintenance.

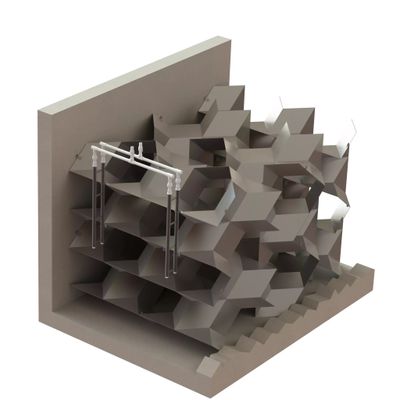

Statiflo’s Channel and Duct Static Mixers are revolutionising the design and operation of water and wastewater treatment plants. They are available in open channel or enclosed duct/conduit designs. Statiflo Series 900 Channel Mixers rapidly achieve a high degree of mix with extremely low headloss in very short lengths. Complete mixing in the channel is possible, achieving a low CoV, over a wide range of flowrates. With headlosses of just a few millimetres feasible, gravity flow is an option, eliminating the expense of pumping, saving not just capital costs, but ongoing maintenance andenergy costs too.

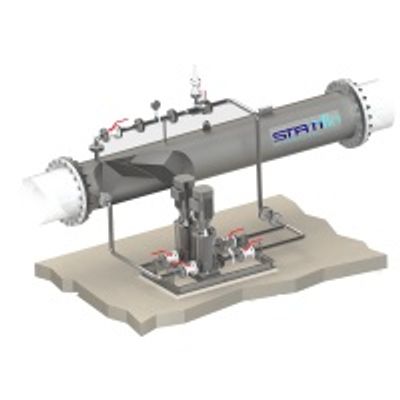

The Statiflo Gas Dispersion System (GDS) is a new concept for simultaneous mixing and mass transfer. The Statiflo GDS is designed to overcome the difficulties associated with the use of a single static mixer. The system uses two different mixers, the first, in a sidestream, to form small gas bubbles and the second, in the main line to provide contact time and efficient mass transfer. As the gas bubbles are formed in a constant velocity sidestream, the gas bubble size is constant and independent of any variations in the main liquid flow.

A range of Inline Compact (sometimes called Wafer-Style) Static Mixers originally developed to meet the special requirements of the global desalination industry, but now expanded across almost all process industries where a short length mixer is required. The Statiflo DSM compact static mixer provides the highest mixture quality with minimum dosing of additive(s), eliminating overdosing to enhance downstream separation efficiencies and membrane lifespan. The requirement for dosing lances with small additive release holes, aided by internal baffles, has been eliminated.

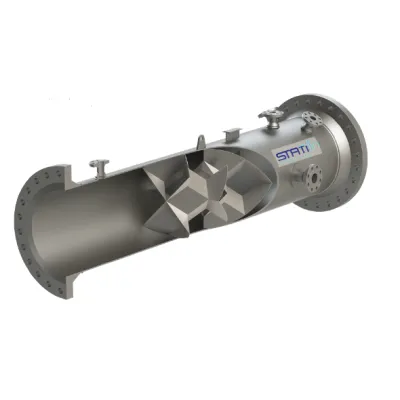

Statiflo Series 100/150CT Custody Transfer Motionless Mixers are designed to be versatile enough to cover all your custody transfer applications including transfer stations, LACT skids, etc. It is of the utmost importance that seller and customer both know exactly the water content of the oil they are purchasing or selling. This can often be very difficult because even the best sampling systems in the world can only provide accurate data if they are taking a representative sample.

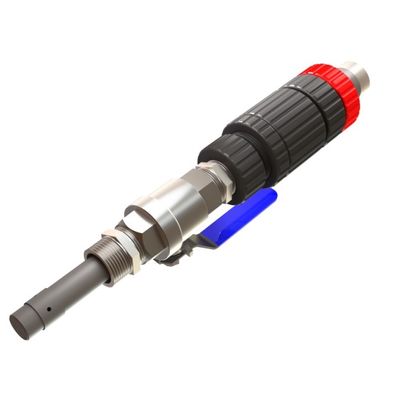

Statiflo Chemical Dosing Lances / Injection Lances are specifically designed to meet the needs of industry and maximise the mixing potential of Statiflo Inline Static Mixers. They are available to purchase with our Static Mixers or as a standalone product. Being withdrawable under pressure means that the main line doesn’t have to be completely depressurised in order to remove the dosing lance for maintenance. Various designs are available including the new XHP (Extra High Pressure) dosing lance which in addition to working with higher pressures than the rest of the StatifloChemical Dosing Lance range, uses a threaded wind-out design – as is now required by some sites – to be suitable for the most stringest of health & safety requirements.
