Steelpumps Evolution products

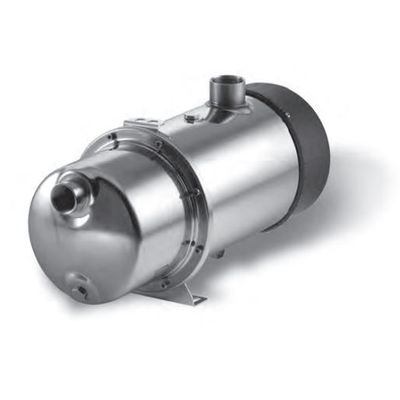

Materials: Motor body: Stainless steel AISI 304. Technopolymer fl ange and pump body. Shaft: Stainless steel AISI 420. Diffuser, impeller and venturi Jet: Noryl. Rear cap: Polypropylene. Basis: Stainless steel AISI 304. Dumping feet: Rubber. Mechanical seal: Graphite / ceramic. Oil chamber on the mechanical seal. A2 Stainless steel bolts. NBR70 O-ring. H07RN8-F Electric cable 10m length with Schuko plug. Tropicalized circuit board in compliance with the RoHS directive. Class F insulated motors.

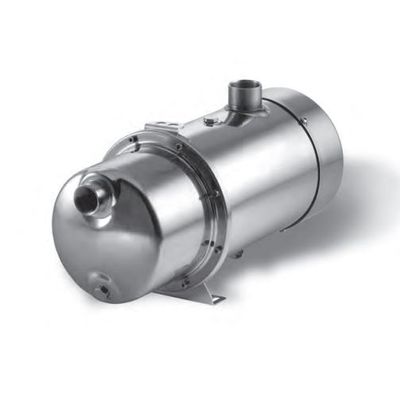

Materials: Motor body and pump body: Stainless steel AISI 304. Technopolymer flange. Shaft: Stainless steel AISI 420. Diffuser, impeller and venturi Jet: Noryl. Rear cap: Polypropylene. Basis: Stainless steel AISI 304. Dumping feet: Rubber. Mechanical seal: Graphite / ceramic. Oil chamber on the mechanical seal. A2 Stainless steel bolts. NBR70 O-ring. H07RN8-F Electric cable 10m length with Schuko plug. Tropicalized circuit board in compliance with the  RoHS directive. Class F insulated motors.

Materials: Motor body and pump body: Stainless steel AISI 304. Technopolymer fl ange. Shaft: Stainless steel AISI 420. Diffuser and impeller: Noryl. Rear cap: Polypropylene. Basis: Stainless steel AISI 304. Dumping feet: Rubber. Mechanical seal: Graphite / ceramic. Oil chamber on the mechanical seal. A2 Stainless steel bolts. NBR70 O-ring. H07RN8-F Electric cable 10m length with Schuko plug. Class F insulated motors.

Materials: Motor body and pump body: Stainless steel AISI 304. Brass fl ange. Shaft: Stainless steel AISI 420. Diffuser and impeller: Noryl. Rear cap: Stainless steel AISI 304. Basis: Stainless steel AISI 304. Mechanical seal: Graphite / ceramic. Oil chamber on the mechanical seal. A2 Stainless steel bolts. NBR70 O-ring. H07RN8-F Electric cable 10m length with Schuko plug. Class F insulated motors.

INTELLY uses the most advanced Steelpumps technologies, to allow for pressure constant according to the request and consequently an optimization, also ensuring a reduction of noise. The presence of a communication display, the choice of the pump operating point, it turns out very simple, intuitive and feasible without special programming. Protection against dry-running antiblocking system every 72 hours of pump inactivity. The pump ensures comfort of pressure constant (adjustable set point) in the system and a great energy savings.
