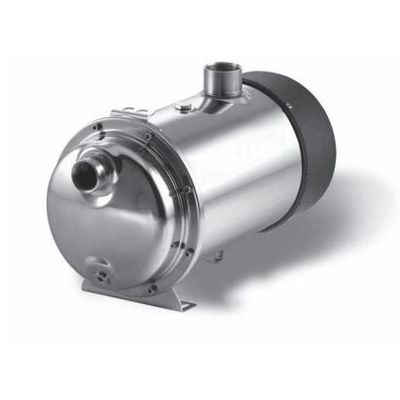

Model XMN B -Single Impeller Centrifugal Pump
Materials: Motor body and pump body: Stainless steel AISI 304. Technopolymer fl ange. Shaft: Stainless steel AISI 420. Diffuser and impeller: Noryl. Rear cap: Polypropylene. Basis: Stainless steel AISI 304. Dumping feet: Rubber. Mechanical seal: Graphite / ceramic. Oil chamber on the mechanical seal. A2 Stainless steel bolts. NBR70 O-ring. H07RN8-F Electric cable 10m length with Schuko plug. Class F insulated motors.
Up/Down technology for submersed, surface or underground installation.
Automatic system of water supply and dry-running protection.
Antiblocking system every 72 hours of pump inactivity Protection rating IP 68.
- Medium sprinkling and surface irrigations
- Tank drainage and transfers
Pumped liquid:
Clean water with no abrasive or suspended solids
Liquid temperature +2°C ÷ +40°C
Air temperature max +45°C
Depth max 5 m
