Belflor - Biofilter Materials for Biological Waste Air Depuration

Belflor® Biofilter Materials are designed to create an optimal environment for the bacteria responsible for waste air depuration. These materials meet the essential needs of the bacteria, being fertilized at production according to bacterial requirements. The biofilter materials are produced from high-quality raw materials ensuring their longevity. The structure of the materials helps in reducing material pressure loss and exercise costs. Belflor® offers various biofilter materials such as wood root, wood chips from different trees, and many other mixtures. Options include Belflor® wood root, HAC 360, and HAC 380 wood chips, RIM 220 and RIM 280 active mixtures, and specialized combinations like RIM 240, KOKM kokosmix, and BIM 100 biomix. These materials can be customized to specific needs and also provide old material disposal services. Their efficient structure and high-quality production ensure optimal bacterial activity for effective air purification.

Scrubbers

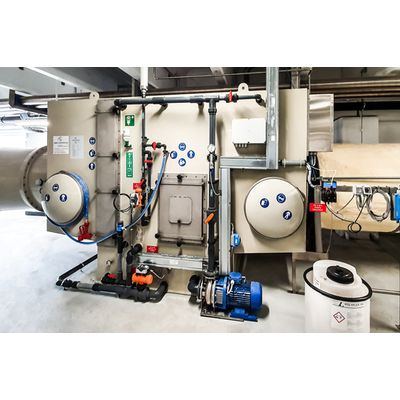

Chemical Scrubber for Air Purification

Chemical scrubbers are essential for the purification of waste air containing high concentrations of hazardous substances like hydrogen sulphide and ammonia. These substances pose a risk to biofilters, necessitating their removal before air filtration. Stoerk Umwelttechnik offers both horizontal and vertical scrubbers for this purpose. The technology effectively removes harmful chemicals from the waste air before it is processed by biofilters, ensuring safer and more efficient air purification. The scrubbers are particularly suitable for environments where the waste air contains volatile organic compounds or other chemical contaminants that need to be treated before being released or further processed.

Mechanical Scrubbers for Particle Separation in Waste Air

Mechanical scrubbers serve a vital role in the pre-treatment of waste air by ensuring complete particle separation before it reaches the biofilter. These scrubbers operate by utilizing continuously circulated water for washing. To further optimize operations and minimize water usage, a water pre-treatment system can be integrated, effectively degrading pollutants in compliance with legal requirements. Maintaining nearly 100% humidity of the waste air is crucial for the biofilter's biological process, achieved through the introduction of humidification devices or upstream scrubbers. Stoerk Umwelttechnik provides tailored solutions and expert guidance for implementing these systems.

Biological Waste Air Depuration

Biofilter for Biological Air Depuration

Stoerk Umwelttechnik's biofilters are designed for efficient biological air depuration. The system leverages microorganisms housed in biofilter material to adsorb and biologically oxidize air pollutants. Pollutants transition into a fluid phase on the supporting material, becoming accessible to the microorganisms. These microbes then metabolize the pollutants, converting them into biomass and thereby removing contaminants from the air. By utilizing the belflor® biofilter technique, Stoerk Umwelttechnik enhances the natural biological processes to achieve optimal air purification.

belflor - Biological Filter System

Up to 5.000 m³ air volume / h. Exercise under any weather condition. Plants made of corrosion safe materials (PE). Stacking possible (steel). Integrated technique Box. Standard installation preparation. Uniform air flow direction. Short construction time.
