OEM Accelerometer for Machine Monitoring

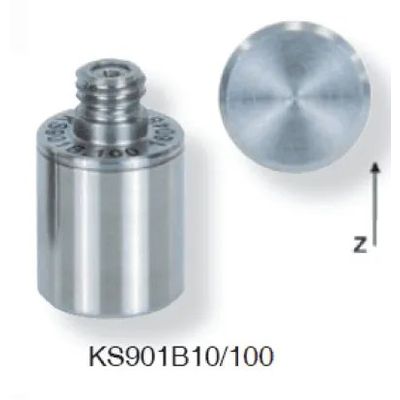

The KS90B, KS901B10 or KS901B100 are specifically designed as a Low Cost accelerometer for integration into machines and instruments. Using the latest Shear design, the Accelerometer is available as either Charge mode or IEPE output for dynamic ranges +/-5000, 500 or 60g. The sensor can be glued, clamped or tube mounted depending on application. The sensor is generally fitted to work in the Z Axis (up/down). KS90B Charge mode accelerometer is a TO-39 transistor package with solder pins, the KS901B10 & KS901B100 are stainless steel with a UNF 10-32 connector on top (axial).

Clip Mount NVH

The KS98B10 or KS98B100 are designed specifically for NVH or Clip Mounted applications, ideal for modal and structural analysis. The IEPE precision accelerometers incorporate advanced shear ceramics and TEDS IEEE 1451.4, ranges +/-500g or +/-60g with output 10 or 100 mV/g. Shock limit of 6000g and linear output to 16 kHz. Cubed 10mm, socket UNF 10-32 and with mounting in 3 directions via the plastic clip (1407) available as a consumable separate part along with the cable assemblies.

Inertial & Navigation - IMU Digital Output

Next-Generation LandMark 005 IMU

The Next-Generation LandMark™005 IMU offers the latest advancements in MEMS inertial technology. This high speed, three-axis IMU is equipped with low noise sensors, cutting edge VELOX™ processing and user configurable firmware with the most advanced features available. The LandMark™005 IMU comes fully modelled and calibrated over temperature and is the premier MEMS IMU for stabilization and precision measurement applications.

Next-Generation LandMark™007 IMU

The Next-Generation LandMark™007 IMU is built for high dynamic applications and offers the latest advancements in MEMS inertial technology. This high speed, three-axis IMU is equipped with low noise sensors, cutting edge VELOX™ processing and user configurable firmware with the most advanced features available. The LandMark™007 IMU comes fully modelled and calibrated over temperature and is the premier MEMS IMU for high dynamic stabilization and precision measurement applications.

Data Acquisition - Power Analyzers - Power Analyzer Systems

Modular DAQ System

The TRIONet is a universal measurement solution for local or distributed measurements. The TRIONet has capacity for two TRION™ modules for data acquisition of up to 16 high speed channels. Modules can be exchanged in seconds to customise the unit for additional measurement applications. Almost every type of signal is supported by TRION™ modules including voltage, high voltage, current, IEPE, bridge, potentiometer, counter, CAN, GPS. Multiple TRIONet units can be connected together in a synchronised network with all data stored on a single PC. It has LAN and USB3 interfaces for simple connection to a PC for data storage. TRIONet can also be used as an expansion to an existing DEWE data acquisition system. Solutions with TRIONet include real-time testing on trains and other electrical vehicles, wave energy and windmill testing, impact test laboratories, UPS testing.
