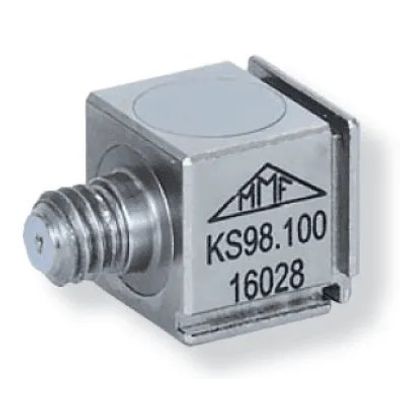

Model KS98 -Clip Mount NVH

The KS98B10 or KS98B100 are designed specifically for NVH or Clip Mounted applications, ideal for modal and structural analysis. The IEPE precision accelerometers incorporate advanced shear ceramics and TEDS IEEE 1451.4, ranges +/-500g or +/-60g with output 10 or 100 mV/g. Shock limit of 6000g and linear output to 16 kHz. Cubed 10mm, socket UNF 10-32 and with mounting in 3 directions via the plastic clip (1407) available as a consumable separate part along with the cable assemblies.
