streisal GmbH products

High efficiency TSRM submersible motors with pressure-tight encapsulation

Technical properties: Power: 1,1 kW. Mains frequency: 50 Hz. Circulating rate: 300 m³/h. Propeller diameter: 220 mm. Coolant/medium temperature: max. 40 °C. Mechanical seal: Pairing of SIC/SIC. Submersion depth: max. 20 m.

Technical properties: Power range: 1,5 – 18,5 kW. Mains frequency: 50 or 60 Hz. Axial thrust: up to 4920 N. Circulating rate: up to 7200 m³/h. Propeller diameter: to 1015 mm. Coolant/medium temperature: max. 60 °C. Mechanical seal: Pairing of SIC/SIC. Submersion depth: max. 20 m.

Technical properties: Power range: 1,5 – 11 kW. Mains frequency: 50 or 60 Hz. Axial thrust: up to 4000 N. Circulating rate: up to 15310 m³/h. Propeller diameter: to 2650 mm. Coolant/medium temperature: max. 60 °C. Mechanical seal: Pairing of SIC/SIC. Submersion depth: max. 20 m.

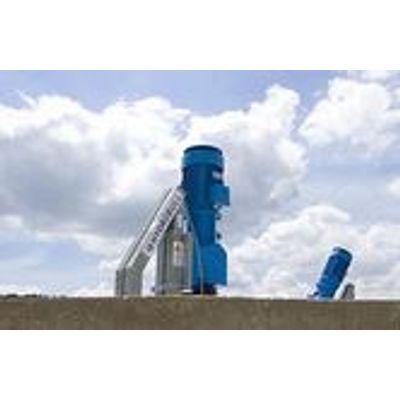

Powerful vertical agitators from 1 to 30 kW. Vertical agitators from streisal can be used for all kinds of agitating and mixing tasks thanks to their modular design, and are able to be used in various industries: Gentle mixing and circulation, suspension of solids as well as flow generation in industry, water supply or biogas generation.

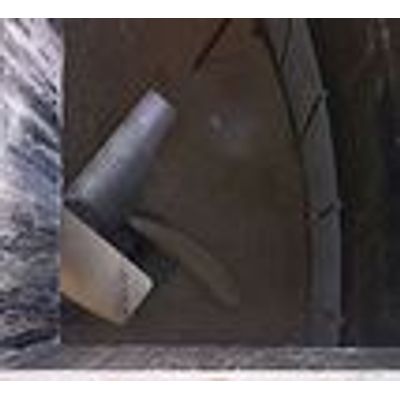

The powerful, large propeller agitators of the Maischebull^® /Hydrobull^® type make it possible to mix or stir in large quantities of solids in pre-pits, mashing pits and hydrolysis tanks. Especially with difficult substrates containing fibrous components such as solid manure or grass, this reliable and low-wear agitating system has proven itself effective many times over in combination with direct filling from wheeled loader buckets through a loading chute.
