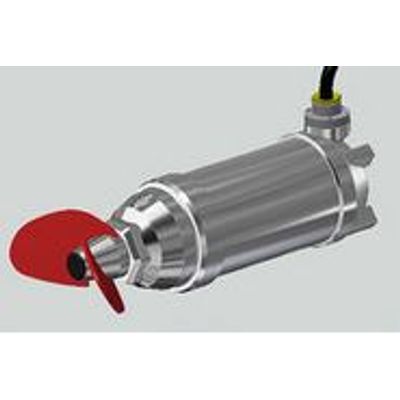

Streisal - Model TRV -Submersible Motor Agitators with Direct Drive

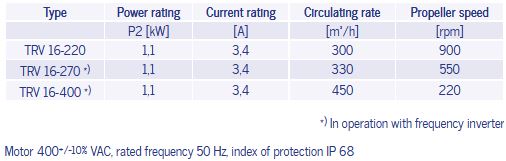

Technical properties: Power: 1,1 kW. Mains frequency: 50 Hz. Circulating rate: 300 m³/h. Propeller diameter: 220 mm. Coolant/medium temperature: max. 40 °C. Mechanical seal: Pairing of SIC/SIC. Submersion depth: max. 20 m.
- Housing Stainless steel 1.4301 (V2A)
- Bearing plates Stainless steel fine casting 1.4308
- Connecting elements Stainless steel 1.4301 (V2A)
- Propeller shaft 1.4104
- Propeller Stainless steel 1.4301 (V2A)
- Mechanical seal Silicon carbide
- Temperature monitoring in the motor winding
- Monitoring of the sealing system by leakage probe
The fast-running submersible agitators of the TRV type are suitable above all for swirling up deposits and solids, for example in pumping stations, equalisation or retention tanks as well as for industrial mixing of all kinds of substances in relatively small agitating tanks.
The universally applicable submersible motor agitator has a high-alloyed stainless steel housing and opens up entirely new applications – even for adhesive, highly aggressive and abrasive media. Seal elastomers are available either as fluorinated rubber (Viton) or as perfluorelastomers (Kalrez, Prafluor).
The robust small submersible motor agitator has a housing made of high-alloyed stainless steel which can be used even for difficult agitating and mixing tasks.
With its compact design, the submersible agitator is also suitable for tight installation openings for subsequent installation.
When operated with a frequency inverter, variable speeds and propeller diameters allow for flexible adaptation to the medium.
