Sundyne Corporation products

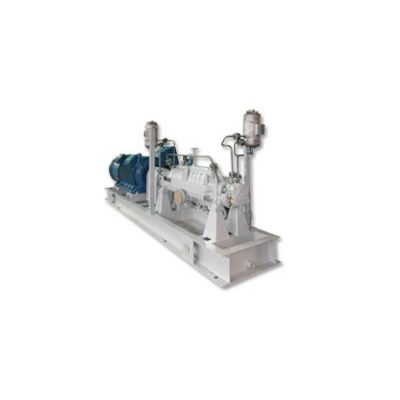

The DVMX is a fully compliant API-610 11th Edition BB3 and ISO 13709 multi-stage process pump. Available in 4 - 14 stages. High efficiency hydraulics well suited for refinery applications including platforming, pipline, charge pumps and coker. High performance heavy duty design for boiler feed, crude oil pipeline, desalination, water injection, fracking. Horizontal axial split case running back to back impellers in heavy-duty double volute casings. A perfect high-flow, high-head compliment to Sundyne low-flow, high-head integrally geared LMV and BMP centrifugal pumps.

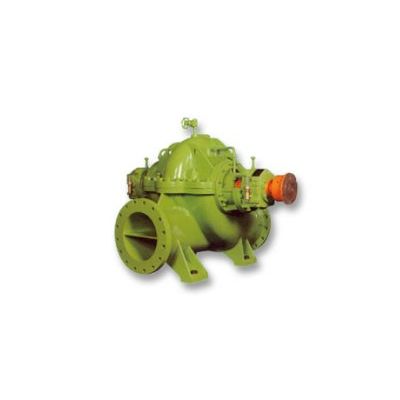

The PDH-LH is a heavy-duty API-610 11th Edition BB1 axially split case pump. Flows to 27,298gpm (6,200m), Heads to 650 ft (200 m). Designed to Heavy API-610 11th Edition BB1 standards, the PDH-LH pump features an axially split case with a single or double suction impeller. One stage of double suction. The LH pump is perfectly suited for refining applications including cooling water, distillation and sulfur recovery. Also, a reliable pump for loading, boiler feed boosting, crude oil pipeline, dealination and water transfer.

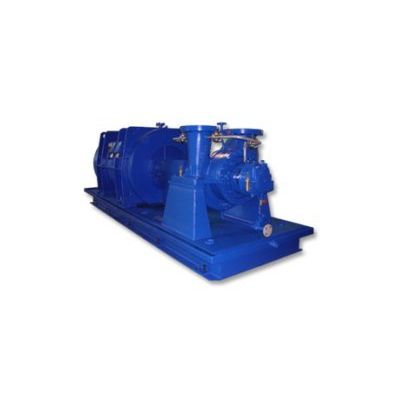

The KSMK is an API 610 / ISO 13709 11th Edition BB2 radially split one or two-stage centrifugal pump. Flows to 13,209gpm (3,000m³/hr), Heads to 1,640ft (500m) . API 610 / ISO 13709 11th Edition BB2 radially split, centerline mounted, double volute, between-bearings centrifugal process pump. It is available in one or two stage configurations. These pumps feature a double suction impeller. In-line and side / side flange configurations available. An excellent pump for refining applications including toppings, gas condensate, HDS and platforming. Any application requiring high suction pressure including thermol solar, crude oil and gas pipelines, charge pumps and low shear applications.

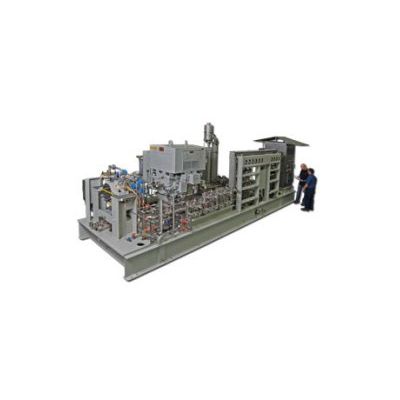

The Pinnacle is an API 617, multi-stage centrifugal integrally geared compressor. Flows to 10,000 ACFM (17,000 AM³/hr), Max working pressure 4,000 psia (350 bar).

The BMC-34X TYPE A is an API 617 compliant horizontal integrally geared single-stage centrifugal compressor. Flows to 3,550 ACFM (6,030 AM³/hr), Max working pressure 1,600 psig (110 barg).

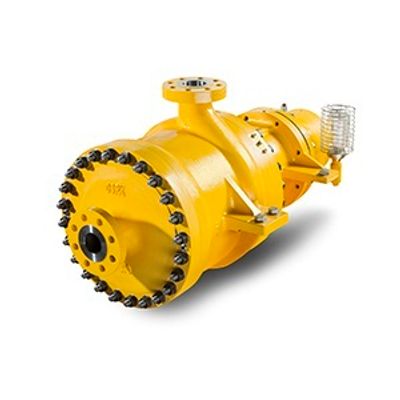

The GSPX magnetic drive pump is a multi-stage, API-685, BB5 design that is ideal for oil and gas installations, plus chemical and petrochemical applications.

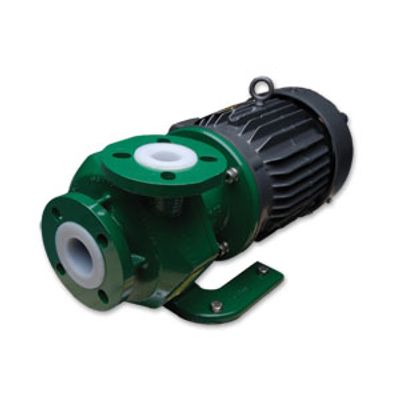

The KMLF is an ASME / ANSI B73.3 standard chemical process sealless magnetic drive non-metallic centrifugal end suction pump. This ASME / ANSI standard pump covers a wide range sizes and includes standard external dimensions so that pumps manufactured by other suppliers are dimensionally interchangeable with highly reliable Sundyne ANSIMAG sealless magnetic drive pumps without changing piping or baseplates. Our sealless magnetic drive pumps meet standard design specifications and materials of construction.

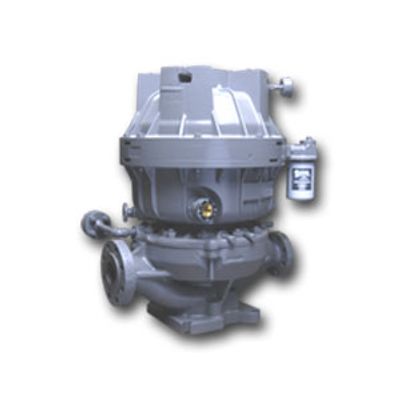

The LMV/BMP-311 is an integrally geared driven centrifugal pump.  It is designed to ISO-13709 and API-610, 10th edition (OH6) standards for maximum performance and reliability. With a small footprint highly reliable Sundyne pumps will meet your application needs.

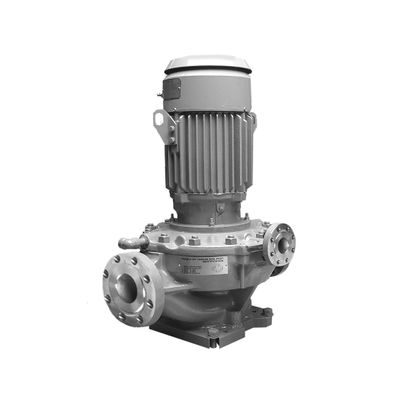

Safe, reliable and economical the Sundyne API 610, OH3 or OH5, Direct Drive Pump. The Sundyne LMV-801 is Sundyne’s original direct drive pump.  Over the last several decades, thousands of these general service pumps have been deployed by process and rotating equipment engineers for industrial applications in the hydrocarbon, refining, petrochemical, chemical production, oil and gas production, offshore and specialty processing industries. Sundyne pumps are renowned for high suction pressure and for a wide range of operating temperatures.
