Synergy Systems & Solutions (SSS) products

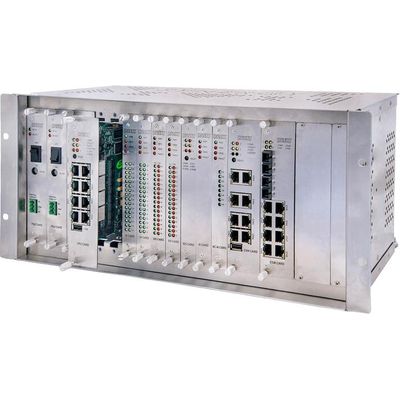

HUSKY RTU 6049-E70 has been designed to address data acquisition and control requirements of various industry segments. The RTU follows a scalable architecture that’s expandable while maintaining flexibility and adaptability to suit different application scenarios. The RTU is designed for mounting in 4U-high sub-racks. Choice of I/O modules with varying densities, and chassis backplanes are available for optimal configuration of different application needs. The RTU can be configured to suit I/O requirements of medium to high range applications, through addition of I/O modules and expansion racks. All racks have generic I/O slots, which can be used for any of the supported I/O modules. This architecture aids in flexibility of system design while keeping costs to the optimum.

RTU 6049-E70m is a compact Remote Terminal Unit (RTU) to cater to the needs of remote data collection / automated monitoring/controlling systems, which typically have very low I/O counts. Built using the proven technology of RTU 6049-E70, the Mini-RTU offers a customized and cost-efficient solution for remote data collection applications. The Mini-RTU features an embedded 32-bit microprocessor and a real-time operating system that provide the computing power to effectively meet the requirements of data collection and aggregation from a multiple devices, and to communicate the data to single or multiple central stations.

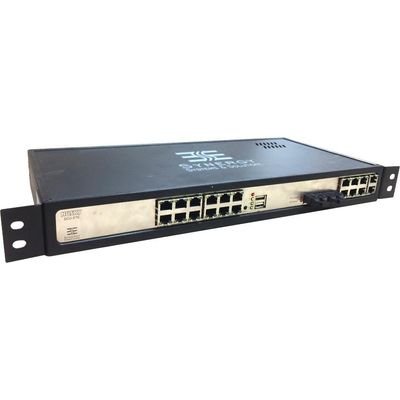

DCU-E70 is a multi-functional computing device suitable for Industrial Automation applications, as compliant to IEC61850-3 standard. DCU-E70 offers multiple serial and Ethernet ports for connecting to SCADA/HMI systems and field devices (IEDs), along with a rich set of communication protocols. Three major models are available under the DCU- E70 series.

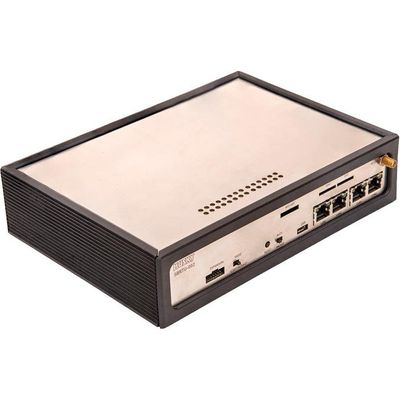

HUSKY SBRTU is a high-performance single board RTU powered by an ARM microprocessor. The RTU provides communication interfaces as well as process I/O in a compact form factor. The RTU can be equipped with 2 nos. of Ethernet ports and 2 nos. of RS232/RS485 serial ports and various process I/O options (DI, DO, AI, AO & RTD) are available. Additionally, 3G/4G and Wi-Fi wireless interfaces are also supported as an option. The SBRTU supports industry-standard protocols such as Modbus RTU/TCP, IEC 60870-5-101/104, DNP3.

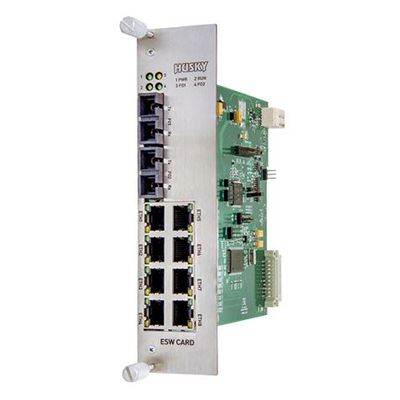

HUSKY series Ethernet switch modules provided small form-factor, fixed-port managed industrial switches.

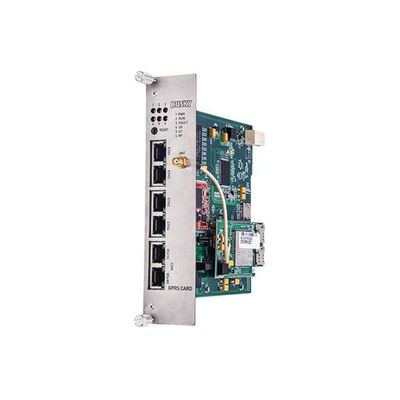

HUSKY 2G/3G/4G Router that enables any Ethernet device to communicate with a central location over 2G/3G/4G networks over a secured VPN. The VPN is a transparent channel which can be used to exchange any kind of TCP/UDP traffic on both the directions. The end devices and the control center communicate using private, static IP addresses, over a public, dynamic IP network.

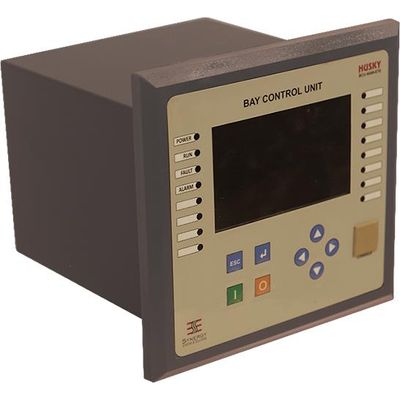

HUSKY Bay Control Unit (BCU), provides fully automated monitoring and control of substation switching devices. Bay control requirements can be customized via inbuilt logic engine utilizing the hardwired digital and analog I/O modules. A modular architecture allows choice of digital I/O combinations as per need, include optional communication modules for communications with higher-order systems. In-built HMI allows local monitoring of bay status and measurements, along with recorded history of sequence-of-events. Local control of the switching equipment can also be performed through the HMI.
