TANDA Development Pte.Ltd products

Intelligent Fire Alarm System

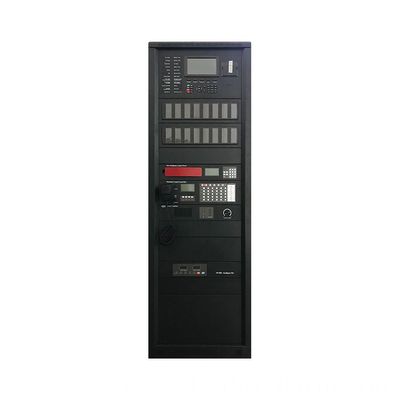

TNA - Addressable Control Panel

The TX7008R comprise of a range of analogue addressable, microprocessor based fire alarm controlequipment to offer flexibility in both design and operation. The TX7008R is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread.Simultaneously, the TX7008R will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gas shut off & damper control, as per the cause and effects requirements configured though Command Builder Set-up.The System is modular concept for easy tailoring of system design, to meet the full requirements of the project. The TX7008R Intelligent Fire Alarm Control Panel is designed and manufactured to meet the requirement of BS EN54 Part 2&4.

TNA - One Loop French Language Fire Alarm Control Panel

It comprise of a range of analogue addressable, microprocessor based fire alarm control equipment to offer flexibility in both design and operation.The System is modular concept for easy tailoring of system design,to meet the full requirements of the project. The Intelligent Fire Alarm Control Panel is designed and manufactured to meet the requirement of BS EN54 Part 2&4.It is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread. Simultaneously, it will alert and evacuate the occupants, and control all necessary auxiliary command functions.

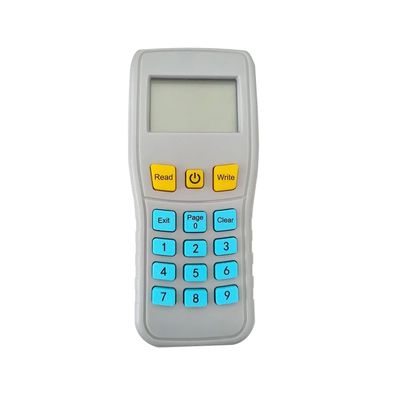

Handheld Programmer

The TX7932 is miniature and robust design makes it convenient to bring in the work place. The programmer is packed with twin 1.5V AA battery and cable, ready for usage once received. Easy to understand the display and with functional keys allow easy single-button activation of the common used parameters.

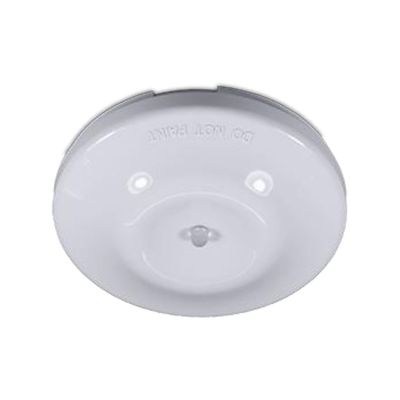

Remote Indicator

681 remote indicators provide fire detection and alarm system designers with an economical product for life safety and property protection applications. 681 remote indicators provides visual alarm indication for addressable and non-addressable control and indicating equipment detectors when the detector connected to the remote indicator enters the alarm condition. The indicator is used to identify the detector in alarm and is useful where the detector cannot be easily seen when installed in the building

Conventional Fire Alarm System

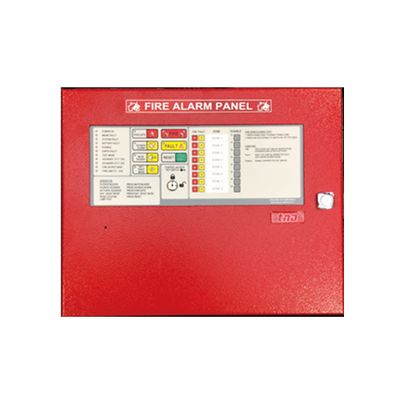

TNA - Conventional Fire Alarm Control host

The CFP-600L Series of Fire Alarm Panel uses the latest in microprocessor technology to meet today’s stringent requirement for acomprehensive and versatile range of Fire Alarm SystemsDesign for ease in installation and operation, thecontrol functions and programming are enable througha key-switch to prevent unauthorised access.Operation of the Panel is made simple withfrontal indications and switches, providing acost effective solution for small to mid –sizeFire Alarm System

TNA - Non-addressable Fire Alarm Control Panel

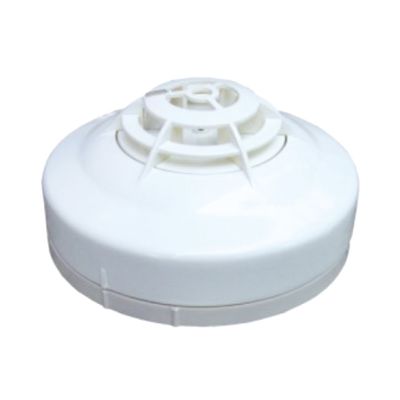

Conventional Heat Detector

Designed to comply with EN54-5, European Standard. LPCB Certification approved. With a combination of detecting Rate-of-Rise and Fixed Temperature for higher safety, this detector is ideal for general fire detection purposes. Rate-of-Rise heat detectors are particularly suited in areas where the temperature is normally fairly stable - useful for low ambient temperature areas where the response of fixed temperature may be slower. It activates upon the rapid rise in temperature. Fixed Temperature Heat Detectors are particularly suited to areas where the temperature can fluctuate for a natural reason - e.g. where there are large windows or industrial heat-producing processes. It is preset to trigger an alarm when the temperature reaches approximately 57? - therefore an excellent way of avoiding continual alarms in areas where the temperature fluctuates rapidly. The DET-C631 optical smoke detector can combine with the standard base of model DB-6.

Conventional Optical Smoke Detector

Designed to comply with EN54-7, European Standard. With LPCB Certification. The DET-C631 optical smoke detector is suitable for general smoke detection, particularly effective in detecting large visible smoke particles such as those produced by smoldering wood, paper, PVC or polyurethane foam. The smoke detector detects fire by the scattering of an infrared beam, which circuits are considered an infrared beam emitter and receiver. The emitting and receiving lens are in the optical sensing chamber, screening and interference from outside lights, without preventing the entrance of smoke particles. In a smokeless condition, it only receives very weak infrared light. When smoke particles enter the chamber, the received light signal will increase due to scattering. When the smoke reached the predetermined density, it will trigger an alarm signal. The DET-C631 optical smoke detector can combine with the standard base of model DB-6.

Alarm Bells

The MBA series Alarm Bells are low-current, audible signaling devices for use in Fire Alarm Systems and other signaling applications to provide warning during emergencies. The Bells are polarized for usage with supervision circuitry, with low current, high efficiency DC motor to drive the striker. The Bell Gong is made of steel, finished in red enamel paint with the mechanism enclosed in an ABS plastic housing.

Wireless Fire Alarm System

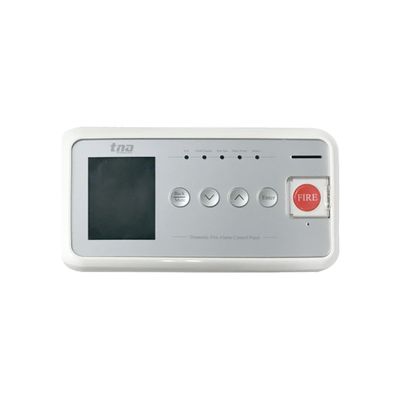

TNA - Mini Wireless Fire Alarm Control Panel

TX3001M Household Fire Alarm Controller (referred to as TX3001M) is Shenzhen Taihe An Technology Co., Ltd. to fully investigate the fire market demand, summed up many years of fire engineering experience, integration of national standard GB22370-2008 "Home fire safety system" requirements and spirit, Design of a next-generation alarm intelligent controller. TX3001M Household fire alarm controller adopts modular design, which has the characteristics of strong function, high reliability and flexible configuration.
