Technical Weighing Services Inc. products

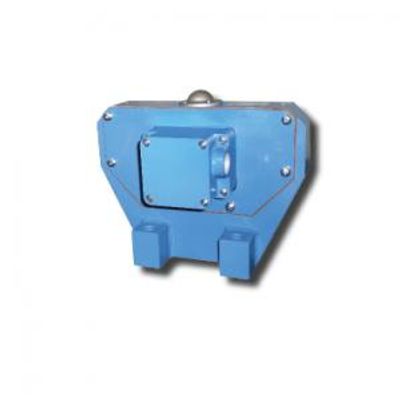

The model TWS-104 load cell is a strain gage load cell that directly replaces the QGPL-104 ABB Pressductor load cell.  By changing to strain gage technology, any strain gage instrument can now be used with these cells.  These Techweigh replacement cells will have the same body style and capacities as the ABB cells, replacing capacities from 10MT to 160MT.  The load cell utilizes the same mounting arrangement and cables, so there is no need for mechanical alterations or new cable runs.

Package Includes: (1) 10,000 Pound Crane Scale (display on both sides).

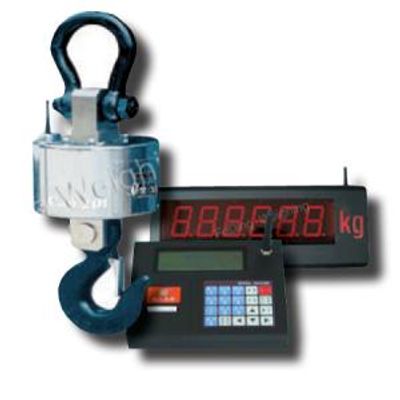

Package Includes: (1) 100,000 Pound Crane Scale . (1) TW3168E Type Indicator (portable). (1) Scoreboard.

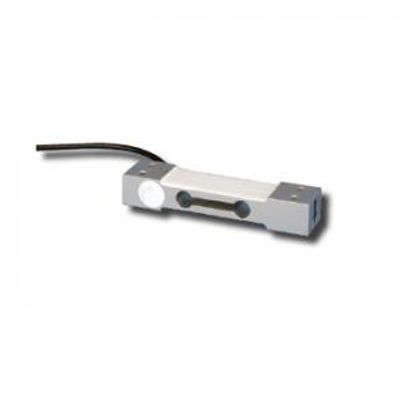

Interchangeable with: Rice Lake RL1521. BLH C2G1. Fairbanks 4900 Series Checkweighers. NMB C2G1. Tedea Huntleigh 1022. Celtron LPS.

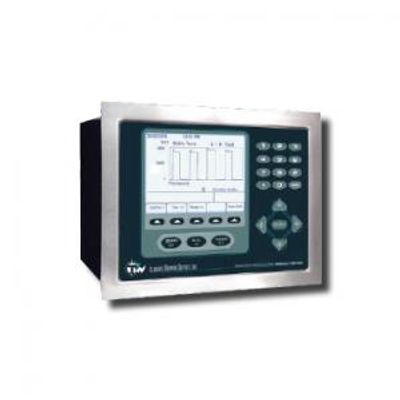

Designed specifically to meet the demands of the modern rolling mill, the MillMaster DSP2000 delivers accurate measurement and communication at the high speed required by today`s technology, and other applications that require continuous measurement. The MillMaster DSP2000 will work with 1st and 2nd generation ABB cells, ABB MillMate cells and TWS PFM111 Series load cells. Onscreen level detection I/O and Rate of Rise (Metal in Mill) detect is a standard feature on the MillMaster DSP2000. This feature is user definable, complete with hysteresis and slew rate adjustments. All rolling mill information can be viewed at once in real time. This includes the operator side, drive side, total and differential.

Designed specifically to meet the demands of the modern rolling mill, the MillMaster DSP2000 delivers accurate measurement and communication at the high speed required by today`s technology, and other applications that require continuous measurement. The MillMaster DSP2000 will work with all Kelk cells and Techweigh MillMaster load cells. Onscreen level detection I/O and Rate of Rise (Metal in Mill) detect is a standard feature on the MillMaster DSP2000. This feature is user definable, complete with hysteresis and slew rate adjustments. All rolling mill information can be viewed at once in real time. This includes the operator side, drive side, total and differential.

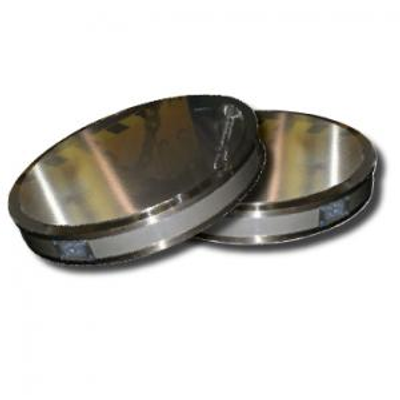

The PFM111C Series Rolling Mill load cells are a precision force measuring device designed to install in the modern rolling mill.  The magneto elastic desing allows for direct replacement of ABB 2nd generation QGPC-101 Series roll force load cells.

The PFM111C Series Rolling Mill load cells are a precision force measuring device designed to install in the modern rolling mill. The magneto elastic desing allows for direct replacement of ABB 2nd generation roll force load cells.

The PFM111C Series Rolling Mill load cells are a precision force measuring device designed to install in the modern rolling mill. The magneto elastic desing allows for direct replacement of ABB 2nd generation roll force load cells.
