TerraSource Global products
Storage & Reclaim
Jeffrey Rader - Belt Pile Builder for Wood Chips
The Jeffrey Rader Belt Pile Builder was designed exclusively for handling wood chips in pulp & paper and biomass applications and to provide features not available on other bulk throwers.
Jeffrey Rader - Pre-Steaming Bins for Wood Chips
Jeffrey Rader pre-steaming bins have been engineered and configured to meet just about any job requirement for pulp & paper applications.
Jeffrey Rader - Stoker of Sliding Frame Reclaiming Device
Sliding frame reclaiming device. Placed in the bottom of bins or large rectangular reclaiming areas, it has a hydraulic cylinder that pushes a ladder. This ladder on the forward stroke pushes the material forward. Then the ladder retracts through the material, but because the back of the ladder is smooth the material stays in place until it pushes forward again.
Jeffrey Rader - Model CBR - Cone Bottom Reclaimer
Reclaim material from storage bins that have cone-shaped bottoms with the Cone Bottom Reclaimer (CBR). Engineered for long service life and ease of maintenance. The CBR has been engineered to operate 24 hours a day, 7 days a week. The unit is constructed of simple but rugged materials. The CBR design eliminates large rotating bearings and power slip rings typically used on other units. The reclaiming screw, bearings and drives can all be maintained and/or removed from outside of the bin and are of a standard off-the-shelf design. In today’s environment with lean operations, you need a device that is reliable and low maintenance.
Jeffrey Rader - Enclosed Storage Systems
A Frame and Circular Silo Enclosed Storage Systems for Wood Chips and Biomass Materials. Linear or Circular Recliaming Screw at the bottom of the Enclosed Storage Structure Provides FIFO (First-In, First-Out) Inventory Control.
Jeffrey Rader - Silos
Jeffrey Rader silos are used to store wood chips, bark, hog fuel, biomass and refuse derived fuels products before being used in boilers and kilns. Whatever the number of days' storage you require and type of product you are feeding, Jeffrey Rader storage and reclaim systems are designed to keep your facility running with a constant flow of materials. Depending on the boiler fuel specifications and design criteria, our equipment can be customized to achieve the objectives of the project. Inherent in the designs of Jeffrey Rader equipment are the capabilities and ability of the equipment to react quickly to changes in fuel demand.

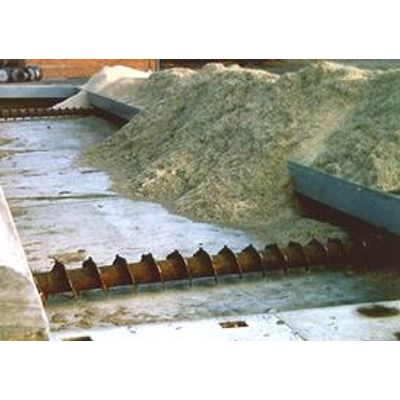

Jeffrey Rader - Linear Screw Reclaimers
Linear Screw Reclaimers are positioned at the bottom of the wood chip/biomass material pile to provide true FIFO (First-In, First-Out) inventory control. Jeffrey Rader brand Linear Screw Reclaimers are under-pile reclaimers that can be used in both open air and enclosed storage facilities. Advantages & Benefits: Automated process control suitability Reliable all-weather operation Automatic material blending Provision for mixing various wood species Easy expandability Variable input & output rates
Jeffrey Rader - Screw Conveyors
Screw conveyors transport, transfer and meter materials into and out of storage bins, silos, reclaiming piles, drag chains and from under other process equipment. Also known as an auger conveyor, spiral conveyor or robbing screw, the Jeffrey Rader screw conveyor can handle materials such as woody biomass, wood chips, bark, Refuse Derived Fuel (RDF), pellets, and many others.
