Tes Car s.r.l products

Torque: 40 knm. Engine power: 55 kw. Max depth: 18 m. Max diameter: 1000 mm. Total weight: 8,2 t.

Torque: 12 knm. Engine power: 18,2 kw. Max depth: 15 m. Max diameter: 800 mm. Total eight: 5 t.

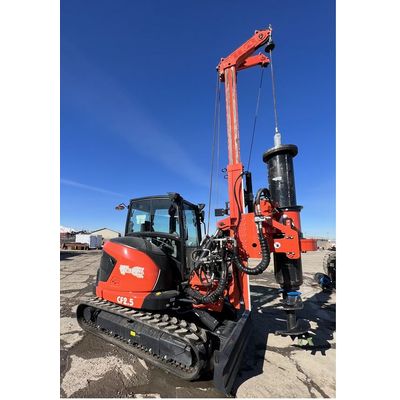

Equipped with a special mast divided into two telescopic sections to reach the minimum working position of 3500mm. The CF2.5 is equipped with a standard locking kelly bar for a depth of 15m, working under 5200mm. With a minimum undercarriage width of 1950mm, the CF2.5 can move in very narrow places and limited areas. The undercarriage is equipped with rubber tracks to work easily on any surface.

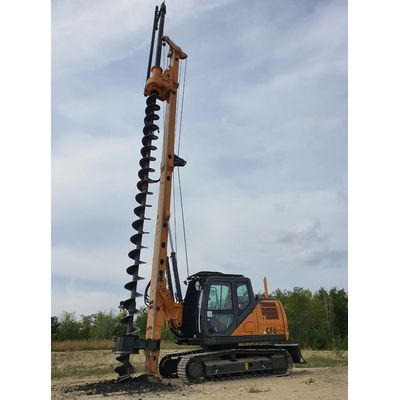

Provided with one section mast with a rotary stroke of 9,5 m which permit to use an 9 m continuous flight auger. Thanks to an extension pipe it`s possible to achieve a total depth of 12 m. Then adding a mast extension, the rotary stroke can be improved to 12,5 m which permit to use a 12 m auger. In this configuration, thanks to an extension pipe it`s possible to achieve a total depth of 15 m. Also available with an authomatic auger cleaning device, an additional pull-down winch of 2,5 ton and a computer board for the measurement of all the drilling parameters, rpm, pressure, concrete quantity, etc.

Equipped with a special mast divided into 3 telescopic sections to work at different heights and reach the minimum working position of 3500mm. The CF3S is equipped with a rack-locking kelly bar for a maximum working depth of 22m with the mast fully extended, or 10m with the mast closed down. With a minimum width of 2320mm, the CF3S can move in very tight places and in areas with limited access. The undercarriage is equipped with rubber tracks for easy work on any surface.

The CF4 in diaphragms mode can use the exhisting kelly bar of the standard version for bored piles, adding the diaphragms kit. Alternatively the rig can be equipped with a square kelly for a better working precision. The CF4 can also do close to the wall diaphragms thanks to a special device which replace the standard rotary head. With a max width of just 2320mm, the CF4 can move in limited access areas and restricted spaces.

The CF6 in diaphragms mode can use the exhisting kelly bar of the standard version for bored piles, adding the diaphragms kit. Alternatively the rig can be equipped with a square kelly for a better working precision. The CF6 can also do close to the wall diaphragms thanks to a special device which replace the standard rotary head. With a max width of just 2490mm, the CF6 can move in limited access areas and restricted spaces.

Grab dimension: 2500 x 600 mm. Max depth with kelly bar: 30 m. Max depth with square kelly: 25 m. Engine power: 97 kw. Total weight: 27 t.

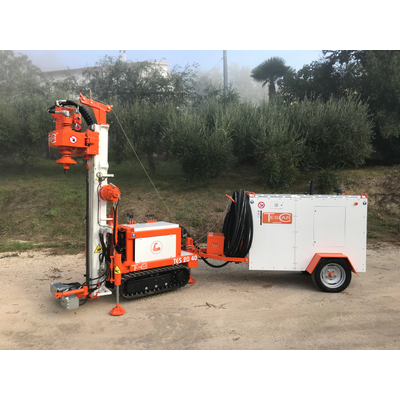

Suitable for the reinforcement of existing foundations, micropiles for retaining walls, it can work in very limited spaces and, thanks to the separate control unit, it can work inside existing buildings without problems of smoke or pollution. It can be equipped with a 2.5 or 5 kNm rotary and is equipped with a Tier4 Final engine. The TES20 can be equipped in different working modes: micropiles, probing, core drilling, DTH hammer. The TES20 is also equipped with a 20 l/min water pump at 60 bar for the spoil of the core samples during the soil investigation.

Torque: 5 knm. Engine power: 59,6 kw. Extraction/crowd force: 38,5 - 26 kn. Max diameter: 260 mm. Total weight    5,6 t.
