Texas Electronics Inc. products

The Texas Electronics, Inc. TB-2012M Barometric Pressure Sensor uses an active solid-state device to sense barometric pressure. Self-contained electronics provide a regulated voltage to the solid-state sensor and amplification for the signal output. The unit`s range of 26" to 32" of mercury, or 878 to 1080 mbar allows it to be used at elevations up to 1800 feet (548.64, meters) above sea level. The unit is temperature compensated from -18° to +50°C. If elevations above 1800 feet (548.64 meters) are required contact the factory for higher elevation calibration.

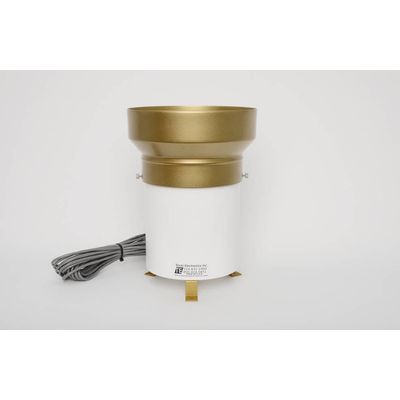

The Texas Electronics, Inc. TR-525I Tipping Bucket Rain Gauge with 6" diameter funnel is a remote tipping bucket style rain gauge that measures liquid precipitation. The Rain Gauge is a freestanding receptacle for measuring precipitation. Through an opening at the top of the device, rain is collected and then funneled to a mechanical device, called a tipping bucket. As water is collected, the tipping bucket fills to the point that it tips over, causing a momentary closure of a switch to incrementally measure rainfall accumulation. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying. The TR-525I is a rugged and reliable rain research grade gauge that delivers high accuracy at a low cost.

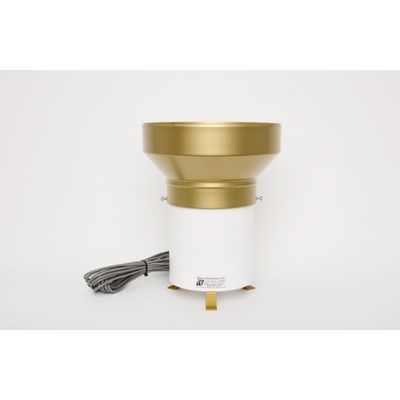

The Texas Electronics, Inc. TR-525USW 8" Tipping Bucket Rain Gauge with 8" diameter collector funnel is a remote tipping bucket style rain gauge that measures liquid precipitation. The Rain Gauge is a freestanding receptacle for measuring precipitation. Through an opening at the top of the device, rain is collected and then funneled to a mechanical device, called a tipping bucket. As water is collected, the tipping bucket fills to the point that it tips over, causing a momentary closure of a switch to incrementally measure rainfall accumulation. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying. The TR-525USW is specifically designed to meet the National Weather Service`s requirements for rainfall measurement.

The Texas Electronics, Inc. TR-525M 9.66" Tipping Bucket Rain Gauge has a 9.66" Collector is a remote tipping bucket style rain gauge that measures liquid precipitation. The Rain Gauge is a freestanding receptacle for measuring precipitation. Through an opening at the top of the device, rain is collected and then funneled to a mechanical device, called a tipping bucket. As water is collected, the tipping bucket fills to the point that it tips over, causing a momentary closure of a switch to incrementally measure rainfall accumulation. This action empties the bucket in preparation for additional measurement. Water discharged by the tipping bucket passes out of the rain gauge with no need for emptying. The TR-525M is a rugged and reliable metric rain gauge that delivers high accuracy at a low cost.

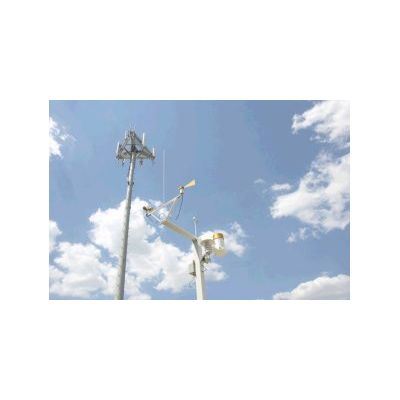

The CWS-1 Complete Weather Station is a packaged weather system designed to fit applications where precise weather data is required. The Industrial weather station utilizes research grade sensors and rugged mounting hardware to ensure reliable data transfer. This station is often ordered with 4-20mA outputs. These outputs can be used for integration with PLC`s, SCADA systems, or irrigation management systems. The Initial Complete Weather Station Base Cost includes a rugged 7` tall mast, cross arm, junction box and base. For custom sensor options please call us. We welcome custom orders. The Initial Complete Weather Station Base Cost includes a rugged 7′ tall mast, cross arm, junction box and base.

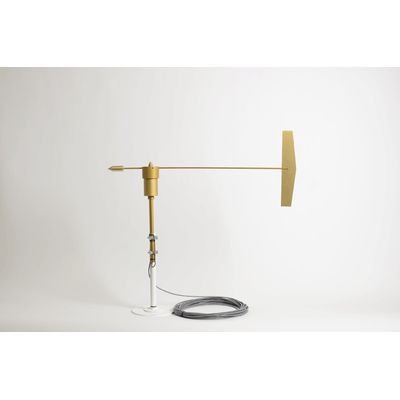

The Texas Electronics, Inc. TD-104-5D Wind Direction Sensor Heavy Duty is a mechanical style wind meter that measures the horizontal wind azimuth. The sensor is intended for long-term, maintenance free operation. This sensor is a freestanding device for measuring the direction of wind. The sensor consists of a vane and counterweight assembly, which is mechanically coupled to a potentiometer (variable resistor). As the vane rotates in the wind, the potentiometer changes resistance proportionally to the direction of wind.

The Texas Electronics, Inc. TV-110-L320 Wind Speed Sensor is a mechanical style anemometer that measures the horizontal velocity of wind. This unit is designed to meet or exceed all the EPA`s Prevention of Significant Deterioration (PSD) requirements. The TV-110-L320 wind speed sensor is a freestanding device for measuring air velocity. The sensor consists of a lightweight 3-cup anemometer, which is mechanically coupled to a 20-slot disc located within the sensor housing. A light beam, produced by an infrared light emitting diode (LED), passes through the slotted disc and falls upon a light-detecting transistor. The transistor switches on and off 20 times for each revolution of the cup assembly. Therefore a pulsed output is produced which is proportional to wind speed.

The Texas Electronics, Inc. TV-4 Wind Speed Sensor is a mechanical style anemometer that measures the horizontal velocity of wind. This unit combines small physical size with superior bearings to meet the EPA`s Prevention of Significant Deterioration (PSD) starting threshold requirements. The TV-4 wind speed sensor is a freestanding device for measuring air velocity. The sensor consists of a lightweight 3-cup anemometer, which electromechanically converts wind speed into a measurable electronic signal.
