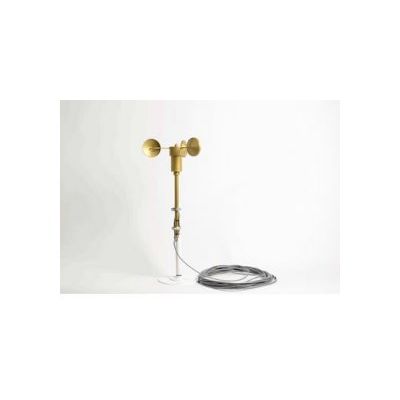

Texas Electronics - Model TV-110-L320 -Wind Speed Sensor Medium Duty
The Texas Electronics, Inc. TV-110-L320 Wind Speed Sensor is a mechanical style anemometer that measures the horizontal velocity of wind. This unit is designed to meet or exceed all the EPA`s Prevention of Significant Deterioration (PSD) requirements. The TV-110-L320 wind speed sensor is a freestanding device for measuring air velocity. The sensor consists of a lightweight 3-cup anemometer, which is mechanically coupled to a 20-slot disc located within the sensor housing. A light beam, produced by an infrared light emitting diode (LED), passes through the slotted disc and falls upon a light-detecting transistor. The transistor switches on and off 20 times for each revolution of the cup assembly. Therefore a pulsed output is produced which is proportional to wind speed.
- Accuracy +/- 1.0 mph (0.45 m/s) over entire range; +/- 0.6 mph (0.25 m/s) at less than 11.2 mph (5.0 m/s)
- Operational Envelope 0-135 mph (0-60 m/s)
- Bearings APEC 3 or better
- Temperature -40 to 160°F ( -40 to 70°C)
- Starting Threshold 1.1 mph (0.5 m/s)
- Relative Humidity 0-100%
- Mounting Pole 0.75" I.D. (1.9 cm)
- Signal Presentation frequency, pulsed output light chopper. The 20-slot disc produces the following linear repetition rate: 10 RPM = 1 MPH = 200 pulses/min.; 100 RPM = 10 MPH = 2,000 pulses/min.; 1000 RPM = 100 MPH = 20,000 pulses/min.
- Weight 1 lb. (0.45 kg) less cable
- Height 6.5" (16.5 cm)
- Cable 60`, 22 gauge 3 conductor
- Operating Range 0-100 mph
- Excitation +5.0 VDC @ 5 mA (typical) (other voltages available upon request)
- Distance Constant >16.5` (5.0 m)
- Cup Diameter 3.25" (8.25 cm)
- Cup Wheel Diameter 12.5" (32 cm)
- Finish Gold Anodized Aluminum
- Warranty 3 years
