The CMM Group products

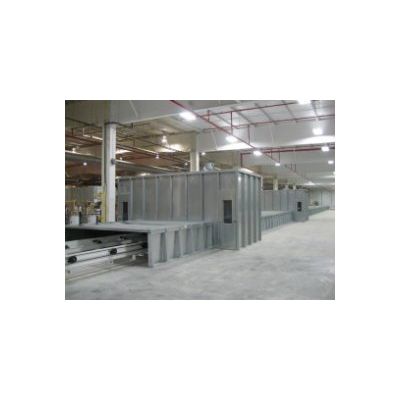

Ovens & Dryers

Custom designed ovens and dryers from The CMM Group are available in various models with a wide range of proven air-supply nozzle configurations to meet individual requirements. All designs are available in single or multi-zones with a variety of product support and/or carrier options depending upon the specific application.

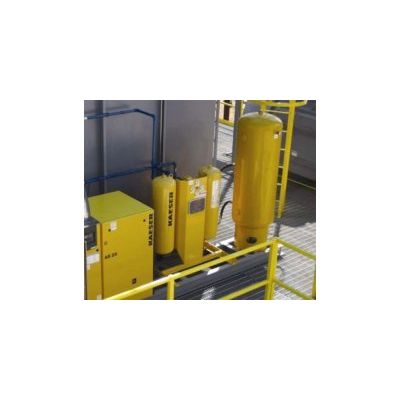

Ancillary Systems

The CMM Group designs and/or selects high-quality ancillary systems and components as part of our ability to provide customers with total turnkey installations. Both customer and plant component standards are considered in our design and selection of add-on devices to ensure documented, reliable performance, not only through project implementation, but throughout the life of a wide range of equipment.

Oxidizers from The CMM Group

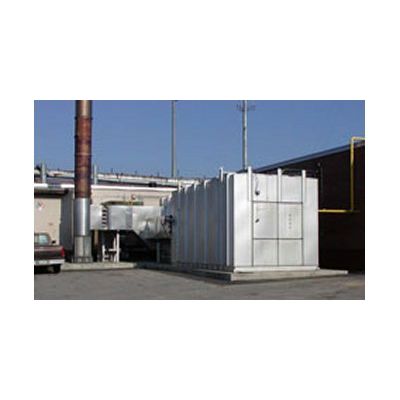

Regenerative Thermal Oxidizer (RTO)

Regenerative Thermal Oxidizers from The CMM Group are designed to destroy air pollutants emitted from process exhaust streams at temperatures ranging from 815 deg C (1,500 deg F) to 980 deg C (1,800 deg F). Regenerative Thermal Oxidizers use ceramic media packed into vertical canisters as a high-efficiency heat exchanger. Oxidation is achieved as pollutants pass through the ceramic media, are mixed, and held at elevated temperatures in the combustion chamber.

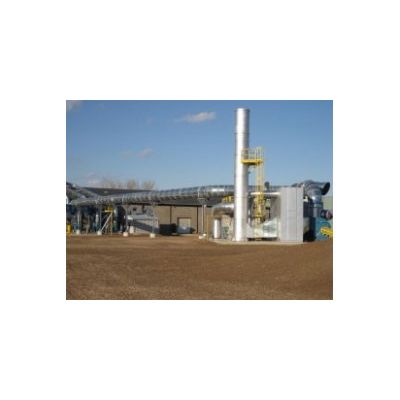

Thermal Recuperative Oxidizer

Thermal Recuperative Oxidizers (TOs) from The CMM Group destroy air pollutants emitted from process exhaust streams at temperatures ranging from 760 degrees C (1,400 degrees F) to 815 degrees C (1,500 degrees F). Thermal Recuperative Oxidizers utilize a multi-pass shell-and-tube type heat exchanger, which is fabricated of heavy-duty stainless steel. Oxidation is achieved as pollutants pass through the combustion chamber, are mixed and held at elevated temperatures in the combustion chamber.

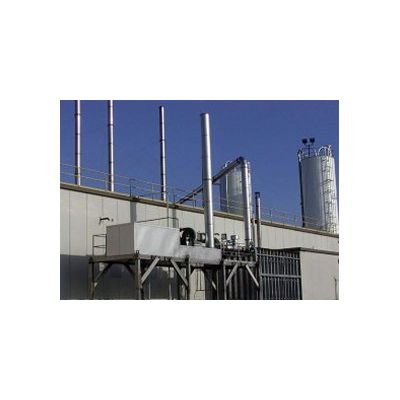

Catalytic Oxidizers

Catalytic Oxidizer Airflow Catalytic Oxidizers from The CMM Group are designed to destroy air pollutants emitted from process exhaust streams at temperatures ranging from 260 degrees C (500 degrees F) to 345 degrees C (650 degrees F). Catalytic oxidizers utilize a high-efficiency counter-flow plate type heat exchanger. Oxidation is achieved as pollutants pass through a heated bed of precious metal catalyst.

Rotary Concentrator and Thermal Oxidizer

Rotary Concentrator Systems from The CMM Group are hybrid air pollution control systems designed to efficiently remove and destroy air pollutants from a process exhaust air stream. The polluted air passes through a rotating wheel where the air pollutants are adsorbed onto a hydrophobic Zeolite media and then removed and destroyed by use of an oxidizer.
