The Eimco-KCP Ltd products

The EIMCO-K.C.P Fixed and floating mechanical surface aerators are available for any industrial waste treatment application.

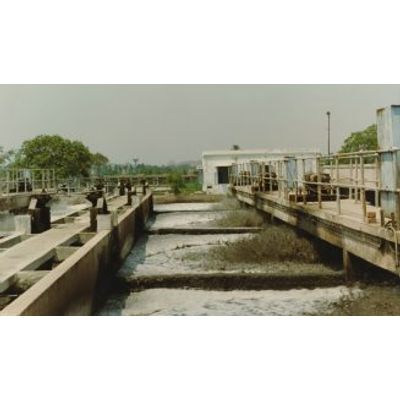

The EIMCO -K.C.P Aerator is a highly efficient mechanical surface aerator for transferring oxygen from the atmosphere into wastewater. At the same time it provides vigorous agitation and mixing in the water to disperse the oxygen and keep solids in suspension, it is used in the Waste Water Treatment application also.

EIMCO-K.C.P. Swing Lift thickeners are recommended for high scaling condition and to handle thixotropic solids. This design uses cables attached to a truss above or near the liquid surface to move the rake arms, which are hinged to the drive structure, allowing the rakes to be raised when excessive torque is encountered. A major advantage of this design is the relatively small surface area of the raking mechanism, which reduces the solids accumulation and downtime in applications in which scaling or island formation can occur.

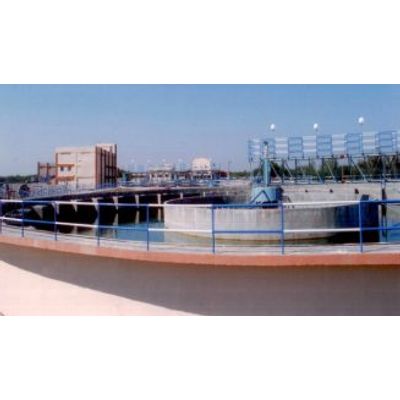

EIMCO-K.C.P.Circular Clarifier are the most common type of sedimentation basin used for separating suspended solids from liquids in the treatment of water, sewage, Industrial waste and industrial process.

Reactor Clarifier solids contact units allow several different design configurations (varying flocculation distribution, recirculation rates and rake torques) meeting even the most exacting standards for quality.

The drive head is the heart of the Thickener & Clarifier mechanism. The present design of The EIMCO-K.C.P. Drive heads is a result of careful study and experience gained over 50 years of operation in the Sedimentation Equipments operating in various Mineral Industries, Chemical Industries, Water Treatment Plants, Sewage and Effluent Treatment Plants under severe operating conditions.

EIMCO-K.C.P. Clariflocculators are combination of both flocculation as well as clarification. With this, the installation of plant becomes economical and faster. The Clariflocculation is a chemical and physical water treatment process and it mainly consists in the removal of suspended substances. Its application is in the water treatment of surface water, industrial and municipal wastewater treatment, filtration pre-treatment, both in the municipal and industrial sectors. The Clariflocculation allows the removal of organic compounds, Sedimenting particles and heavy metals.

EIMCO-K.C.P. Spiral Classifiers is art of separating the solid particles in a mixture of solids and liquid into fractions according to particle size or density by methods other than screening. In general, the products resulting are (1) a partially drained fraction containing the coarse material (called the underflow) and (2) a fine fraction along with the remaining portion of the liquid medium (called the overflow).

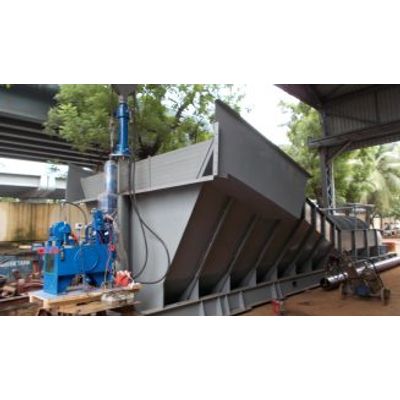

EIMCO-K.C.P. High volume Classifiers for treatment of industrial wastewater are designed to settle and dewater relatively coarse particles from high- volume, low-percent solid streams. They will make a separation of approximately 35 mesh at 5,000 GPM, and hydraulically transfer flow surges up to 10,000 GPM.

The EIMCO-K.C.P. Horizontal Vacuum Belt Filter has most of the operating capability of a bottom pickup vacuum filter… additionally, it has the operating flexibility to meet particular processing requirements some unique and exclusive capabilities – Simplicity of operation, and fluctuations, the ability to handle feed with low and high solids concentrations, and highly effective cake washing for increased product recoveries and profitability. EIMCO-K.C.P. offers the most reliable and efficient horizontal belt filters in the field. The designed system is applied for the separation of liquids and solids in various fields as listed below.

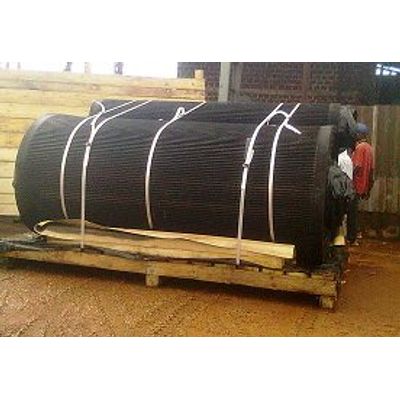

EIMCO-K.C.P. Continuous vacuum drum filters are designed to handle the broadest range of slurries of any filter. This permit drum filters to be used in a variety of applications.
