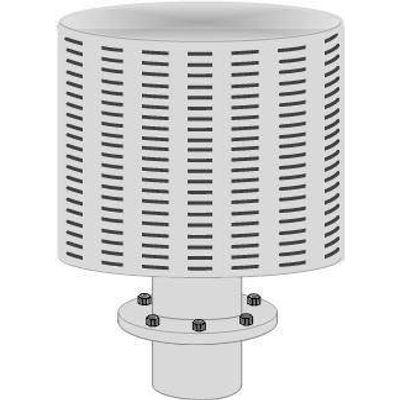

Drum style screens are available in sizes up to 48" in diameter. PVC or HDPE construction provides an inexpensive alternative to metal screens. Drum style screens are often used in installations where water current is slow. Slots on the screen can be perpendicular Thread as shown or parallel to the long axis of the screen. The intake pipe extends into the interior of the screen helping to equalize intake flows across the full length of the screen. .

Titan Intake Screens can be fabricated out of nearly any type of tube based plastic pipe. Materials such as PVC or HDPE are AWWA approved for potable water. HDPE is a plastic that has proven to be highly resistant to chemical and corrosive exposure. It is UV resistant, not subject to electrolysis and is a very "slick" material, making it an ideal screen where marine life growth on screens is a problem. HDPE has a very high impact strength, nearly impervious to cracking, even at freezing temperatures.

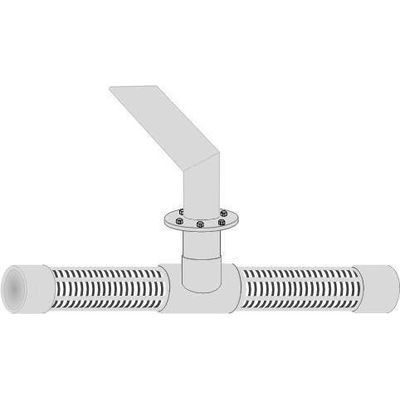

Tee shaped screens are commonly used for water intakes. Titan`s Tee shaped screens are available in many types of pipe based plastics. PVC, HDPE, Solid Core ABS and CPVC construction allow convenient use of standard fittings and joining methods. Plastic screens can be custom fabricated quickly and inexpensively. Titan`s extensive fabrication abilities and massive inventory enables us to react quickly to your needs. Virtually any type of slotted or round hole screen is available in many different styles.

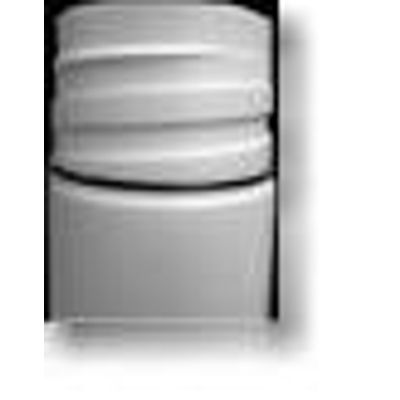

Titan`s flush threaded thermoplastic pipe provides a smooth inner and outer joint surface of the assembled pipe. Flush threads are cut on "state of the art" CNC machinery and are subject to Titan`s stringent quality control.

Slotted plastic pipe offers a number of advantages over typical round hole perforated systems. Often angular or rounded gravels and backfills can effectively block a significant percentage of a perforated holes open area, restricting it`s ability to collect. Slots are not easily plugged by these backfills allowing the superior open area of slotted pipe to lower intake velocities, reducing silting and the possibility of plugging.

Certain applications require a collection screen that has a superior tensile strength, some require a collection method that does not allow the smallest zone to be left without slot coverage. Titan`s Vertically slotted pipe was developed to fill these special needs.

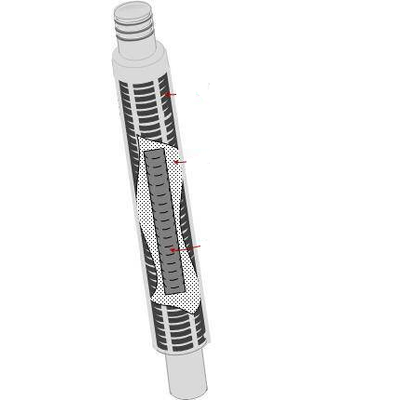

Many times unfavorable condition`s make it difficult to use conventional gravel or filter pack. That`s where Titan`s Twin-Pack Screens can provide a timely and cost effective solution. Titan`s Twin-Pack Screens utilize a screen within a screen and a uniform pack of filter sand in the annulus in between. This insures an effective gravel pack to prevent fine formation sediments from entering the well.

Titan Industries large diameter PVC screens are available in belled end, flush joint threaded ends and Certa-LokTM ends.

Titan`s SURE-DRAIN round hole perforated drainage pipe is available in a broad range of diameters, schedules and classes.  Sizes from 1/2` to 24` can be readily produced in wall thichnesses ranging from SDR 35 to SCH 80. A variety of thermoplastic pipe compounds can be used including PVC type I and II, ABS, CPVC, PTFE AND HDPE.

 Certa-Lok™ PVC Well Casing utilizes CertainTeed’s field-proven spline-locking design to form a full strength joint instantly in all weather conditions. No solvents, arc welding, or reinforcement screw attachments are required.
