Tornatech Inc. products

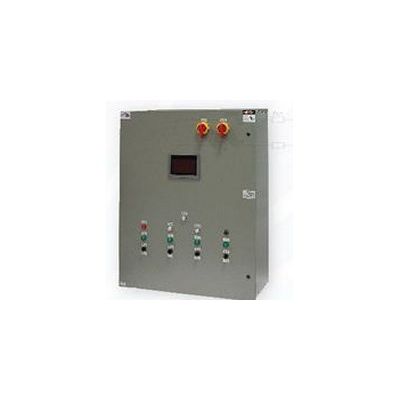

ViZiTouch touch screen operator interface. Embedded microcomputer with software PLC logic. 4.2” color touch screen (HMI technology)

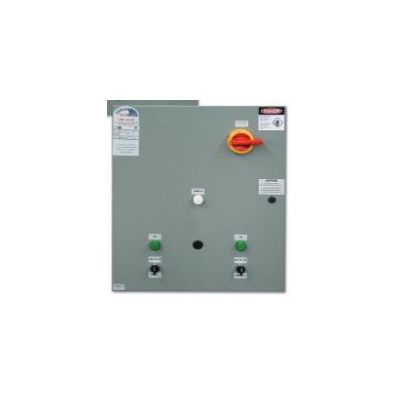

Sewage pump controllers are installed to automatically start and stop pump motor(s) in order to remove liquid accumulated in a sump pit or sewage lift station. Automatic level control is provided by start and stop float switches. Automatic alternation is provided on duplex and triplex sewage pump controllers. The completely assembled and wired controllers are factory tested before shipping. All components used in Tornatech sewage pump controllers are CSA listed and UL approved. Tornatech favors fuseless motor protection for easy field maintenance.

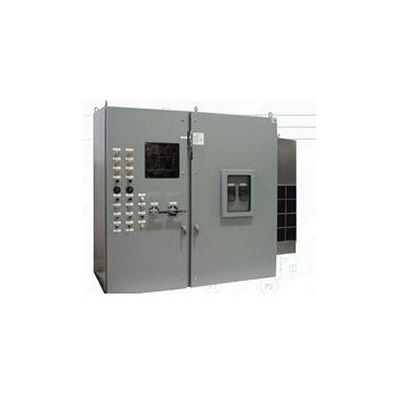

Booster pump controllers are installed to automatically start and stop pump motor(s) on system demand in order to maintain a constant pressure in a pressurized water supply system. System demand can be detected by pressure (standard) or current sensing (option). The completely assembled and wired controllers are factory tested before shipping. All components used in Tornatech booster pump controllers are CSA listed and UL approved. Tornatech favors fuseless motor protection for easy field maintenance.

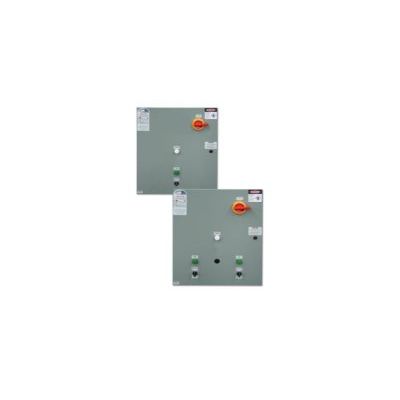

Condensate return pump controllers are installed to automatically start and stop pump motor(s) in order to remove liquid accumulated in a condensate return tank. Automatic level control is provided by start and stop float switch. Automatic alternation is provided as standard on duplex pump controllers. The completely assembled and wired controllers are factory tested before shipping. All components are CSA listed and UL approved. Tornatech favors fuseless motor protection for easy field maintenance.

Boiler feed pump controllers are installed to automatically start and stop pump motor(s) in order to provide water to a boiler. Automatic level control is provided by a start and stop float switch. Provisions for a low water cut off float switch, make up control float switch and solenoid valve are standard on both simplex and duplex units. The completely assembled and wired controllers are factory tested before shipping. All components used in Tornatech boiler feed pump controllers are CSA listed and UL approved. Tornatech favors fuseless motor protection for easy field maintenance.

Oil pump controllers are installed to automatically start and stop pump motor(s) in order to fill fuel day tanks for generators. Automatic level control is provided by start and stop float switch. A lead pump failure pilot light and a manual or automatic alternation selector switch is standard on the duplex units. The completely assembled and wired controllers are factory tested before shipping. All components used in Tornatech oil pump controllers are CSA listed and UL approved. Tornatech favors fuseless motor protection for easy field maintenance.

Regardless of the pumping application, our experienced engineering resources will listen to what you need and develop the solution to meet your individual specifications. We will work with you to develop a detailed quote and process control solution design.  The manufacturing phase includes developing bills of materials, design schematics and panel layout drawings.
