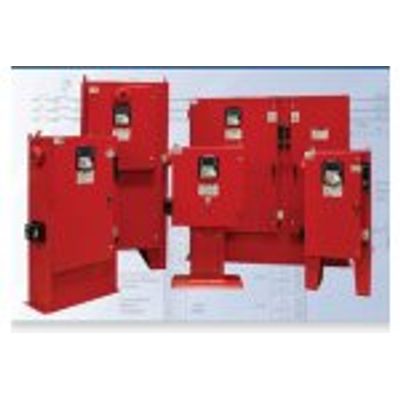

Model GPA -Electric Fire Pump Controller

• AC
• 120V/1ph/50-60hz
• 208V to 240V/1ph/50-60hz
• DC
• 12VDC
• 24VDC
• Grounding system: Negative
• Battery chargers
• Two independent fully automatic
• 10A continuous charge
• 500mA trickle charge
• Readings
• Electrical readings
• Battery (x2) voltage and amperage
• Charging mode
• Pressure readings
• Cut-in cut-out and continuous system pressure
• Alarm contacts for remote indication*
• Engine run
• Common controller trouble
• Common engine trouble
• Common pump room alarm (field re-assignable)
• H-O-A in OFF or HAND
• Free (field programmable)
• Visual and audible alarms*
• AC present
• Main switch in AUTO
• Battery  #1 & #2 failure
• Charger #1 & #2 failure
• Low oil pressure
• High engine temperature
• Overspeed
• Engine run
• Fail to start

Selector Switch

• HAND-OFF-AUTO
• Behind lockable and breakable cover

Manual Start

• Crank 1 and Crank 2 start pushbuttons
• Run test pushbutton
• Deluge valve start
• Remote start from manual device

Stopping

• Manual with Stop pushbutton
• Automatic after expiration of minimum run timer

Actuation

• Visual Indication
• Pressure
• Non-pressure

Automatic Start

• Start on pressure drop
• Remote start signal from automatic device

Crank Cycle

• 6 consecutive cycle attempts
• 3 X 15s crank from battery 1 or 2 alternatively
• 15s rest in between each crank

Timers

• Field Adjustable & Visual Countdown
• Minimum run timer (off delay)
• Sequential start timer (on delay)
• Periodic test timer attempt

Mode

• Visual Indication
• Automatic
• Non-automatic

Pressure Sensing

• Pressure transducer and run test solenoid valve assembly for fresh water application externally mounted with protective cover

Pressure and Event Recorder

• Pressure readings and event recording with date stamp
• Under regular maintained operation, events can be stored in memory for up to 5 years.
• Data viewable on operator interface display screen
• Downloadable by USB port to external memory device

Audible Alarm

• 4” alarm bell - 85 dB at 10ft. (3m)
• * For a complete list please see submittal packages
