Toshniwal Industries Pvt Ltd products

Temperature Measurement - Thermocouple & RTD

Resistance Temperature Detector

RTD stands for Resistance Temperature Detector. RTDs are sometimes referred to generally as resistance thermometers. An RTD is a temperature sensor which measures temperature using the principle that the resistance of a metal changes with temperature. In practice, an electrical current is transmitted through a piece of metal (the RTD element or resistor) located in proximity to the area where temperature is to be measured. The resistance value of the RTD element is then measured by an instrument. This resistance value is then correlated to temperature based upon the known resistance characteristics of the RTD element. We manufacture 2, 3 or 4 wire RTDs. Pt-100, Pt-1000 are the common types.

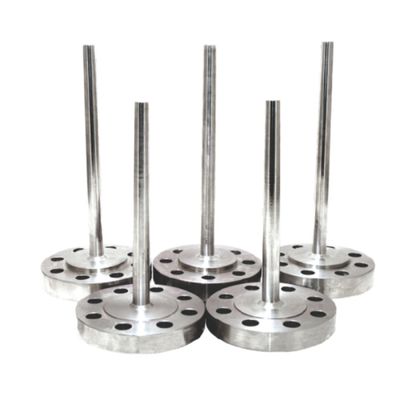

Thermowell

Thermowell is a closed-end reentrant tube designed for insertion of a temperature-sensing element, and provided with means for a pressure-tight attachment to a vessel. Thermowells are commonly classified according to their connection to a process. The most common types of thermowells are threaded, socket weld, weld-in, and flanged. TIPL manufactures Thermowells for all process requirements in accordance to customer requirements.

Thermocouple

A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. There are many types of thermocouples, each with its own unique characteristics in terms of temperature range, durability, vibration resistance, chemical resistance, and application compatibility. Type J, K, T, & E are “Base Metal” thermocouples, the most common types of thermocouples.Type R, S, and B thermocouples are “Noble Metal” thermocouples, which are used in high temperature applications

Temperature Transmitter

High accuracy (< 0.1% FS) and loaded with advanced functions, 2 wire technology,Universal input (RTD, thermocouple, Ohm, mV), Isolated / Non isolated, Linearisation (Temperature linear, Resistance linear, Voltage linear), Electromagnetic compatibility (EMC) according to IEC 61000-4-3, Galvanic Isolation 2 kV between Input & Output, Easy to install and reliable with unique design, Digital Filter & Sensor break protection, Excellent Long-term stability 0.05% of span/year, Sensor diagnostics & loop check-up, Communication Interface through USB/HART communicator.

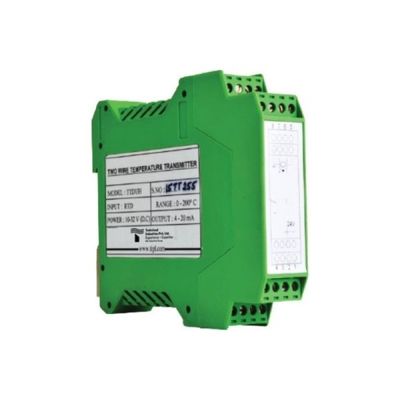

Din Rail Temperature Transmitter

Field Mounted Temperature Transmitter

High accuracy (< 0.1% FS) and loaded with advanced functions, 2 wire technology,Universal input (RTD, thermocouple, Ohm, mV), Isolated / Non isolated, Linearisation (Temperature linear, Resistance linear, Voltage linear), Electromagnetic compatibility (EMC) according to IEC 61000-4-3, Isolation upto 2kV between Input & Output, Easy to install and reliable with unique design, Digital Filter & Sensor break protection, Excellent Long-term stability 0.05% of span/year, Sensor diagnostics & loop check-up, Easy configuration and maintenance through push buttons, HART or Profibus Protocol

Portable IR Thermometer

IR Thermometer

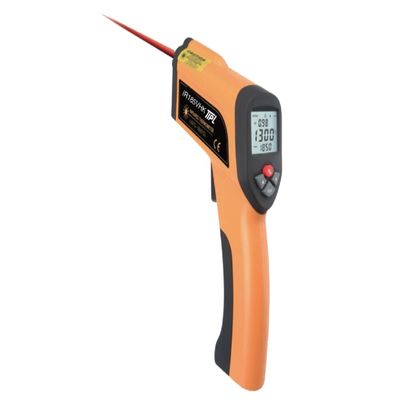

Portable Non-Contacted Infrared Thermometer IR185VHK is the ideal diagnostic tool for quick basic non contact temperature checks in applications even where a technician is far from the target object. This handheld portable tool enables maintenance professionals to research heating and ventilation problems , monitor the status of electrical motors, electrical panels electrical equipment, insulated walls and pipes, heating, ventilation and refrigeration systems, furnaces and klins, all from a safe distance. IR185VHK is also provided with a jack to connect a K type thermocouple with miniature connector for contact temperature measurement. A bead type K type probe with miniature plug is provided. Simple to the IR185VHK enables technicians to discover temperature discrepancies before they become problems.

Infrared Thermometer

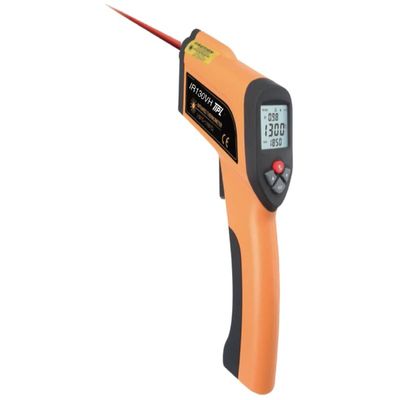

Portable Non-Contact Infrared Thermometer IR130VH is the ideal diagnostic tool for quick basic temperature checks in applications where a technician is close to the target object. This handheld portable tool enables maintenance professionals to research heating and ventilation problems, monitor the status of electrical motors, electrical panels electrical equipment, insulated walls and pipes, heating, ventilation and refrigeration systems all from a safe distance.

Infrared Thermometer

Portable Non-Contact Infrared Thermometer IR105VS is the ideal diagnostic tool for quick basic temperature checks in applications where a technician is close to the target object. This handheld portable tool enables maintenance professionals to research heating and ventilation problems, monitor the status of electrical motors, electrical panels electrical equipment, insulated walls and pipes, heating, ventilation and refrigeration systems all from a safe distance. Dual lasers converge to a single spot at 6" (156mm) to identify exact measuring spot of 0.5" (13mm). At other distances the two laser spots indicate approximately the diameter of spot being measured to ensure accuracy in measurement

Infrared Thermometer

Portable Non-Contact Infrared Thermometer IR65VS is the ideal diagnostic tool for quick basic temperature checks in applications where a technician is close to the target object. This handheld portable tool enables maintenance professionals to research heating and ventilation problems, monitor the status of electrical motors, electrical panels electrical equipment, insulated walls and pipes, heating, ventilation and refrigeration systems all from a safe distance. Dual lasers converge to a single spot at 6" (156mm) to identify exact measuring spot of 0.5" (13mm). At other distances the two laser spots indicate approximately the diameter of spot being measured to ensure accuracy in measurement
