TrigasDM products

Liquid Flowmeters - Turbine Flowmeters - Threaded Connection (An)

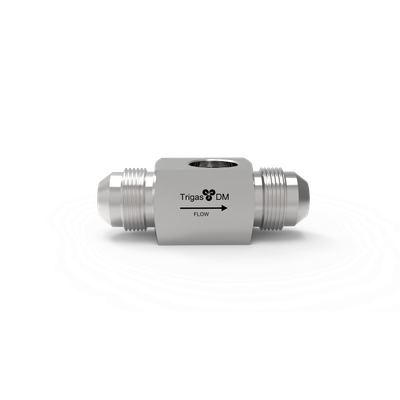

TrigasDM - Model DM2-8 AN | UP TO 5.5 L/MIN (1.5 GPM) - Trigasdm Turbine Flow Meters with Threaded Connection

TECHNICAL DATA: Linear Flow Range*: 0,5 l/min to 5 l/min (0.13 GPM to 1.3 GPM) Extended Flow Range*: 0,05 l/min to 5,5 l/min (0.013 GPM to 1.5 GPM) Operating Pressure: up to 540 bar Pressure Loss (at 70% linear flow): 0,08 bar Temperature Range: -270°C to 400°C (-454°F to 752°F)

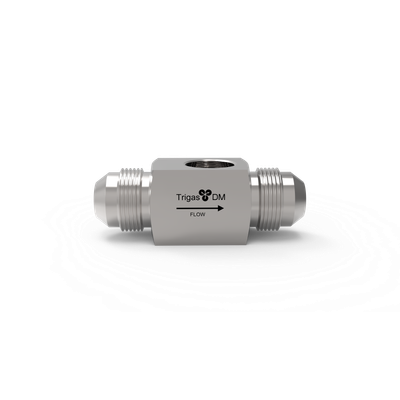

Model DM4-8 AN | UP TO 13 L/MIN (3.4 GPM) - Trigasdm Turbine Flow Meters With Threaded Connection

TECHNICAL DATA: Linear Flow Range*: 0,95 l/min to 12 l/min (0.25 GPM to 3.2 GPM). Extended Flow Range*: 0,1 l/min to 13 l/min (0.03 GPM to 3.4 GPM). Operating Pressure: up to 540 bar. Pressure Loss (at 70% linear flow): 0,19 bar. Temperature Range: -270°C to 400°C (-454°F to 752°F).

Gas Flow and Pressure Meters - Alicat Mass Flowmeters

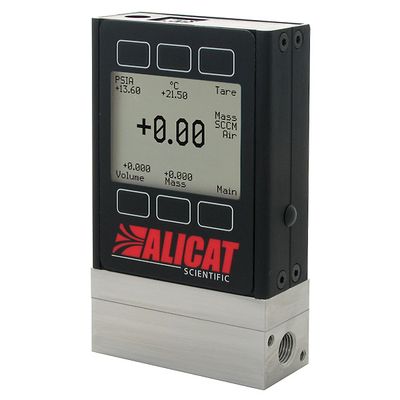

Model M Standard Series - Mass Flow Meter

The Alicat M-Series Mass Flow Meter is a digital / analog meter. It is an accurate, repeatable and customizable mass flowmeter suitable for a variety of applications. Our patented laminar flow technology provides very fast and linear mass flow measurement over a wide range of 200: 1 at flow rates of 2.5 microliters per minute to 5000 liters per minute.

Model Mw Low Pressure Drop Series - Mass Flow Meter

Minimize system impact while measuring mass flow! With pressure drops as low as 4 mbar (0.06 psid) at full-scale flows, mass flow meters in the Alicat “Whisper” Series enable flow measurement at near-atmospheric pressures, perfect for aerospace and environmental gas analysis applications. Max range: 0-500 slpm.

Hydrogen Metering Systems

Model GH2+ - Custody Transfer Metering System For Gaseous Hydrogen

The compact GH2+ system series was developed for measurement and accounting of highly compressed hydrogen transported in trailer vehicles. The flow measurement system stands out from competing systems due to its temperature-independent mass flow measurement and guarantees high accuracy and safety, thanks to its custody transfer certification. TrigasDM offers the GH2+ measurement chain for pressure levels of 200 and 300 bar. This will be expanded up to 970 bar to meet our customers’ requirements in regards of new high pressure technologies. A system cabinet, in- and outlet valve, pressure regulator, communication interface to the customer’s ERP system or the vehicle’s on-board unit are available as options.
