TRIOPTICS USA products

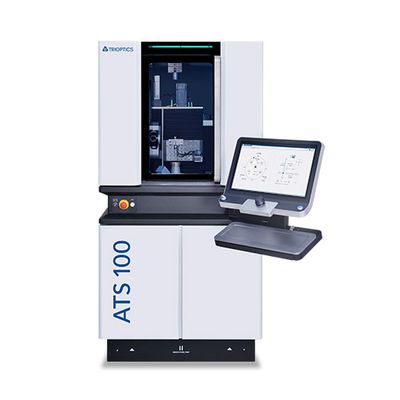

The ATS series from TRIOPTICS represents advanced machinery designed for high-precision centering, alignment, and machining of mounted lenses and lens groups. Utilizing the renowned OptiCentric® centration measurement system, these machines perform ultra-precise operations that align the mount's axis of symmetry with the optical axis of the lens, offering processing accuracies of better than 0.5 microns. The ATS series comprises different models catering to various requirements, including the ATS 100 for compact lens systems, ATS 200 for medium production, and the high-performing ATS 200 UP with hydrostatic bearing supports. The ATS 300 UP extends capabilities to larger lenses, up to 300 mm in diameter. For efficient production integration, the ATS-C features a CNC setup for swift operation. Integral to these machines is the ATS Control software, which facilitates measurement and alignment procedures with continuous monitoring for optimized production outcomes.

The CamTest series by TRIOPTICS offers a range of advanced technologies for the thorough performance testing of camera modules, critical in applications demanding precise image quality, such as in the automotive and surveillance industries. This suite of testing instruments allows for the evaluation of multiple optical and opto-mechanical parameters. CamTest systems are engineered to measure MTF, SFR, defocus, image plane tilt and rotation, distortion, OECF, dynamic range, white balance, and spectral response. The CamTest Smart system, notably compact, performs complete 100% testing on essential image quality characteristics, suitable for both R&D and flexible low to mid-volume production. With smart adaptability factors, such as easy calibration, various effective focal lengths, and robust industrial-grade design, the CamTest portfolio aids in aligning lens and camera modules accurately and with precision.

The Davidson D-275 Automatic Autocollimating Alignment Telescope (AAT) focuses from 40 cm to infinity, to align and measure the location and angular orientation of any number of targets along its optical axis.

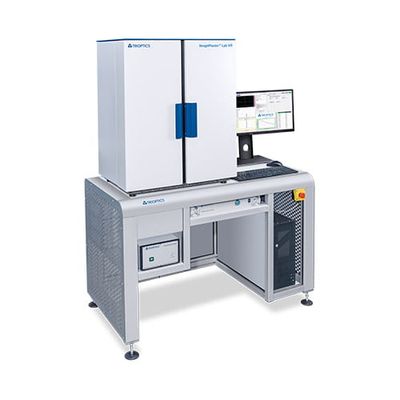

The ImageMaster Lab VR was specifically developed for the measurement and qualification of virtual reality lenses. Measurement for various pupil distances and sizes. On- and off-axis measurements allow testing of the entire field of view of the human eye. Eyebox Scanning.
