Turbo S.r.l. products

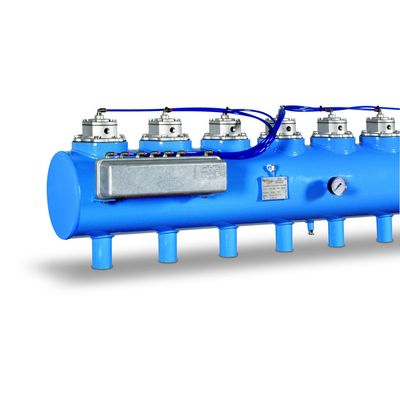

The Ø4” Integral series Global Immersion Header Tanks are designed with ½” DN valves, offering reliable performance in various immersion applications. These tanks are integral components in industrial systems requiring efficient thermal management. The 4-inch diameter ensures an optimal balance between size and capacity, catering to the need for reduced footprint while maintaining functionality. Constructed to meet high-quality standards, these header tanks are suitable for heavy-duty use and can withstand industrial environmental conditions. The design emphasizes durability and ease of integration into existing systems, making them a viable choice for professionals looking for robust immersion solutions. Technical specifications provide a focus on maximized operational efficiency and compatibility with a wide range of industrial fluids.

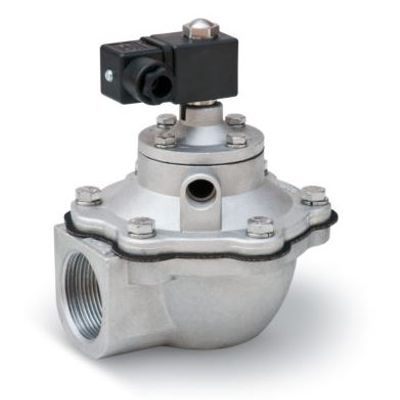

Pulse valves with threaded connections are essential components in various industrial pneumatic systems. These valves are designed to manage non-lubricated filtered air under specific temperature conditions, making them suitable for diverse operational environments. They are equipped with diaphragms made from materials such as neoprene, Viton, and low-temperature compatible compounds, operating efficiently within temperature ranges from -40°C to 200°C. The valves also handle pressures ranging from 0.5 to 7.5 Bar, supported by robust die-cast aluminum and stainless steel construction. The electrically operated pilot unit features coil insulation of Class H, providing durability and reliability. Standard voltages accommodate 24V/50-60Hz, 115V/50-60Hz, 230V/50-60Hz with power ratings up to 19VA, and a 24VDC option at 18W. These features ensure the valves can be effectively utilized in various settings requiring controlled airflow.

The RCP Short Distance is a pneumatic valve engineered to handle non-lubricated filtered air with an operating pressure ranging from 0.5 to 7.5 bar. It is crafted from die-cast aluminum for the cover and base, and incorporates stainless steel for the pilot unit, screws, and bolts, ensuring robust construction and long-term reliability. The valve is designed to operate efficiently within a temperature range of -20°C to +80°C, while an optional heating element allows for operation at temperatures as low as -40°C. The coil insulation is rated at Class H for high thermal endurance, and the unit is protected with an IP66 rating, indicating its suitability for challenging environments. Standard voltage options for the unit include 230 V, 110 V, and 24V in 50-60 Hz with a power usage of 19 VA, as well as 24 VDC at 20W.

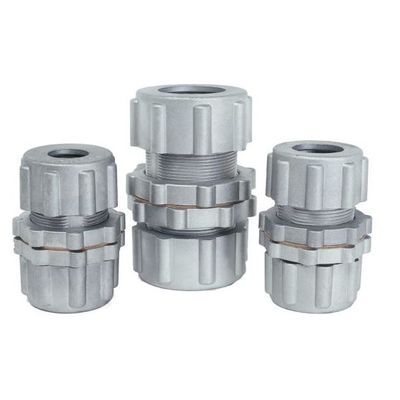

The bulkhead quick connections from Turbo S.r.l. are specifically engineered to facilitate the passage of blow tubes through filter walls in pneumatic systems without the need for welding or threading. The company offers two distinct series: the PD Series, designed for connecting two pipes, and the PS Series, which is developed for use with air cannons. These quick connections prioritize ease of assembly and reliability within pneumatic environments, ensuring efficient and secure pipe integration. Turbo also provides specially designed keys for fastening nuts and lock nuts to enhance operational security and ease. The use of these connectors is recommended exclusively in pneumatic applications and should not be employed as mechanical supports. This deliberate design focus enhances the effectiveness and safety of pneumatic installations.

Turbo S.r.l. specializes in the production and supply of industrial blow tubes, essential components used in various sectors for the efficient control of air and fluid systems. These blow tubes are engineered to withstand high pressure and temperature conditions, making them ideal for use in demanding environments where precision and reliability are critical. Their design ensures effective flow regulation, contributing to enhanced system performance and longevity. With a focus on durability and performance, Turbo S.r.l. utilizes advanced materials and cutting-edge manufacturing processes in the development of their blow tubes, ensuring they meet rigorous industry standards and provide consistent functionality in industrial applications.
