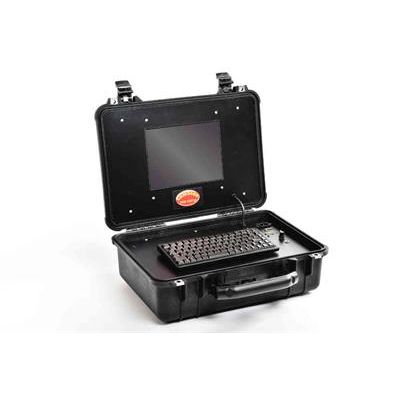

The CS550 features a 10.4` LCD Monitor and DVR recorder all contained within an extremely rugged case. The complete unit weighs only 12kgs, and features a strong carry handle, allowing easy transportation.

The unit features a 10.4` LCD Monitor, 35mm colour camera, 30m tough cable, and 2 protective skids. All of this is stored within a rugged, yet lightweight case, making the unit extremely portable, and easy to store. The unit can be powered by 100-230v ac, or by a cigarette lighter socket providing 12v. The unit may also be powered by a rechargeable battery pack (available seperately).

New to the CamScan range the CS550 has the ability to record to either a built in 60GB HDD or direct to USB memory stick

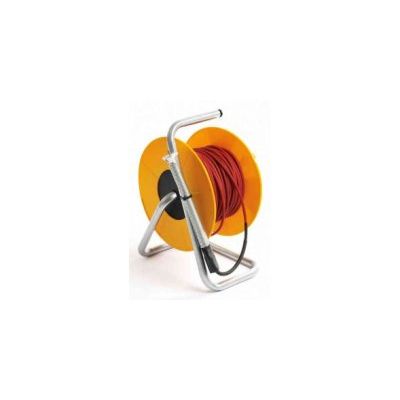

The CS103 contains 50m of soft cable mounted on a reel.  At one end of the reel, a lead spring, with PiPo connection and lockfast fitting, allows any camera from the CamScan range to be attached.  The lockfast fitting allows connection to either a set of drain rods, or a Cobra.  The reel itself features a standard CamScan socket, allowing it to be connected to any of our control boxes.

The CS126 is an 80m Fibreglass rod, with integral conductors, and lead spring which accepts all cameras from the CamScan range.With a diameter of 7.5mm the rod is flexible enough to negotiate bends in 100mm to 225mm pipes, while maintaining enough rigidity to push the camera. Despite the outstanding performance, the units legs fold in to minimze the the footprint in the van, and the complete unit weighs it at only 16kgs.

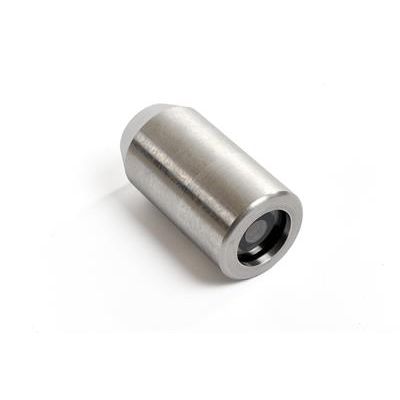

The CS172 35mm colour camera is suitable for use with all CamScan systems.

50mm "Horizon" self levelling camera, with aluminium body.

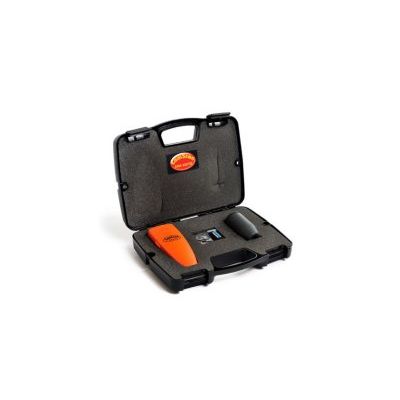

The CS125 Drain Tracer is a radio transmitter in a water proof housing which fits to the end of a lock fast drain road, or a Cobra.  It can be easily traced using the hand held receiver, which provides both audible and visual indicators. By using the `search` setting a row of LED`s and an audible signal will indicate how close the transmitter is within a 6m radius.  When you are within a 3m radius, switch to the `locate` setting, which provides a much more sensitive reading and will pinpoint the transmitter to within 300mm.  The depth of the transmitter will be displayed up to 6m depth. The Drain Tracer is accurate, economical, and an invaluable tool for locating and accurately estimating excavation work.

A replacement transmitter, suitable for use with the current generation of CS125 Drain Tracer.
