UltraViolet Devices, Inc. products

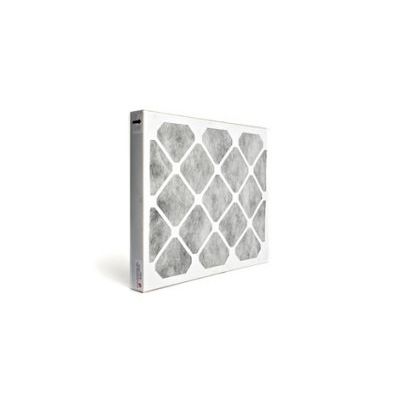

BPS LITE High Performance-Low Mass (HPLM) activated carbon filter is designed to efficiently remove a wide range of odors and common air pollutants at an economical initial installation cost. The high performance activated carbon has been optimized in both particle size and function to deliver top performance with minimal mass. The BPS LITE filter is suitable for use in commercial HVAC applications.

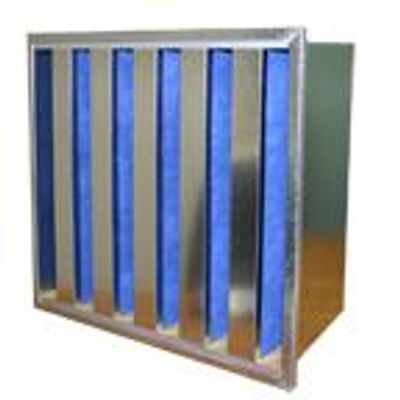

The BPS V-Bank activated carbon filter is designed to efficiently remove a wide range of odors and common airborne pollutants. Constructed of heavy duty galvanized steel, each module consists of two 1-inch thick BPS bonded carbon panels arranged in a V-configuration. The product is designed for use in most side and front access housings. The BPS V-Bank should be your choice for advanced chemical air filter technology for a variety of applications.

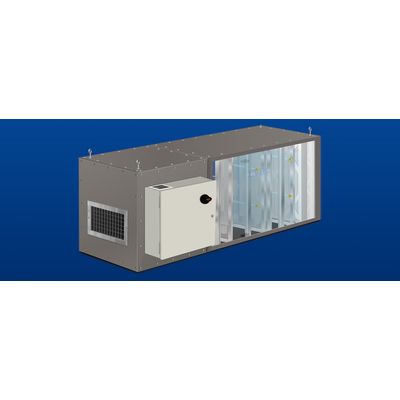

According to the EPA, poor Indoor Air Quality (IAQ) is one of the most urgent environmental risks to public health today. The majority of Americans spend approximately 90 percent of their time indoors (CDC) and IAQ directly impacts building occupant health. People frequently report building-related health symptoms and illnesses related to poor IAQ. Highly effective air contaminant removal combining UV-C and TiO2 creating powerful hydroxyl radicals. The V-PAC system utilizes a UV lamp and a titanium dioxide photo catalyst to create oxidants that destroy gaseous contaminants. When the photo catalyst is irradiated with UV light of a certain wavelength (254-365 nm), a photochemical reaction takes place and this reaction, called photo catalytic oxidation (PCO), converts organic pollutants into carbon dioxide and water. Pollutants, particularly VOCs, are preferentially adsorbed on a catalyst surface and oxidized in this process.

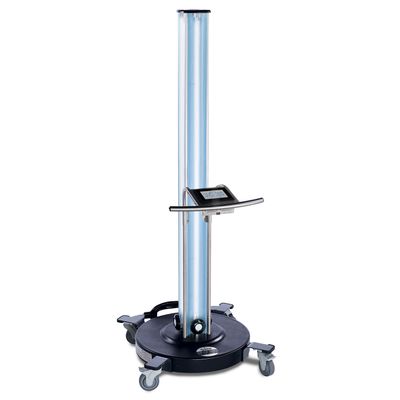

The UVDI-360 Room Sanitizer is independently proven in published clinical studies and independent laboratory testing to reduce Healthcare-associated Infections and to eliminate the highest-risk pathogens from surfaces.

Designed for flexible fixture mounting internally or externally on the duct; Designed for duct-mounting parallel to the airstream providing optimum UV exposure; Prewired lamp connection reduced installation time; Low power consumption with universal voltage; Available in 21”, 33”, 48” and 61” lamps.

Easy to install in existing and new equipment; Scalable design to meet any plenum size; Lamps can be easily mounted on vertical supports; Ballast is designed to easily mount in vertical support strut; Negligible pressure drop; Low power consumption with universal voltage; Available in 21", 33", 48" and 61" lamps.

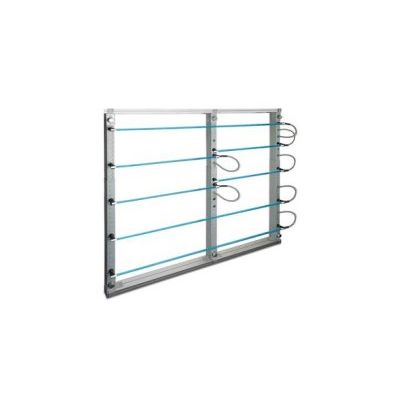

The V-RAY GRID mechanical support system consists of vertical supports and mounting hardware that can be easily adjusted for duct or plenum height. Snap-in lamp mounting clips can be inserted into knock-out holes within the vertical supports.

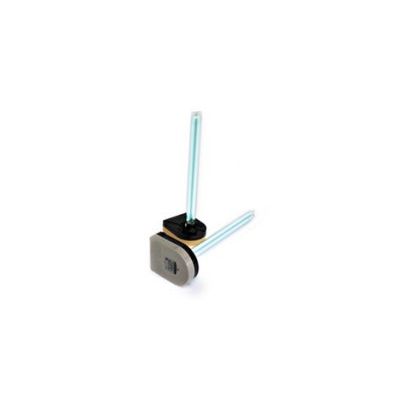

V-RAY SUS is designed for coil irradiation of small HVAC systems such as unit ventilator PTAC units, heat pumps and single room units where space is limited and low output UVC energy is sufficient to maintain coil and drain pan cleanliness. Common applications include resort and hospitality industry rooms and school classrooms.

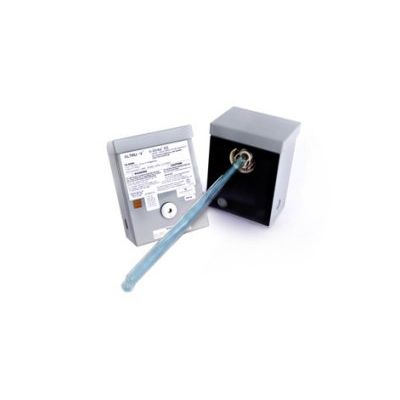

V-STRIKE delivers UVC energy through a supported lamp design, allowing for maximum flexibility in systems of up to 10 tons as either a side-mount or top-mount fixture. V-STRIKE installs easily into both `through the wall` or `roof-top` designs and can be used used in a open environment because the housing is virtually weather proof built and NEMA rated. V-STRIKE is an easy to install UVGI/UV-C system that will improve the performance and clean air delivery of your current HVAC system.

V-RES 36 delivers extreme UV cleaning power and is clinically proven to kill bacteria, molds, viruses and pathogens on or near the coil surfaces. Standard features include a safety switch to ensure no accidental UVC exposure and 36 watt bulb guaranteed for 1 year. Mathematically modeled application software validates the system to provide 99.99% kill of Influenza A virus within one hour with standard home re-circulation systems. V-RES 60 delivers maximum UV cleaning powert with a powerful 60 watt UV bulb killing bacteria, molds, and viruses on coil surfaces as well as in the airstream.
