U.S. Industrial Products Co. products

The portable toxic gas or combustible gases detector with audiol/visual alarms and meter display is ideal for confined space monitoring.  This piece of gas detection equipment is compact, light weight, and battery-operated. With built-in charger and Ni-Cad batteries allows the unit 10 hours of continuous operation.  The handheld gas monitor with the sensor (no mechanical pump) and 5 feet of wire provides local area gas measuring. Analog meter, or 4-digit large LCD digital display indicates PPM or % LEL. Shoulder held carrying case and instrument case are also included. 0-1 VDC output for data acquisition is optional.

The wall-mount toxic gas or combustible gases detector with audio/visual alarms and relay contacts provides continuous open/enclose space monitoring. This gas detection equipment basic unit has a detecting sensor and controller joining together. If necessary, remote sensor with explosion-proof junction box housing and 50 feet cable wire (longer length can be extended to 600 feet) connection are also available. The explosion proof sensor and housing are ideal for hazardous area monitoring and meet NEC requirements for Class I, Division I, Group A-B-C-D. All the models can provide either 4-20mA or 0-1 VDC output for data acquisition purpose, and PLC interfacing. Analog Meter indicates PPM or % LEL. Digital display use large Red LED is also available.

The gas monitor includes remote sensor(s) and controller in NEMA-4 enclosure for indoor, or outdoor installation.  Each sensor with explosion-proof junction box housing and 50 feet cable wire connects to the controller.  Each channel operates independently and indicates the concerned gas level at differnt sites and can be seen instantly.  Standard individual channel has Power GREEN LED, Alarm RED LED, Fail (Malfunction) YELLOW LED, and Meter display (PPM or % LEL).  Basic gas equipment detection unit has individual module, master module, and power module.  This design gives easy operation and replacement, if necessary for all your gas detection solution needs.

Audio Alarms: Low (pulse tone), High (steady tone). Panel Light Indicators: Power ON (green LED), Fail alarm (orange LED), Low alarm (yellow LED flashing), High alarm (red LED continuous). Panel Controllers: Zero, Span, Low & High alarm Set points, Low & High alarm settings Check switch, Reset (Latching or Non-latching at high alarm), Test switch. Relay Contacts (Individual channel): Fail Relay, Low Relay, High Relay, (NO, COM, NC 1A – 115VAC, or 1A – 24 VDC). Common Relay (2 channel or more system only): (NO, COM, NC 7A – 115VAC, 220 VAC, or 7A – 24 VDC).

Audio Alarms: Low (pulse tone), High (steady tone). Panel Light Indicators: Power ON (green LED). Fail alarm (orange LED). Low alarm (yellow LED flashing). High alarm (red LED continuous). Panel Controllers: ZHigh alarm Set points, Low and High alarm settings Check switch Reset (latching or Non-latching at high alarm). Test switch Relay Contacts (Individual channel): Fail Relay, Low Relay, High Relay. (NO, COM, NC 1A - 115 VAC, or 1A - 24 VDC). Common Relay: (NO, COM, NC 7A - 115 VAC, 220 VAC, or 7A - 24 VDC).

The monitor/detector unit includes sensor(s) and controller. US Industrial`s gas sensors offer very sensitive LOW PPM type or HIGH percent concentration *(% LEL) type. *(1% by volume is equivalent to 10,000 PPM).

Type: Catalytic diffusion type. Temperature Range: -10F to +150F (-20C to +65C). Humidity Range: 5 to 95% RH. Response Time:2 years at normal operation. Warm Up Time: 1 minute. Warranty: 1 year (normal operation).

Detecting Liquid: Most liquids. Response Time: 2 years. Warranty: 2 years (normal operation).

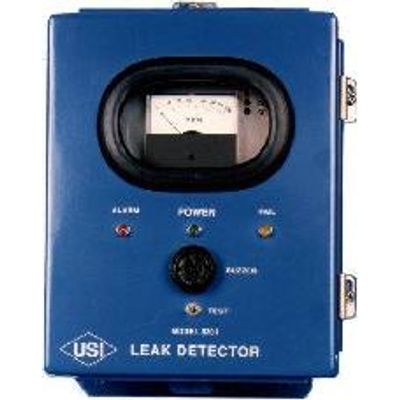

The continuous liquid leak detection monitor using either photoelectric sensor or level switch sensor can be in ABOVEGROUND or UNDERGROUND storage tank liquid leak detection system. Both type of sensors will detect any liquid such as water, fuels and solvents leakage and can be placed at the distance up to 4500 feet away from the controller. Each channel operates independently and contains a Green "power on" LED, a RED "alarm" LED and a Yellow "Fail" LED. The unique "fail" light will activate if the sensor fails. The monitor on this gas detection equipment provides audio/visual alarms and a 7 ampere NO/NC dry contact common master relay. Each individual channel is also equipped with a 7 ampere NO/NC dry contact relay itself. In any alarm status, the master and the affected channel (relays) activate simultaneously and can be used to activate the remote alarms or provide positive shutdown in the pump system in any case of leak detection.
