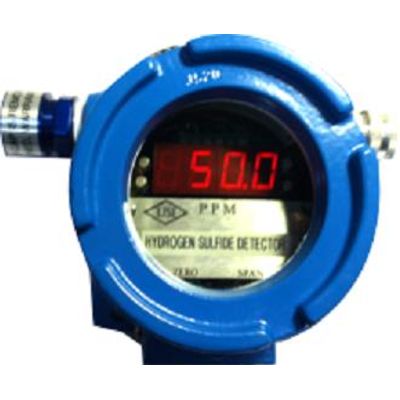

U S Industrial - Sensor Data Transmitter (SDT)

Audio Alarms: Low (pulse tone), High (steady tone). Panel Light Indicators: Power ON (green LED). Fail alarm (orange LED). Low alarm (yellow LED flashing). High alarm (red LED continuous). Panel Controllers: ZHigh alarm Set points, Low and High alarm settings Check switch Reset (latching or Non-latching at high alarm). Test switch Relay Contacts (Individual channel): Fail Relay, Low Relay, High Relay. (NO, COM, NC 1A - 115 VAC, or 1A - 24 VDC). Common Relay: (NO, COM, NC 7A - 115 VAC, 220 VAC, or 7A - 24 VDC).
