Vacuum Metrology Inc.
5 products found
Vacuum Metrology Inc. products
Vacuum Metrology Inc - Stationary Automatic Vacuum Calibration System
The AVCS3SD is an advanced stationary automatic calibration system designed for precise verification and calibration of various vacuum gauges across a wide pressure range from 1.3x10-3 to 1.3x10+5 Pa (1x10-5 to 1000 Torr). It accommodates multiple gauge types, including Capacitance Manometers, Pirani, Piezo, Cold and Hot Cathode gauges, in compliance with ISO 3567:2011(E) standards. The system features high-accuracy, NIST or PTB traceable transfer standards, achieving precision of ±0.025%, and operates within a temperature-controlled environment. It integrates an automated pressure and process control system, supported by a robust Calibration Management Software suite, enhancing conformity with ISO and industry standards. The construction includes a stainless steel chamber with multiple ports, a dual-stage pumping system, and a cleanroom-compatible frame. The AVCS automation uses a PC for GUI and process control, and an Allen Bradley PLC for operating vacuum hardware and pressure loops, ensuring reliable and efficient calibration processes.

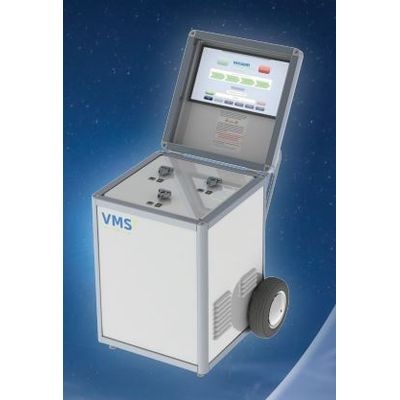

Vacuum Metrology Inc - Portable High Accuracy Automatic Calibration System
The VMS2HA is a portable, high accuracy automatic calibration system developed by Vacuum Metrology Systems. It's designed for onsite calibration of vacuum gauges across a range of industries such as semiconductor, pharmaceutical, and aerospace. The system integrates a Calibration Management Software suite, facilitating compliance with standards like ISO 90XX, ISO/IEC 17025, and ANSI Z540. It employs up to three high-accuracy NIST or PTB traceable vacuum transfer standards, featuring a basic accuracy of ±0.025%. The system’s repeatable control resolution can reach up to 0.01% of the set pressure point, ensuring precision. The VMS2HA accommodates existing transfer standards and is compatible with ISO-3567 requirements for vacuum gauge calibration. It offers automatic, semi-automatic, and manual operating modes, and includes a secure database for audit trails. Built to minimize temperature-induced uncertainties, it is suitable for cleanroom environments, operating within a pressure range from 1.3x10-3 to 1.3x10+5 Pa.
Vacuum Metrology Inc - Portable Standard Accuracy Automatic Calibration System
The VMS2SA is an entry-level, portable calibration system designed for the on-site calibration of vacuum gauges. Developed by Vacuum Metrology Systems, this system stems from rich expertise and client feedback garnered during the AVCS system's development. The VMS2SA's standout feature is its portability paired with precise, fully-automatic calibration capabilities. It encompasses a comprehensive Calibration Management Software suite, ensuring alignment with industry standards such as ISO 90XX, ISO/IEC 17025, and ANSI Z540. It utilizes up to three NIST or PTB traceable vacuum transfer standards, providing basic accuracy up to ±0.25%. Customizable standards coverage allows optimal precision across specific calibration pressure ranges. The advanced pressure control algorithm delivers repeatable resolutions up to 0.1% of the setpoint, with full compliance with ISO 3567. The VMS2SA supports various operating modes and offers robust data security, making it an ideal choice for precise and reliable vacuum gauge calibration.
Vacuum Metrology Inc - Portable Calibration System for Lyophilization Gauges
The VMS2Ph is a high-accuracy calibration system tailored for the pharmaceutical industry, specifically for the calibration of lyophilization gauges. Developed by Vacuum Metrology Systems, this portable unit is compliant with CFR Title 21, Part 11, offering automatic, semi-automatic, and manual modes. It comprises a robust Calibration Management Software that ensures the system meets ISO 9001, ISO/IEC 17025, and ANSI Z540 standards. It features up to three high-accuracy NIST or PTB traceable vacuum transfer standards, with a basic accuracy of up to ±0.025%. Its pressure control capabilities range from 1.3x10^-1 to 1.3x10^4 Pa, maintaining a resolution of 0.01% of the set point, enabled by a proprietary algorithm. The system also includes data security measures that provide secure databases to maintain a clear audit trail enhancing the VMS2Ph's reliability as a precise, traceable solution for pharmaceutical vacuum gauge calibration.
Vacuum Metrology Inc - Calibration System
Vacuum Metrology now offers to retrofit your manual PVS6E system into a state of the art automatic calibration system with all the capabilities of our flagship AVCS product. Give new life to an old system by drastically increasing productivity, repeatability and reliability. And save a lot of money in the process!
