4 products found
Vector Magnetics products
Vector Magnetics - Rotating Magnet Ranging System (RMRS) for Improved Drilling Accuracy
The Rotating Magnet Ranging System (RMRS) is an active magnetic ranging tool that offers independent proximity measurements which are free from the common inaccuracies seen in standard magnetic and gyro surveying methods. The system includes a compact magnetic sub positioned directly behind the drill bit that produces an AC magnetic waveform when the rig pumps are active and mud is flowing. This magnetic signal, detectable by sensors in adjacent wells or HDD pilot bores at distances over 300 feet, allows for early verification of target location, giving drillers ample time to adjust the trajectory. This technology makes it feasible to intersect casing as small as 4 inches in diameter without requiring expensive passby or sidetrack operations, thus saving rig time and minimizing project costs. RMRS is utilized across a variety of applications including salt, potash, and trona solution mining, coal bed methane extraction, and horizontal directional drilling (HDD) intersections. In solution mining, RMRS enables the connection of multiple caverns via a single horizontal production well, thus enhancing the economic viability of deposits. For coal bed methane, RMRS aids in efficient long wall mining by enabling precise connections and improved dewatering. In HDD, it allows for complex crossings under significant geographical obstacles.

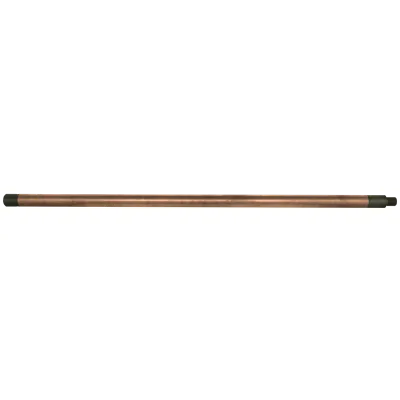

ParaTrack - Steering Tool for HDD Guidance
The ParaTrack Steering Tool by Vector Magnetics LLC is a fundamental component of the ParaTrack HDD Guidance System, providing centralized control for horizontal directional drilling (HDD) operations. Equipped with advanced magnetic and gravity sensors, this tool seamlessly integrates steering, tracking, surveying, and pressure logging into a single package. Data from various ParaTrack guidance sources are aggregated and transmitted to the surface for visual review and processing. With a robust design honed over two decades, the Steering Tool is built for durability and reliable performance even in extreme drilling environments. Compatible with a wide range of drill pipe sizes, it is field-proven and used globally in applications such as HDD pilot bore guidance. The Steering Tool represents a comprehensive solution for modern HDD operations, available through Inrock or Prime Horizontal dealers.
ParaTrack - ParaTrack AC Wire Guidance System for HDD
ParaTrack2 is a refined magnetic wire guidance system designed for Horizontal Directional Drilling (HDD). It provides rapid and precise tracking by converting AC mains power into a variable current AC waveform, which is driven through a guide wire. This process generates a robust magnetic field at frequencies below 10Hz, minimizing interference from nearby infrastructure and ensuring reliable survey verification in any setting. ParaTrack2 enhances HDD pilot bore accuracy by offering direct underground measurement to the drilling assembly, making it indispensable as drill lengths increase and profiles become more intricate. The system's reliability extends down to depths of 1500 feet, confirming the precision of pilot bore surveys. ParaTrack2 forms part of a comprehensive suite of HDD guidance tools, exclusively available through Inrock or Prime Horizontal dealers.
