Vertek a Division of ARA

32 products found

Vertek a Division of ARA Products

  • Other

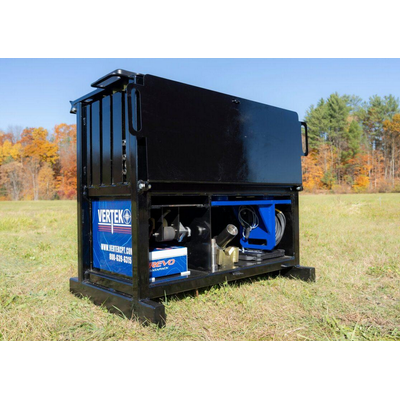

  • Vertek - Model S4 - Push System

    Vertek - Model S4 - Push System

    The S4 Push System Ensures Simple, Affordable Entry into the CPT Market. Increase your revenue opportunities and see ROI in about 40 days. Have you been thinking about the expanding into CPT, but are concerned about cost or complexity? Vertek’s S4 CPT Push System and highly experienced staff can get you into the market quickly and seamlessly. The S4 is a robust, yet very affordable push system that can be attached to any commercial skidsteer,...

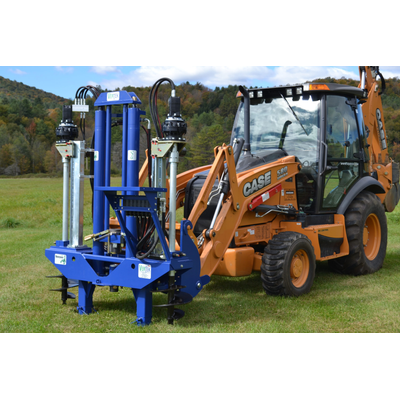

  • Vertek - Drill Rig CPT Adapter Kit

    Vertek - Drill Rig CPT Adapter Kit

    The drill rig CPT adapter kit allows drilling service providers conducting site characterization activities to conduct Cone Penetrometer Testing (CPT) with existing drilling equipment.

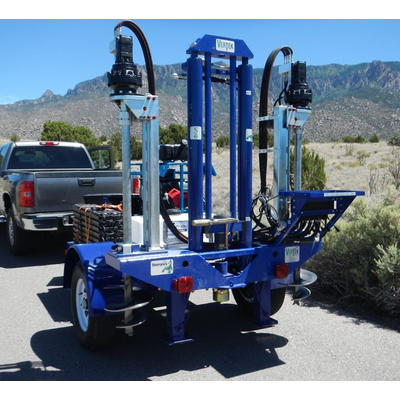

  • Vertek - Versatile CPT Push Systems

    Vertek - Versatile CPT Push Systems

    Our versatile CPT push systems are maneuverable, easy to set up and cost effective. These CPT push systems range in push force from 10 tons to 20 tons.

  • Vertek - Track Based CPT Push Systems

    Vertek - Track Based CPT Push Systems

    Our track based CPT push systems are robust, rugged and maneuverable. Our track rigs are designed for deep pushes in tough geologies and easy maneuverability over difficult terrains.

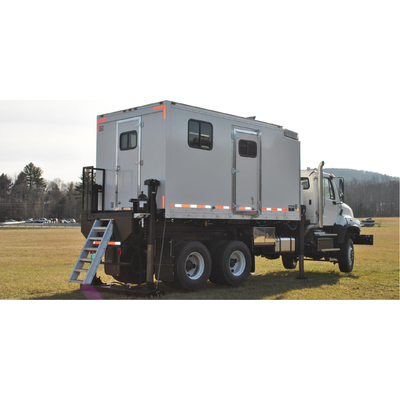

  • Vertek - Truck Based CPT Push Systems

    Vertek - Truck Based CPT Push Systems

    Our truck based CPT push systems are robust, rugged and have great maneuverability. Our CPT trucks are designed for deep pushes in tough geologies and easy maneuverability over difficult terrains.

  • Vertek CPT Rigs and Push Systems

  • Vertek - Model S4 - Push System

    Vertek - Model S4 - Push System

    The S4 Push System is outfitted for 10cm2 and 15cm2 diameter CPT products, provides 20 ton push capacity and includes mechanical rod clamp. Hydraulic supply hoses are standard quick connect for easy set-up and take down. Anchor system delivers up to seven feet of reaction depth and is deployable in minutes. The S4 attaches to variety of common equipment. Also available attached to custom trailer system.

  • Vertek - Model S4 - Mini-Track Rig

    Vertek - Model S4 - Mini-Track Rig

    Vertek’s S4 Mini-Track rig is the newest edition to our already robust line of self-powered CPT rigs. Vertek’s S4 Mini-Track rig is the newest edition to our already robust line of self-powered CPT rigs. As part of the S4 family of systems, the Mini-Track rig provides a powerful compact carrier at an affordable capital cost when compared to the cost of new construction equipment. The S4 combination gives you more options to meet your...

  • Vertek - Universal Push System

    Vertek - Universal Push System

    Vertek’s Universal Push system can be easily mounted on a wide range of platforms including barges, crawlers, trucks and trailers. The Universal Push System’s versatility enables access to push sites in rough or difficult terrain as well as making it easy to transport in urban work areas. The Universal Push System is built for heavy use and is equipped with easy to use lever controls and quick power unit connections.

  • Vertek - Light CPT Platforms

    Vertek - Light CPT Platforms

    The 10 Ton Portable Cone Penetrometer (CPT) hydraulic load frame is the lightest, most portable hydraulic CPT unit available. The hydraulic power pack and the hydraulic cylinders are independent and coupled by hydraulic quick disconnects. The aluminum twin cylinders and power pack weigh only 195 kg (430 lbs) and 160 kg (355 lbs) respectively. They are designed so that the handle weight is less than 10 kg (25 lbs) when tilted for travel. The large...

  • Vertek - Heavy Weight CPT Truck

    Vertek - Heavy Weight CPT Truck

    Our Heavy CPT Truck is designed for maximum production and deep investigations offering 20 to 40 tons of push force and ample workspace. It can be fully enclosed and climate controlled for operation in any weather. The hydraulic leveling system provides rapid setup once on site. We build our Heavy CPT Trucks on a number of different models specified by the customer.

  • Vertek - Medium Weight CPT Truck

    Vertek - Medium Weight CPT Truck

    The Medium CPT Truck is capable of applying 15 tons of push force without anchoring. This system offers similar features as the Heavy CPT Truck but in a more mobile size. It can be fully enclosed and climate controlled for operation in any weather. We build our Medium CPT Trucks on a number of different models specified by the customer including an all-terrain platform. The hydraulic leveling system provides rapid setup once on site.

  • Vertek - Light Weight CPT Truck

    Vertek - Light Weight CPT Truck

    Vertek Light CPT trucks are designed to be an economical platform for obtaining CPT data. Because of the Light Truck's small size, it does not require special permits, licenses, or increased insurance costs. In most states and counties it can be licensed as a pickup truck. The combination of small size and light weight makes it easy to access tight spots while providing economical operation and maintenance. The Light CPT truck is furnished with an...

  • Vertek - CPT Track Rigs

    Vertek - CPT Track Rigs

    Vertek manufactures a full line of all-terrain, self-propelled CPT rigs for difficult to access areas offering 15 to 30 tons of push force. Our CPT platforms provide ample work area in an enclosed or open-air design. Track Rigs can be tele-operated or controlled via the existing driving station.

  • Vertek - Speed Lock Rods

    Vertek - Speed Lock Rods

    Unsurpassed Strength - Vertek manufactures a full line of CPT push rods with our proprietary Speed Lock dual-lead thread design. Speed Lock Rods provide unsurpassed joint strength- up to 50% stronger than industry standard Vthreads. Our unique rope thread design uses less of the available wall thickness and balances the strength between the male and female thread ends. In fact, aSpeed Lock coupled joint achieves nearly 90% of the strength of the heat...

  • VTK Series CPT Equipment

  • Vertek - Model DataPack 2010 - CPT Data Acquisition Unit

    Vertek - Model DataPack 2010 - CPT Data Acquisition Unit

    Vertek’s DataPack 2010 is a field portable Cone Penetrometer Test (CPT) data acquisition and analysis package combining the capabilities of our digital CPT cones, the FFD (Fuel Fluorescence Detector) probes, seismic geophone equipped cones, and other specialized Vertek probes. Developed as a simple ‘all-in-one’ solution for the Geotechnical and Environmental CPT service providers, this version incorporates USB for ease of...

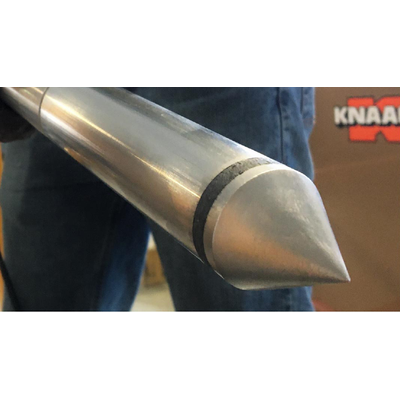

  • Vertek - Model VTK 10cm2 - Digital Cone

    Vertek - Model VTK 10cm2 - Digital Cone

    Rugged and Reliable Vertek’s Digital Cones provide simple, easy-to-use CPT measurements in a compact system. Since analog-to-digital conversion is preformed downhole, the bulkiness of cabling and uphole electronics are reduced, and noise problems associated with cable length and low voltage signals of analog systems are eliminated. Vertek’s 10 conductor cable with LEMO type connectors ensures reliable data transmission with each...

  • Vertek - Model VTK 15cm2 - Digital Cone

    Vertek - Model VTK 15cm2 - Digital Cone

    Rugged and Reliable - Vertek’s Digital Cones provide simple, easyto-use CPT measurements in a compact system. Since analog-to-digital conversion is preformed downhole, the bulkiness of cabling and uphole electronics are reduced, and noise problems associated with cable length and low voltage signals of analog systems are eliminated. Vertek’s 10 conductor cable with LEMO type connectors ensures reliable data transmission with each...

  • Vertek - Model SMRT - Soil Moisture, Resistivity and Temperature Module

    Vertek - Model SMRT - Soil Moisture, Resistivity and Temperature Module

    Soil Moisture/ Resistivity – Soil moisture, or the volumetric percentage of water in soil, has become an important consideration in the design of environmental re mediation processes and agricultural planning, and it is one of the most fundamental factors influencing soil strength. VERTEK’s Soil Moisture/Resistivity (SMR) Module provides real-time, in-situ logs of soil moisture and resistivity without sampling.

  • Vertek - Model VTK - Solid State Video Module System

    Vertek - Model VTK - Solid State Video Module System

    Contamination Confirmation Visual In-Situ Screening Vertek’s Video Module provides a view of the soil in real time, allowing the user to visually detect or confirm the presence of subsurface contaminants (hydrocarbons, NAPL) and sedimentary structures. The Video Module also shows soil texture, grain size, color, moisture and other features, reducing the need for expensive and time consuming soil sampling. Merging our existing hydrocarbon...

  • Vertek - Model VTK 8cm2 - Digital Cone

    Vertek - Model VTK 8cm2 - Digital Cone

    This specialized light duty cone is designed for shallow investigations typically associated with agricultural, education and laboratory controlled tests. The operator can achieve combined data collection inclusive of geotechnical properties and SMRT measurements in a single integrated probe. Communicates with a specialized data pack.

  • Vertek ConeSipper - Simultaneous In-line Sampling Module

    Vertek ConeSipper - Simultaneous In-line Sampling Module

    Simultaneous In-line Sampling -The Vertek ConeSipper module attaches directly behind a standard CPT cone to obtain gas or water samples as the CPT probe is advanced, saving substantial money and time by eliminating duplicate soundings. Developed and patented by Westinghouse Savannah River Corporation (WSRC) and Applied Research Associates, Inc., the ConeSipper is manufactured by Vertek under an exclusive license to WSRC.

  • Vertek - Modular Soil Sampler

    Vertek - Modular Soil Sampler

    Vertek’s patented Soil Sampler is built for reliable, cost-effective retrieval of soil samples in difficult geologies and is designed to be deployed by most common CPT equipment.

  • Vertek - Grouting Tools and Cone

    Vertek - Grouting Tools and Cone

    To meet the growing needs of various contractors and state and federal agencies Vcrtck offers our self grouting tools which allow grouting of CPT holes while removing the rods. Vertek offers two types of grouting tools to fit your needs.

  • HT Series CPT Equipment

  • Vertek - Model HT DataPack - Portable Cone Penetrometer Test (CPT)

    Vertek - Model HT DataPack - Portable Cone Penetrometer Test (CPT)

    The HT DataPack is a field portable Cone Penetrometer Test (CPT) data acquisition and analysis package which works with all digital HT cones. Developed as a simple ‘all-in-one’ solution for the Geotechnical CPT service providers, this version incorporates USB for ease of connectivity.

  • Vertek - Model HT 10 cm²  - Digital Electronic Cone

    Vertek - Model HT 10 cm² - Digital Electronic Cone

    The digital electronic 10 cm2 cone is designed to address the accuracy, sensitivity and durability problems inherent in other cone designs of the same or lower capacity. This cone provides excellent data for softer materials and provides excellent resolution in most materials. This cone has a 10 square centimeter tip. The cone consists of two strain guage transducers, with the cone electronics packaged directly behind the transducers. In all...

  • Vertek - Model HT 15 cm2 - Digital Electronic Digital Cone

    Vertek - Model HT 15 cm2 - Digital Electronic Digital Cone

    The digital electronic 15cm2  cone is designed to address the accuracy, sensitivity and durability problems inherent in other cone designs of the same of lower capacity. The Cones consist of two strain gauge transducers, with the cone electronics packaged directly behind the transducers. The cone channels are temperature compensated to provide stable readings during testing. The cone tip, sleeve (local friction element), and pore pressure element...

  • Vertek - Model HT Series - Electric Conductivity (Resistivity) Module

    Vertek - Model HT Series - Electric Conductivity (Resistivity) Module

    The HT Series Resistivity Module combines the standard CPT measurements: tip, local friction, inclination and pore water pressure with electrical measurements of the soil. The combination of these parameters provides comprehensive information useful in determining the stratigraphy of the soil and the location of potential ground water problems in one test. Groundwater problems could include corrosive soils, salt water intrusion or environmental...

  • Vertek DCP/ADCP Equipment

  • Vertek - Model DCP-DAS - DCP Data Acquisition System

    Vertek - Model DCP-DAS - DCP Data Acquisition System

    Accurate and Simple Data Acquisition. Vertek’s DCP Data Acquisition System (DCP-DAS) is designed to operate with the Dynamic Cone Penetrometer (DCP) via our Android application, automatically measuring and recording the depth of penetration and number of drops, for evaluation of the in situ strength of sub-grade materials. DCP-DAS data is recorded in an electronic format that can be easily downloaded to a computer for further analysis. Manual...

  • Vertek - Model ADCP - Automated Dynamic Cone Penetrometer System

    Vertek - Model ADCP - Automated Dynamic Cone Penetrometer System

    Vertek’s Automated Dynamic Cone Penetrometer (ADCP) system is equipped with automatically switched lift/drop mechanism and Windows-based Data Acquisition System (DAS), providing an accurate, fast, and efficient test method for evaluating in-situ conditions of new and existing highway and airfield pavements as well as quality control of new pavement construction.

  • Fuel Fluorescence Detection Equipment

  • Vertek - Model FFD - In-Situ Fuel Fluorescence Detector

    Vertek - Model FFD - In-Situ Fuel Fluorescence Detector

    Vertek’s In-Situ Fuel Fluorescence Detector (FFD) measures fluorescence produced by aromatic hydrocarbons when excited by ultraviolet (UV) light. This tool is designed to screen and define subsurface plumes and provide discrete depths for soil and groundwater sampling. Vertek’s FFD significantly reduces the time required to detect and characterize hydrocarbon fuels and volatile organic compounds (VOCs). The FFD probe system generates...
