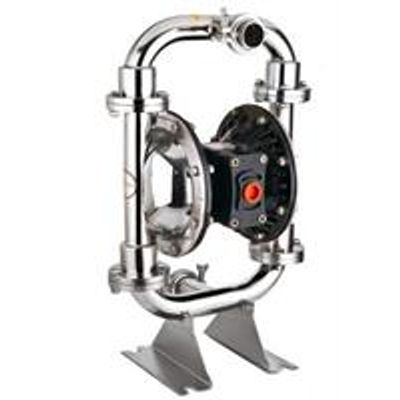

Capacity 55 lt/dk. Intake/Dıscharge siz 3/4". Main Body Aluminium-Cast iron-Cast Stainless Steel-Sheet Metal(hygienic). Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valvese Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Teflon. Air İnlet Size 1/4". Solids-Handling 3mm. Suction Depth 6m. Operating Pressure (Max.) 7 bar. Delivery Height (Max.) 70 m. Operation Temperature -18 / + 1000C.

Capacity 150 lt/dk. Intake/Dıscharge siz 1". Main Body Aluminium-Cast iron-Cast Stainless Steel-Sheet Metal(hygienic). Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valvese Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Air Ä°nlet Size 1/2". Solids-Handling 4mm. Suction Depth 6m. Operating Pressure (Max.) 7 bar. Delivery Height (Max.) 70 m.  Operation Temperature -18 / + 1000C.

Capacity 400 lt/dk. Intake/Dıscharge siz 1 1/2". Main Body Aluminium-Cast iron-Cast Stainless Steel-Sheet Metal(hygienic).  Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valvese Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Air Ä°nlet Size 3/4". Solids-Handling 6m. Suction Depth 6m. Operating Pressure (Max.) 7 bar. Delivery Height (Max.) 70 m. Operation Temperature -18 / + 1000C.

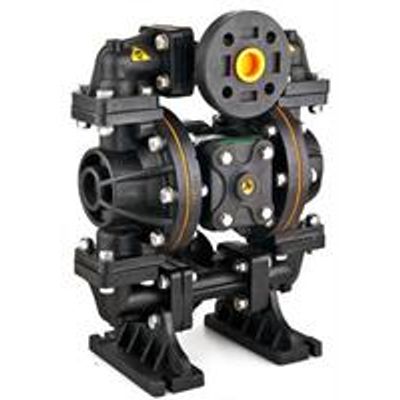

Capacity 16 lt/min. Intake/Dıscharge siz 1/4". Main Body Polypropylene-PVDF. Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valvese Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Teflon. Air İnlet Size 1/4". Solids-Handling 1mm. Suction Depth 1m-1,5m. Operating Pressure (Max.) 7 bar. Delivery Height (Max.) 70 m. Operation Temperature -18 / + 1000C.

Capacity 55 lt/min. Intake/Dıscharge siz 3/4". Main Body Polypropylene-Polypropylene Black-PVDF. Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valvese Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Air İnlet Size 1/4". Solids-Handling 3mm. Suction Depth 6m. Operating Pressure (Max.) 7 bar. Delivery Height (Max.) 70 m. Operation Temperature -18 / + 1000C.

Capacity 150 lt/min. Intake/Dıscharge siz 1". Main Body Polypropylene-Polypropylene Black-PVDF. Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valves Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Air Ä°nlet Size 1/2". Solids-Handling 4mm. Suction Depth 6m. Operating Pressure Max.  7 bar .

Capacity 400 lt/min. Intake/Dıscharge siz 1 1/2". Main Body Polypropylene-Polypropylene Black-PVDF. Diaphragms Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Valves Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton. Ball Seats Santoprene-Neoprene-Buna`N-EPDM-Teflon-Viton.  Air Ä°nlet Size 3/4". Solids-Handling 6mm. Suction Depth 6m. Operating Pressure Max. 7 bar.

It is intended for pumping clean of very slightly polluted, low vicosity liquids without solid particles fibers and abrasives.

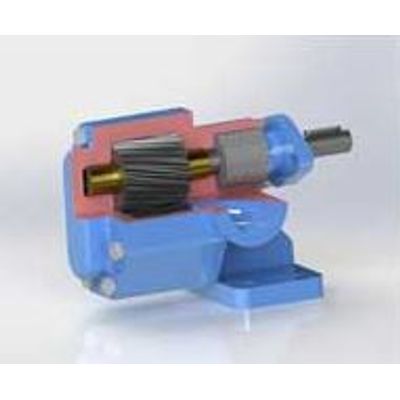

Gear Pumps are comprised of a fixed casing two (2) or more meshing gears of equal size. Normally one gear is coupled to the drive shaft while the other rums as an idler. The inderaction of the meshing gears and close tolarance of the casing, create the vacuum and the pressure which carry the fluid through the pump. Gear pump are usually bidirectional an produce no pulsation. The fluid being pumped lubricates the close tolerance wear surfaces, therefore this unit should not be allowed to run dr yor be used with abrasive laden liquids.

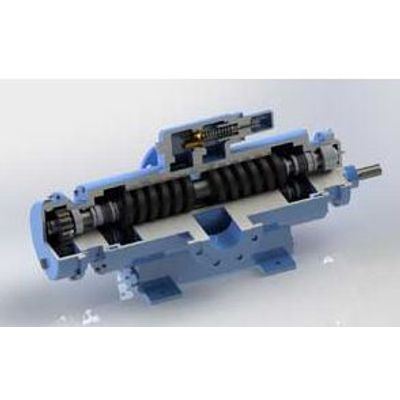

Self-priming rotary displacement pumps in a compact range with external bearings without touching medium. Due to external timing gears there is not metal –to-metal contact with the between screw . Regarding to our design, the pump makes suction from four points Liquid by screws carry towards the pressure side. Provides a pulsing flow of the pump is running. Hydraulic axial loads balanced to zero.
