511 is Viatran`s state of the art hammer union pressure transmitter with industry exclusive features that were developed in direct response to requests from the field. Included in these features is a voltage powered shunt cal, ability to calibrate and track pressure spikes using HART Communicators or DevCom2000-Lite software and packaged in a patented* housing which can withstand extreme vibration and abusive impact and still perform to specification.

4-20 mA output, 2" 2002 fitting. 521 is Viatran`s state of the art hammer union pressure transmitter with industry exclusive features that were developed in direct response to requests from the field. Included in these features is a voltage powered shunt cal, ability to calibrate and track pressure spikes using HART software and packaged in a patented housing which can withstand extreme vibration and abusive impact and still perform to specification.

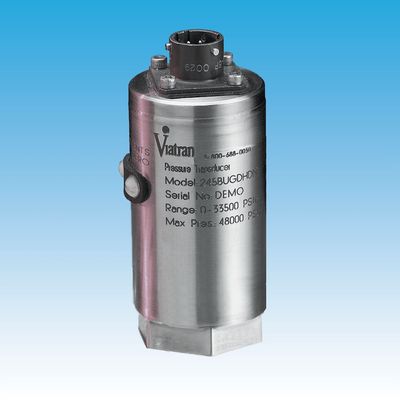

Viatran`s Model 245 High Range pressure sensor is among our most accurate pressure transmitters for industrial test and research applications at higher pressures. Improved accuracies are available, as well as improved temperature performance. 0-7500 thru 100K psi, 0-5Vdc output, 0.15% accuracy.

570 provides a rugged, sealed solution for hazardous rated and harsh environments. 4-20 mA, 0-100 psi thru 100K psi, Hazardous Approvals.

The Model 385 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 5x proof pressure and 20x burst pressure. 5x proof, 4-20 mA output, Blender Pressure Measurement

The Model 590 Detachable Level Transmitter allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC and FEP cables are also available. 590/591 have the deepest level rating at 835`. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock. 0-40" thru 835` WC, PUR Cable Standard, Stainless Steel Sensor and Housing.

The Model 591 Detachable Level Transmitter is similar to the 590, but provides a higher accuracy solution. Detachable design allows for a quick sensor swap without the removal of the installed polyurethane standard cable. PVC and FEP cables are also available. 590/591 have the deepest level rating at 835`. Sensor head and/or cable can be ordered separately. A complete range of accessories for use in level applications are available, many from stock. 0-40" thru 835` WC, High Accuracy, PUR Cable Standard, Stainless Steel Sensor and Housing.

The Model 386 Flush Tip – Zero Cavity design offers an Isolated sensor assembly that virtually eliminates installation torque effect and is able to withstand pressure spikes up to 1.5x proof pressure and 5x burst pressure (or 30,000 PSI, whichever is less).

Low Range Differential Pressure, 1000 psi line Pressure. Viatran’s “74” Series differential pressure transmitters are extremely accurate and durable units, designed specifically for test applications. The variable capacitance sensing technology provides extremely high overpressure protection, and long range stability, as well as high accuracy of 0.15% BFSL.
