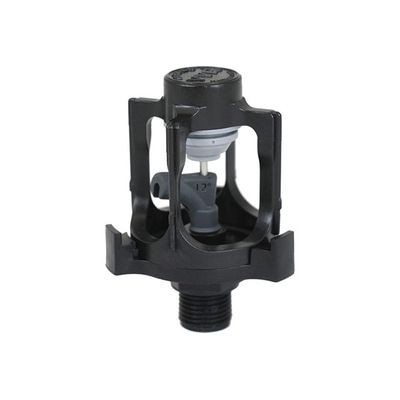

The model ROTEC VYR-4000 LA is a rotary sprinkler with silicone brake technology , inlet of 1/2" male and with a wide number of configurations depending on the different assembly options: MOTOR: 2 versions, the BLACK for a slow turn or for high pressures, and the GRAY for a faster turn or low pressures. NOZZLES: Wide range with color code that define its diameter and flow rates. PLATOS: 2 versions of 8º and 12º. This sprinkler is ideal for under-canopy (sub-arboreal) irrigation and the positioning of the 4 blades of the body can be oriented to the trunks of the trees to avoid the direct impact of the water jet against them.

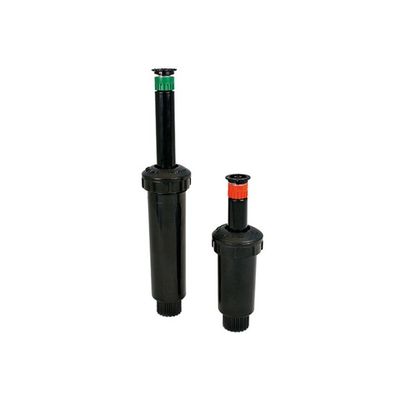

Pop-up spray sprinkler for residential and urban application. 1/2" female connection. Made Delrin plastic. Stainless steel spring with continuous tension. Built-in check valve. Anti-sand rubber seal. Removable grit filter for maintenance cleaning. Flow regulation screw. Technical specification:. Reach: 3-5 m. Flow: 240-1200 l. Workin pressure: 1-4 Bar. Area: Full or part circle and. Nozzle : Four nozzles of 3600,1800, 900,ajustable 00-3600. Trajectory angles:300. Maximum spray height: 1.2 m. Uniformity coefficient higer than 90% in areas of 4x4R, 5x5T,5x5,5T. Applications:.

Reach: 3 - 5.5 m. Flow: 240 - 1200 l/h (depending on nozzle type). Working pressure: 1 - 4 bar. Area: Full or part circle. Nozzles: Four nozzles of 360º, 180º, 90º and adjustable 0º - 360º. Trajectory angles: 30º. Maximum spray height: 1.2 m. Flow regulation: From total closure up to 15 VAN. Uniformity coefficient higher than 90% in areas of 4x4R, 5x5T, 5x5.5T.
