VYR - Model 180 S -Srayer

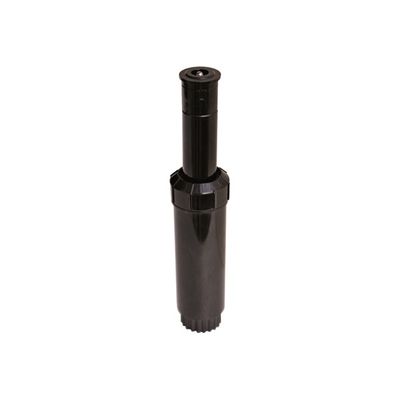

Pop-up spray sprinkler for residential and urban application. 1/2" female connection. Made Delrin plastic. Stainless steel spring with continuous tension. Built-in check valve. Anti-sand rubber seal. Removable grit filter for maintenance cleaning. Flow regulation screw. Technical specification:. Reach: 3-5 m. Flow: 240-1200 l. Workin pressure: 1-4 Bar. Area: Full or part circle and. Nozzle : Four nozzles of 3600,1800, 900,ajustable 00-3600. Trajectory angles:300. Maximum spray height: 1.2 m. Uniformity coefficient higer than 90% in areas of 4x4R, 5x5T,5x5,5T. Applications:.
Ideal for green urban areas where there is risk of vandalism, or where vehicle wheels may run over the sprinklers. In urban use, this sprinkler may have concret arounds its perimeter. Used in both, garden and greenhouse irrigation. Small green spaces, areas with shrubs and low trees. Dimensions:. Height: 10 cm. Width: 3 cm. Weight: 58 g. Units per box: 100. Options:. Telescopic riser for ground height adjustment. 1 m high PVC tube for installation with adapter in areas with bushes and tall plants.
- Alcance: 3-5,5 m.
- Caudal: 240 - 1200 l/h. (depende boquilla).
- Presión de trabajo: 1 - 4 BAR.
- Sector: Circular o sectorial.
- Boquillas: Cuatro boquillas de 360º, 180º, 90º y regulable 0º-360º.
- Ángulos de trayectoria: 30º.
- Altura máxima del abanico: 1,2 m.
- Regulación de caudal: Desde el cierre total hasta los 15 VAN.
- Coeficiente de Uniformidad superior al 90% en marcos de 4x4R, 5x5T, 5x5,5T.
- Conexión hembra de 1/2".
- Fabricado en plástico delrin.
- Muelle de acero inox de tensión continua.
- Tapón de protección y drenaje. INCLUIDO.
- Junta de caucho retén anti-arenas.
- Válvula de retención incorporada ( 4,8 m de columna de agua).
- Filtro anti-gravilla extraible para limpieza. INCLUIDO.
- Válvula anti-drenaje. INCLUIDA.
- Height: 10 cm.
- Width: 3 cm.
- Weight: 68 gr.
- Units per box: 100
- Weight per box: 7 kg.
