Warden Biomedia products
Biopebble (NEW) MBBR Filter Media 500m²/m³
Biopebble is our latest generation sustainable filter media optimised. Optimised for municipal and industrial wastewater treatment, as well as RAS systems, it was developed after a three-year research project at Cranfield University. The new spherical shape significantly improves media efficiency by improving media mobility and therefore reducing the aeration energy consumption. Biopebble is designed to provide enhanced nitrogen and ammonia removal. It is manufactured in the UK from high quality plastic, and is available in 100% recycled polypropylene and virgin HDPE – and is fully recyclable at end of life. It is a durable and rugged media, with density close to water, making it ideal for MBBR applications. The surface area (500 m²/m³) allows for optimum biofilm attachment, which promotes the generation of healthy and thin biofilms, improving resistance to shock loads, as well as increasing capacity and reducing the required tank volume.

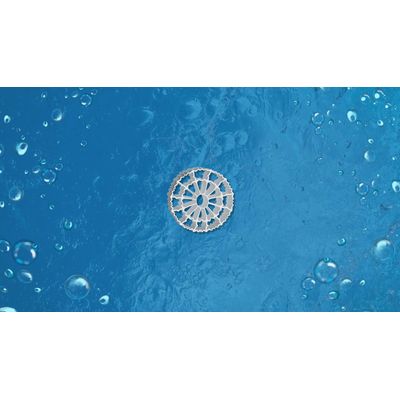

MBBR Filter Media 800m²/m³
Has a wheel shape with internal fins and large openings, offering a protected surface area of 800m²/m³. Bioflo+ is designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the media are suspended in water. A durable, rugged and highly efficient media for moving bed biological reactors (MBBR), integrated fixed film activated sludge (IFAS) systems and Recirculating Aquaculture Systems (RAS). Its innovative design creates a high percentage of protected surface area for micro-organisms to adhere. In turn, this increases the overall biomass concentration and can reduce tank volumes required for wastewater treatment, thereby reducing civil and excavation costs. Large openings allow for the wastewater to freely pass through the media which helps maintain a healthy and thin biofilm.
Biotag MBBR Filter Media 650m²/m³
Biotag has a wheel shape with internal fins and large openings, offering a protected surface area of 650m²/m³. Biotag is designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the media are suspended in water. A durable, rugged, and highly efficient media for moving bed biological reactors (MBBR) and integrated fixed film activated sludge (IFAS) systems. Its innovative design creates a high percentage of protected surface area for micro-organisms to adhere. In turn, this increases the overall biomass concentration and can reduce the tank volume required for wastewater treatment. Large openings allow for the wastewater to freely pass through the media which helps maintain a healthy and thin biofilm.
Biopipe+ MBBR Filter Media 500m²/m³
Biopipe+ has a wheel shape with internal fins and large openings, offering a protected surface area of 500m²/m³. The Biopipe+ is designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the media are suspended in water. A durable, rugged and highly efficient media for moving bed biological reactors (MBBR) and integrated fixed film activated sludge (IFAS) systems. Its innovative design creates a high percentage of protected surface area for micro-organisms to adhere. In turn, this increases the overall biomass concentration and can reduce the tank volume required for wastewater treatment. Large openings allow for the wastewater to freely pass through the media which helps maintain a healthy and thin biofilm.
Biomarble MBBR Filter Media 310m²/m³
With a spherical design and surface area of 310mm²/m³, Biomarble has the highest surface area of the three spherical designs in the Biomedia filter range. With purpose-designed features Biomarble, in the Warden Biomedia filter range, is an excellent alternative to traditional mineral-based media and is ideal for improved performance in new wastewater treatment plants.
MBBR Filter Media 220m²/m³
Bioball has a spherical design and surface area of 220m²/m³. Bioball is a perfect solution when surface area is more important than voidage. With purpose-designed features Bioball, in the Warden Biomedia filter range, are an excellent alternative to traditional mineral-based media and are ideal for improved performance in new wastewater treatment plants.
MBBR Filter Media 135m²/m³
With a surface area of 135m²/m³; Biofil has a spherical design, suitable for applications where larger or greater voidage is required. With purpose-designed features Biofil, in the Warden Biomedia filter range, are an excellent alternative to traditional mineral-based media and are ideal for improved performance in new wastewater treatment plants. Biological filter media of the relevant dimensions can replace all or part of the mineral-based media to improve system efficiency where it has become impaired by overloading. The surface textures of Warden Biomedia enable biomass or bacteria to adhere more effectively to reduce loss of media due to installation procedures.
Biopipe MBBR Filter Media 600m²/m³
Wheel shaped random filter media with internal and external fins and surface area of 600m²/m³. Biopipe is designed to provide a large protected surface area for the biofilm and optimal conditions for the bacteria culture when the media are suspended in water. A durable, rugged and highly efficient media for moving bed biological reactors (MBBR) and integrated fixed film activated sludge (IFAS) systems. Its innovative design creates a high percentage of protected surface area for microorganisms to adhere. In turn, this increases the overall biomass concentration and can reduce the tank volume required for wastewater treatment. Large openings allow for the wastewater to freely pass through the media which helps maintain a healthy and thin biofilm.
