Welker, Inc. products

Welker’s turnkey natural gas injection odorization solution for flow rates from 1 Mscfh up to 70 MMscfh  and a maximum operating pressure of 1800 psig.

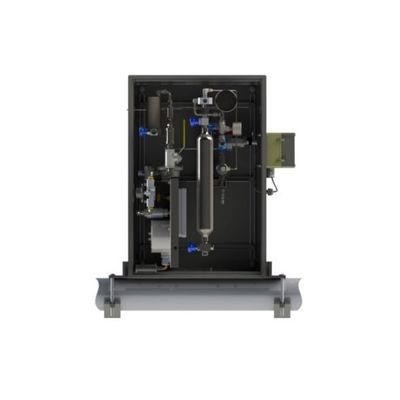

Temperatures near or below the hydrocarbon dew point can cause sample distortion. Where phase change is a concern, the Welker HGS Heated Gas Sampler can help. Contained within an insulated enclosure, the HGS mounts directly to the pipeline. The heater maintains a temperature above the hydrocarbon dew point for representative composite samples. Connect your sample probe to the sampler subassembly to collect fresh samples proportional to flow or time.The HGS is ideal for natural gas at or near the hydrocarbon dew point.

The Welker GSS-4PM Composite Gas Sampler extracts a sample from the flowing product in the pipeline and uses positive displacement to capture a representative sample.

The Welker SSM-1 Spot Sampling Manifold is designed to optimize natural gas spot sampling procedures by reducing liquid carryover and prevent the creation of liquids. Connect a Welker Sample Probe and a Welker Single Cavity Cylinder to the SSM-1 and you’ve got a complete spot sampling system.

The ideal sampler for bypass sampling systems, the Welker inLoop ACE Crude Oil Sampler collects repeatable representative samples of light and medium crude oil and refined hydrocarbons. IOMIOM-224.

The Welker TCC Optimum™ Transportable Crude Oil Container is designed for ease of use when collecting and transporting sampled product. The light weight of the TCC Optimum™ reduces the physical strain on the operator during installation and removal.

The Welker inFlow Lite is a double-acting inline sample pump designed to take quality samples of high flow condensates and natural gas liquids (NGLs) proportional to flow. Connect a solenoid, controller signal, pneumatic or hydraulic supply, and sample container to this direct-mount sample pump, and you’ve got a complete liquid sampling system.

The Welker Essentials™ Light Liquid Sampler is double-acting positive displacement pump designed to take quality samples of low volume (100–4000 bbl/d) natural gas liquid streams proportional to flow. Connect a 4-way solenoid, pneumatic supply, controller signal, and constant pressure cylinder with internal mixer to this bypass sample pump and you’ve got a complete liquid sampling system ideal for accurate composition analysis, quality control, or custody transfer.

Integrate Welker’s LS-14 Constant Pressure Sample Container into your composite sampling system to collect and retain representative samples of light liquid products for accurate laboratory analysis and billing.

Safely and effectively odorize individual low flow natural gas lines with Welker’s wick style odorizer.
