Wellcare Oil Tools Private Limited products

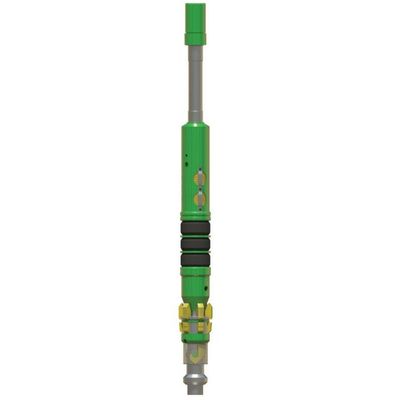

The Wellcare Hydraulic Set Production Packer is a hydraulic-set cut-to-release packer that combines the pressure and temperature ratings and reliability of a permanent packer with the convenience of a retrievable packer. The HP-15 retrievable packer is designed using unique design features that result in a retrievable packer suitable for high differential pressure and high temperature applications. The barrel slip located below the elements uniformly distributes the packer to casing loads. The propped element package reliably seals the high pressures and can be retrieved with the packer. Once this packer is run and set, it is released by cutting the mandrel. When the mandrel is properly and completely cut. the packer will release and all of the packer components along with the tailpipe can be retrieved from the well.

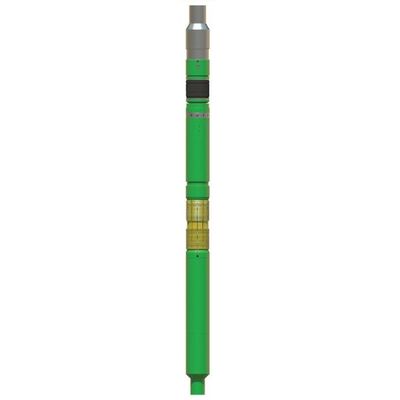

This Wei I care Electric Submersible Pump(ESP) Packer is used with a completion that requires an electric submersible pump below the packer to assist in pumping the formation fluids to the surface. The ESP packer incorporates aby pass or pass - through section to provide means for an electric cable to be run through the packer to supply power to the electric submersible pump below the packer.

This packer is a retrievable set down packer that features a large by pass area through packer. The bypass area is controlled by a face seal type bypass valve which actuated by a 30 inch stroke mandrel.

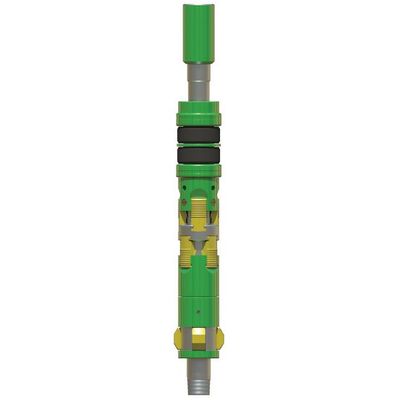

The Wellcare Lock-Set Retrievable Packer is a Full Bore Double-Grip Retrievable Packer with an integral Unloader, Opposed non-transferring dove tail Slips prevent movement of the Packer in either direction due to pressure differentials, while allowing landing of the tubing intension, compression, or neutral. The Lock Segments serve as a releasable Lock Ring to maintain pack-off once the packer is set, and locks the Unloader in the closed position until the tool is released. The Split Lock and Control Segments allow the tool to be both set and released with right-hand rotation.

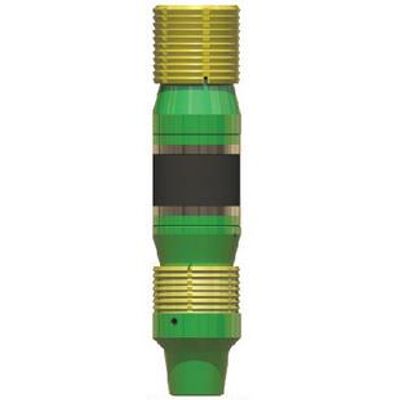

The WELLCARE Model WC-WL8P Wireline Set Bridge Plug or Model WC-MBP Mechanical Set Bridge Plug are high performance drillable bridge plugs, commonly used for zonal isolation during stimulation or cementing jobs, or for temporary and permanent abandonments.

The Wellcare`s Cement Retainer is a high-performance drillable cement retainer ideal for most remedial cementing applications. This is designed to function as a drillable squeeze packer which, after cementing, acts as a plug trapping squeeze pressure on the cement below the retainer and isolating the newly cemented area from the hydrostatic pressures above the cement retainer.
The Model WC-WLCR/MCR Cement Retainers can easily be converted to Model WC-WLBP/MBP Bridge Plugs

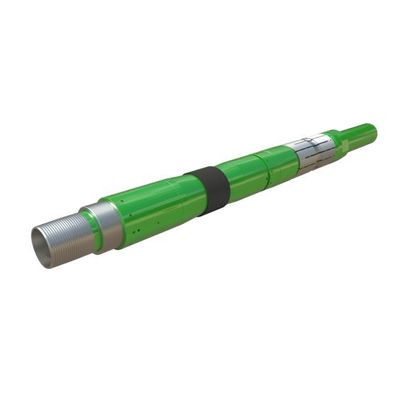

Tde Hydraulic Set Liner Hanger with bonded element provide a method for suspending a liner off bottom and in tension by anchoring, or hanging, the top of the liner in existing casing.

The Hydraulic Set Liner Hanger with Integrated Packer provide a method for suspending a liner off bottom and in tension by anchoring, or hanging, the top of the liner in existing casing.

The Non-Rotating Hydraulic Set Liner Hanger is available in most combinations of liner to casing sizes, materials and thread combinations.

Wellcare Non Cemented Liner Hanger Packer is highly recommended product in Non Cementing Job. using a Hydraulic Pusher Tool for setting. Its top connection is connected with setting collar SC-HR for running with HRT-E running tool.
