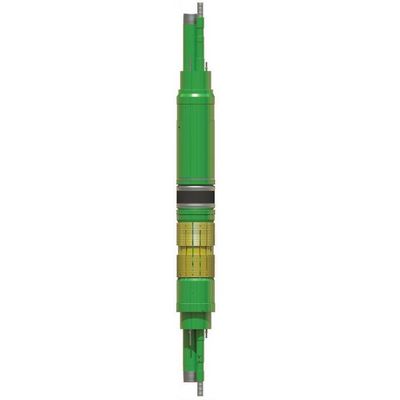

Wellcare - Model WC-ESP / WC-20809 -Electric Submersible Pump Packer
This Wei I care Electric Submersible Pump(ESP) Packer is used with a completion that requires an electric submersible pump below the packer to assist in pumping the formation fluids to the surface. The ESP packer incorporates aby pass or pass - through section to provide means for an electric cable to be run through the packer to supply power to the electric submersible pump below the packer.
This ESP packer is a single-mandrel, dual-bore hydraulic-set production packer. The packer has a NPT chemical injection port and one NPT port lor a vent valve. The packer is set by pressuring up the tubing string against a plugging device below the packer and is locked in the set position mechanically by an internal slip. Bi-directional, case-carburized slips hold the packer against well pressures from above and below. Release and retrieval is accomplished straight upward pull on the tubing string.
- Single-trip capability.
- Single-piece mandrel construction.
- Furnished with universal 1.900" API NU connection Penetrator available with 1" flat and roundcable
- Available in Straight Pull and Cut to release option.
OPERATIONAL BENEFITS
- Bi-directional barrel-slip design provide high loading capacity and uniform transfer of load.
- Convenient and handy cable connection all major cable pack-off or teed- thru devices.
- Field adjustable straight pull release.
- Standard penetrator available for all size.
