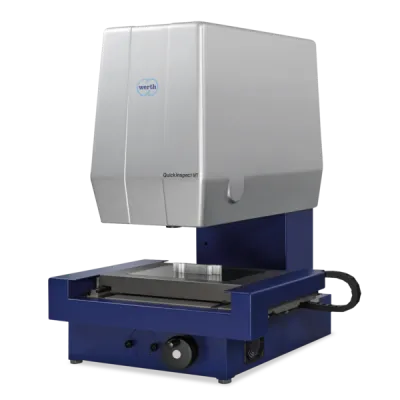

The QuickInspect is a contemporary profile projector designed for rapid and precise measurement applications across shop floors and measuring rooms. It offers complete workpiece capture within a single image, facilitating straightforward operation and reduced measurement times. Most QuickInspect models do not require focusing due to the large depth of field provided by telecentric lenses. This digital measurement projector automatically identifies and measures the workpiece, placed on its measuring table. The QuickInspect MT variant enables optical display and measurement of small, precise features on larger objects with almost any resolution, thanks to its patented technology. This equipment is optimized for 2D workpieces with measuring fields from 0.8 x 0.6 mm to 225 mm x 190 mm. It maintains a high accuracy level with permissible length measurement error up to 0.25 µm. Additional functionalities include universal measurement software compatible with optics, probes, computed tomography, and multi-sensor systems.

The Werth VideoCheck series offers advanced multisensor coordinate measuring machines designed for the laboratory setting, providing unparalleled accuracy for various complex measuring tasks. These machines integrate precision mechanics and state-of-the-art control technology, making them a robust solution for tactile and optical 3D measurements, where measurement uncertainties are minimized to the 0.1 µm range. This high level of precision can be maintained due to traceable length measurement errors, ensuring reliable output for intricate measurements. The intrinsic accuracy of these machines makes them a formidable foundation for diverse multisensor systems applications, adding to their versatility and reliability across different laboratory environments.

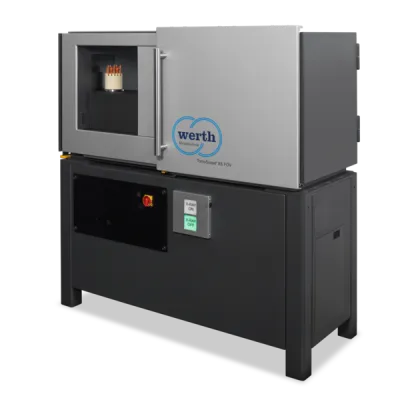

The TomoScope XS FOV is an entry-level device specifically designed for industrial computed tomography (CT) applications, focused on small workpieces. This flexible unit provides expedient measurements by capturing 3D images directly within the detector's field of view, eliminating the need for moving components, thus enabling full automation. It's particularly useful for inspecting small plastic components that are mass-produced, as its compact design allows for concurrent measurement of multiple items using appropriate fixtures. The device features a measuring range with workpiece dimensions up to a diameter of 120 mm and a length of 93 mm, depending on the aspect ratio, with an impressive permissible length measurement error of up to 5 µm. Compatible with universal measurement software, the TomoScope XS FOV supports optics, probes, and multi-sensor systems operations, offering a comprehensive solution for various industrial metrology needs.
