Western Rubber & Manufacturing products

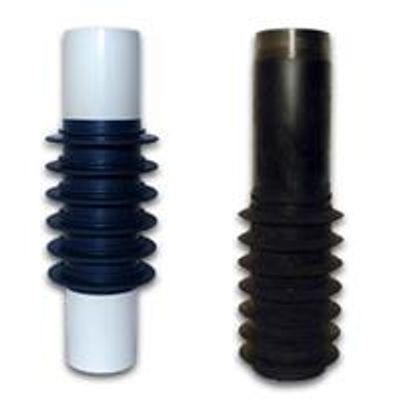

Available in the three (3) types, COUPLING (Right by Right/Right by Left) BLANK (for gluing to PVC pipe) WELD ON. Designed to seal in Schedule 40 pipe unless stated otherwise. Can be Furnished in STAINLESS STEEL. Provides a “sand tight” seal between screen and casing. Used for many applications in WATER WELL, CONSTRUCTION, AND ENVIRONMENTAL industry. Constructed from neoprene rubber being vulcanized and bonded under heat and pressure to coupling or pipe. Available in two (2) rubber hardnesses 70 durometer—STANDARD 50 durometer—SOFT. CUSTOM K-PACKERS AVAILABLE to 24”, please call with your requirements.

Seals in hard rock when using 6” to 6-1/4” hammer. sed has liner seal in 6” to 6-1/4” ID casing. Stays where you set it, will not drift up or down in well. Available in PVC or Steel Pipe. Can be threaded, NPT pin one or both ends. 21” long standard length

The one and only BP Assembly. A simple soultion to develop and gravel pack a well, while maintaining control of the well screen. Quickly connect or disconnect from the screen with ease. The BP Assembly gives you total control during operation, and creates a sand tight seal after completing well development.

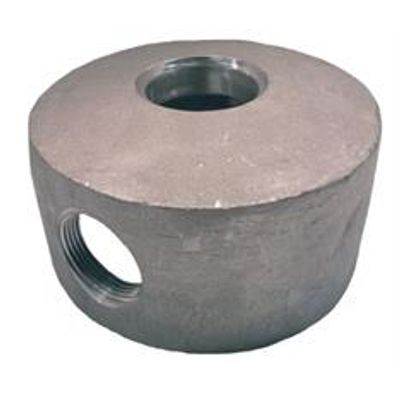

Available for 4”, 5”, 6”, 8”, 10”, 12”, and 14” well casing. Two (2) side opening for wires or additional pipe. O-Ring sealed in the ID of WELL SEAL and drop pipe. 4”, 5” and 6” are constructed from lightweight high strength aluminum alloy. 8”, 10”, 12” and 14” are a two-piece, alloy steel construction design. Available with a large section of drop pipe sizes. Easy on – off design. Uses weight of drop pipe to seal on well casing.

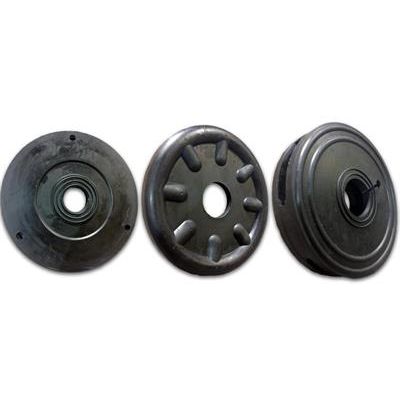

Rubber disc designed to clean mud and debris off pipe. Available in six (6) different styles. Seven (7) different OD’s. Several hardnesses of NATURAL RUBBER 55 durometer — STANDARD 30 durometer — SOFT 70 durometer — HARD . With or without stiffing ring, STEEL. Large inventory for fast delivery. Can be supplied for most drill pipe and casing sizes, SPECIALS AVAILABLE.

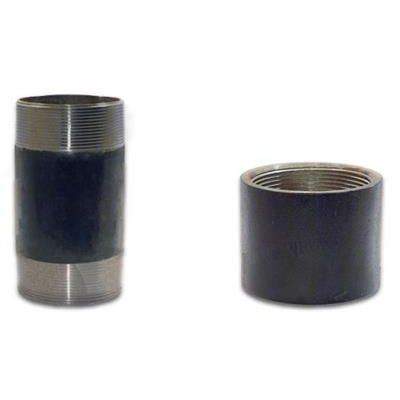

Nipples and Couplings in right-by-right and right-by-left NPT threads. Available in RIGHT by RIGHT or RIGHT by LEFT. Most couplings in Standard or TURNED OD, smaller diameter. Shipped from our large stock. A perfect mate when using our K-PACKERS.

Available for most standard environmental well Casing. Manufactured from a SILICON material. Contains NO hydrocarbons or other toxic materials. Designed for grouting between well casing and bore hole. For identification – Colored BROWN. Provided with STAINLESS STEEL CLAMP.

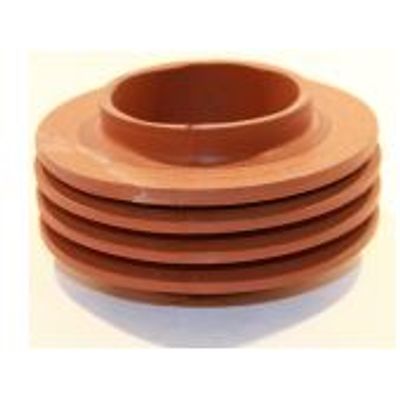

Provides a sand tight seal between well casing and drop pipe. Manufactured from a SILICON material. Contains NO hydrocarbons or other toxic material. Available in most popular sizes for the environmental market. For identification – Colored BROWN

Fluid Passage – 4” Maximum. Compact Design. Thrust Ball Bearings for pressure and radial load support. Choice of hose and lower connection threads. Easy field maintenance and repair.
