Wi.Tec-Sensorik GmbH products

The INFRA.sens was specially developed for high-quality NDIR gas analysis. In the design phase, special emphasis was placed on high stability and a low detection limit. With the use of high-performance thermal micro radiators, which were adapted to the needs of gas measurement technology, these goals were achieved in full. In the spectral range from 2 μm to 12 μm, carbon dioxide, carbon monoxide, hydrocarbons and nitrous oxide can be reliably detected up to the ppm range with this new sensor platform.

The INFRA.sens was specially developed for high-quality NDIR gas analysis. In the design phase, special emphasis was placed on high stability and a low detection limit. With the use of high-performance thermal micro radiators, which were adapted to the needs of gas measurement technology, these goals were achieved in full. In the spectral range from 2 μm to 12 μm, carbon dioxide, carbon monoxide, hydrocarbons and nitrous oxide can be reliably detected up to the ppm range with this new sensor platform.

Rugged sensor design. No cross-sensitivity to CF4. Low power consumption < 2 W @ 24 V. Different Interfaces (RS232, CANbus, Analog). Pressure compensated (600-1200 mbar). Inklusive MARS-Tool (Wi.Tec Software).

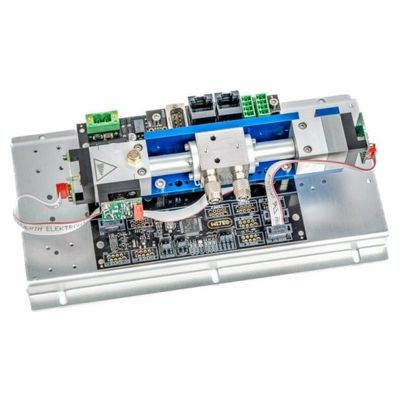

Low detection limit N2O without CO2 interference. Temperature controlled at 50°C. Low drift. Internal pressure compensated. Different interfaces (RS232, CANbus,Analog. MARS-Tool (Datalogger and Controlsoftware).

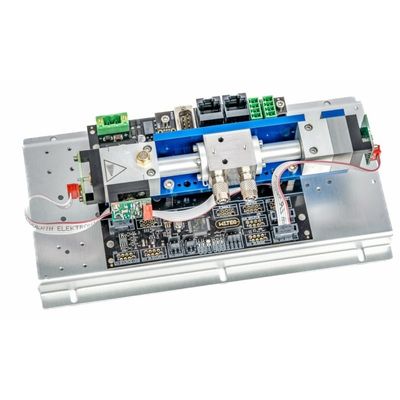

Low detection limit CO without CO2 interference. Temperature controlled at 50°C. Low drift. Internal pressure compensated. Different interfaces (RS232, CANbus,Analog. MARS-Tool (Datalogger and Controlsoftware).

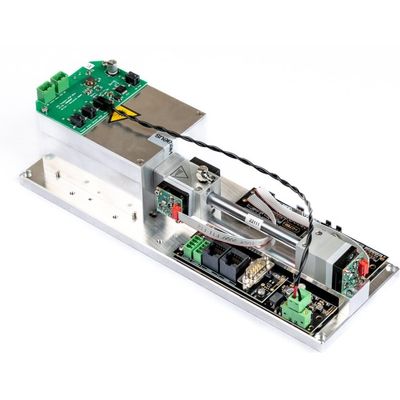

The ULTRA.sens^® is the world’s first OEM gas measurement module based on miniaturized UV LEDs. The stability and lifetime of these UV-LEDs enables high-precision gas analyses down to the ppb range. By using two UV-LEDs 2 gases can be detected simultaneously. With this approach, 2 measuring ranges from ppm to Vol.-% can also be realized. In the spectral range from 200 nm to 500 nm, nitrogen oxides (NO+NO₂), aromatic hydrocarbons, hydrogen sulphide, ozone, sulphur dioxide and chlorine can be reliably detected with this novel sensor platform.

The ULTRA.sens is the world’s first OEM gas measurement module based on miniaturized UV LEDs. The stability and lifetime of these UV-LEDs enables high-precision gas analyses down to the ppb range. By using two UV-LEDs 2 gases can be detected simultaneously. With this approach, 2 measuring ranges from ppm to Vol.-% can also be realized. In the spectral range from 200 nm to 500 nm, nitrogen oxides (NO+NO₂), aromatic hydrocarbons, hydrogen sulphide, ozone, sulphur dioxide and chlorine can be reliably detected with this novel sensor platform.

The ULTRA.sens is the world’s first OEM gas measurement module based on miniaturized UV LEDs. The stability and lifetime of these UV-LEDs enables high-precision gas analyses down to the ppb range. By using two UV-LEDs 2 gases can be detected simultaneously. With this approach, 2 measuring ranges from ppm to Vol.-% can also be realized. In the spectral range from 200 nm to 500 nm, nitrogen oxides (NO+NO₂), aromatic hydrocarbons, hydrogen sulphide, ozone, sulphur dioxide and chlorine can be reliably detected with this novel sensor platform.

Resistant to corrosive gases. Fast response time. Applicable for continuous measurements.

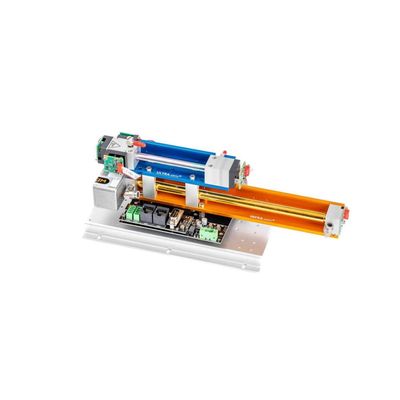

Optimal adaptation to the measurement task. Combination of IR and UV technology. High accuracy. Low power consumption. Compact size. Space-saving design. Up to 3 gases + O2. Cross-charging among each other possible.
