Wolfgang Mehner GmbH products

Maintenance-free, soft sealed valve made out of EN-JL1040 standard with flow control function optionally available as cap valve. Lengths: FTF-1 / FTF-14. DN 15 to 200. PN 6 to 16.

3-Way ball valve made of brass various series, threaded connection (female thread) with full or reduced bore. Ball material brass, seal material PTFE. Ball with L - or T-port.

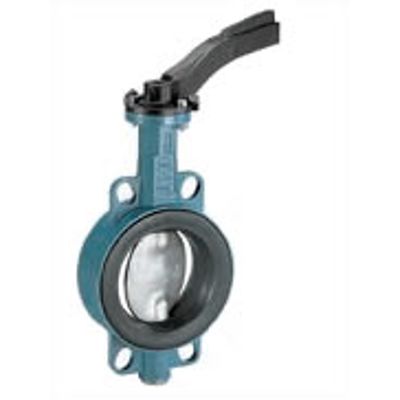

Nominal diameters: DN25 - 500 (1` - 20`) available for flange connections PN10 / 16 / ANSI Class 150. Housing construction form: Intermediate flange, flange. Temperature range: -29 °C to 204 °C (-20 °F to 400 °F). Pressure stages: up to 10 bar. Body materials: Grey cast iron, nodular cast iron, stainless steel, aluminium. Disc / shaft material: Stainless steel, EPDM coated stainless steal, BUNA-N coated stainless steel. Seat material: BUNA-N, EPDM, PTFE lined EPDM, FKM, polyurethane. Areas of application: Hygiene sector, slightly corrosive toxic media.

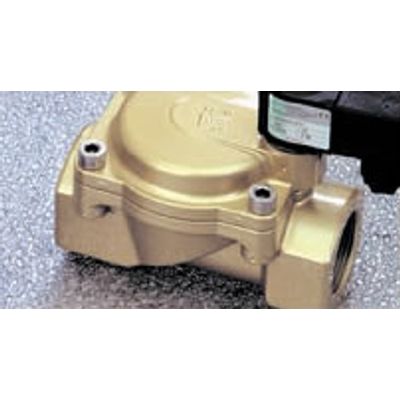

Materials: bass, stainless steel, cast steel, cast iron. Seals: nbr, fpm, epdm, ptfe, cr, hnbr, peek. Connection: g 1/4 - g 2 and dn 15 - dn 200. Piston or diaphragm valves for steam use. CNG high pressure.

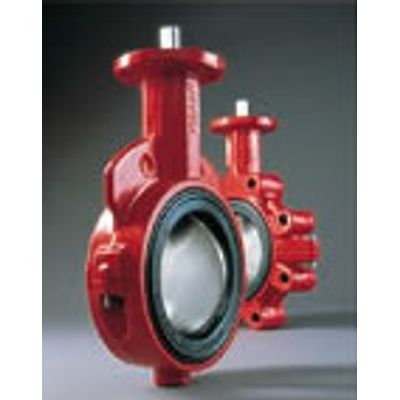

Universally applicable intermediate flange valve in accordance with EN 593. The variety of available base materials provides the ability to work in different areas.

Nominal diameters: DN 4 - DN 300. Operating pressure: 0 - 10 bar. Pressure level: up to PN 16. Operating temperature: -10 to 150°C. Body materials: Grey cast iron, nodular cast iron, cast steel, brass, stainless steel, linings with hard and soft rubber, PP, PVDF, PFA, ECTFE, etc.. Body finish: Round body (2/2-way valve), T-valve (3/2-way valve), multi-way valves (individual) (individuell). Drive: electric-powered, manually, pneumatically - actuated.
