Zero Gravity Filters Inc. products

Body: Stainless steel 304L. Magnet: Permanent, rare earth, neodymium iron boron. Magnetic tube: Stainless steel 316L. Ball Valve: Outlet/Purge: ¾” 3-way ball valve. The valve has a stainless steel 316 body and ball with PTFE seats. Actuator: Double acting, developing 300 in/lb at 80 psi. Manufactured by Assured Automation, size PD045. Connections: Inlet: ¾” MNPT. Outlet/Purge: ¾” FNPT. O-rings: Viton standard.

Body: Stainless steel 304L. Magnet: Permanent, rare earth, neodymium iron boron. Magnetic tube: Stainless steel 316L. Ball Valve: Outlet/Purge: 1” 3-way ball valve. The valve has a stainless steel 316 body and ball with PTFE seats. Actuator: Double acting, developing 398 in/lb at 80 psi. Manufactured by Assured Automation, size PD060. Connections Inlet: 1” MNPT. Outlet/Purge: 1” FNPT. O-rings: Viton standard.

Body: 5” Stainless steel 304L. Magnet: Permanent, rare earth, neodymium iron boron. Magnetic tube: Stainless steel 316L. Ball Valve: Outlet/Purge: 1.25” 3-way ball valve. The valve has a stainless steel 316 body and ball with PTFE seats. Actuator Double acting, developing 601 in/lb at 80 psi. Manufactured by Assured. Automation, size PD090. Connections: Inlet: 1.25” Victaulic. Outlet/Purge: 1.25” FNPT. O-rings Viton standard.

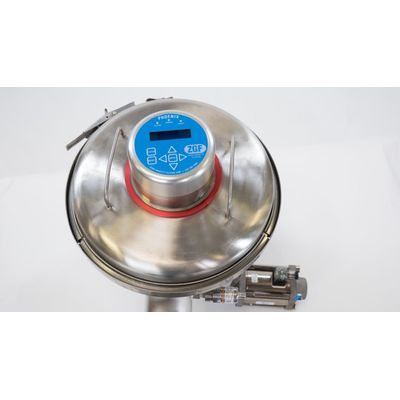

The Phoenix is the most advanced, automatic, non-disposable liquid filtration system. The patented design allows for 24/7 uninterrupted operation. The Phoenix’s stainless-steel construction allows for use in a wide variety of applications and industries.

The EZ Clean series filtration systems are the most advanced, automatic, non-disposable liquid filtration systems built to meet the needs and requirements of many industries.

The EC700 liquid filtration system uniquely suited for filtering Oil & Gas field fluids such as flowback water and produced water. It was designed to meet the needs and requirements of the oil & gas industry and now can be used in any application requiring pressure vessel certification.

The EC700S / EC700SLT is the most advanced, automatic, non-disposable liquid filtration system. This best-in-class technology is ideal whenever you require removal of suspended solids, silt, grit, fines or other particulate matter from water or other water-based process fluids.

The EC100 liquid filtration system is available in either our standard industrial version or an ASME Section VIII version that is uniquely suited for refineries, chemical plants and the Oil & Gas fields.

The Tornado is a patent pending centrifugal separator that puts a new spin on an established technology! The Tornado separator is the future of centrifugal separation technology. The innovative separator utilizes an internal blade design. The blades create a unique and beneficial flow path through the separator that increases the “G – Force”, resulting in more effective and efficient particle removal.

The Smart Drum and Smart Drum PLUS (SD) are fluid recovery devices. The SD is a fully automatic, batch process, magnetic separator that is used in conjunction with Maggie in-line separators. The purpose of the SD is to physically remove the magnetic fines from the Maggie purge fluid and return the clean fluid back to the process.
