Zhejiang Danau Machinery Co., Ltd products

Forged Manifolf,offer 3 types of material for various applications. Die-cast alloy aluminum crankcase, anodized.. Aluminum forged connecting rod, reinforced with bushing.. Stainless steel plunger with ceramic coating and precision grinded. PARKER High-Iow dual pressure packing, with integrated cooling. High volumetric efficiency checking valve, features spherical sealing areas.. Symmetrical power end allows for easy left to right shaft conversion. Manifold Material optional in BRASS, STAINLESS 420, DUPLEX(SSD)2205, and 316 download attachments.

Forged Manifold, offers 3types of material for various applications. Die-cast alloy aluminum crankcase, anodized. Aluminum forged connecting rod, reinforced with bushing. Stainless steel plungerwith ceramic coating and precision grinded. PARKER High-low dual pressure packing, with integrated cooling. High volumetric efficiency checking valve, features spherical sealing areas. Symmetrical power end allows for easy left to right shaft conversion. Manifold Material optional in BRASS,STAINLESS 420,DUPLEX(SSD) 2205. Applications: Municipal, environmental, petrochemical, mining, sea waterreverse osmosis desalination, food, drink, alcohol, chemical, pharmaceutical and other industries.PLI.

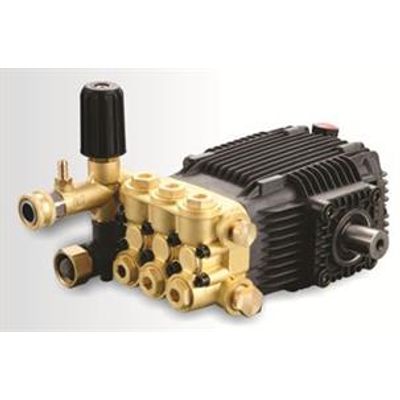

Manifold: Forged brass. Crankcase: Aluminum alloy, die-cast, anodized. Wobble Plate: Aluminum forged. Cast iron(optional). Bearing:  Dual thrust bearing. Plunger: Solid stainless steel, heat treatment. Ceramic coating(optional). Plunger Seals: Germany Parker, U type. Lubrication: Splash type, oil type 15W-40.

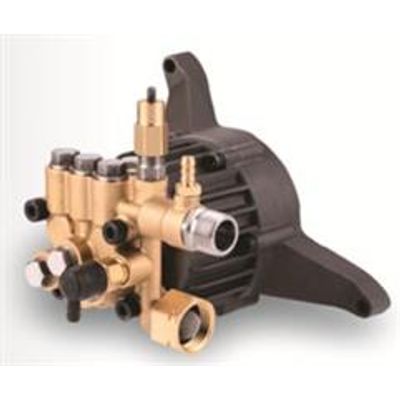

Manifold: Forged brass. Crankcase: Aluminum alloy, die-cast, anodized. Crankshaft: Steel alloy, forged, hardened, precision grinded. Connecting Rod: Aluminum alloy, Zinc alloy (optional), Bronze(optional). Bearing: Ball and needle bearing. Plunger: Solid stainless steel, ceramic coating, precision grinded.

Manifold: Forged brass. Crankcase: Aluminum alloy, die-cast, anodized. Crankshaft: Steel alloy, forged, hardened, precision grinded. Connecting Rod (18series): Aluminum alloy, Zinc alloy (optional). Bearing: Ball and needle bearing. Plunger: Solid stainless steel, ceramic coating, precision grinded. Plunger Seals: Germany Parker, U type, duplex packing.

Manifold: Forged brass. Crankcase: Aluminum alloy, die-cast, anodized. Crankshaft: Steel alloy, forged, hardened, precision grinded. Connecting Rod: Aluminum alloy, Zinc alloy (optional), Bronze(optional). Bearing: Ball and needle bearing. Plunger: Solid stainless steel, ceramic coating, precision grinded.

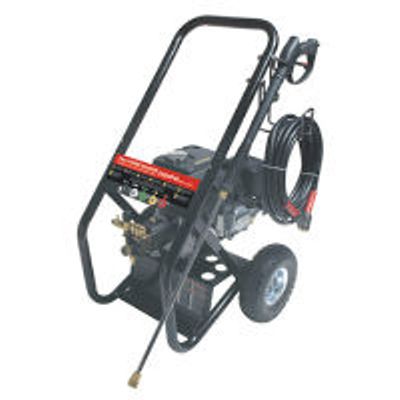

6.5HP OHV engine with low oil protection.    Commercial-duty grade direct drive brass manifold axial pump, with thermal relief valve, pressure adjustable.6.4mm(1/4in.) x 8m(25ft) high-pressure hose,M22 fitting.Quick connect nozzle tips size 2.5, spray patterns 0, 15, 25,40 and soap.Professional trigger gun with safety-lock and 20inch stainless steel wand with 1/4`mch quick disconnect.10 inch pneumatic wheels.Powder coating heavy-duty folding frame.Down stream low pressure detergent injector.

6.5HP OHV engine with low oil protection.Medium-duty grade direct drive brass manifold axial pump.6.4mm(1/4in.) x 8m(25ft) high-pressure hose,M22 fitting.Quick disconnect nozzle tips size 2.0, spray patterns 0, 25, 40 and soap.Professional in front trigger valve gun with safety-lock and 20inch stainless steel wand with 1/4inch quick connect. 12 inch non-flat wheels. Powder coating heavy-duty easy-to-move frame. Down stream low pressure detergent injector.

Forged brass manifold, provides high strength and corrosion resistance.Anodized die-cast crankcase with large cooling fin for maximum heat dissipation.Hardened and precision grinding crankshaft, for maximum durabilityand long life.Ceramic plunger, to increase resistance to pitting and wear, for     maximum durability.Strengthened one-piece alloy aluminum connecting rod.German U-packing.Reinforced pop-off valve cage.Ball and roller bearing, for maximum life and load distribution.Bolt-on pressure adjustable unloader Stainless steel banjo bolt .In-line water filter.    Fixed rate detergent injector

Forged brass manifold, provides high strength and corrosion resistance.Anodized die-cast crankcase, with large cooling fin for maximum heat dissipation.Hardened and precision grinding crankshaft,for maximum durability and long life.Ceramic plunger, to increase resistance to pitting and wear, formaximum durability.Strengthened one-piece alloy aluminium connecting rod.German U-packing.Reinforced pop-off valve cage.Dual tapper roller bearing.    Inlet: 1/2BSPP Outlet: 1/2BSPP
