ZZ Resistivity Imaging Pty. Ltd. products

FlashRES-UNIVERSAL can be used in a variety of situations, including: Mineralization exploration exploration. Ground water resource.  Archaeological exploration bridge/tunnel base exploration. Underground fracture detection void detection

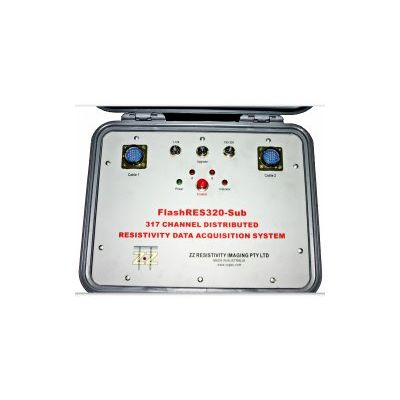

FlashRES-320 is fast and has 317 channels. It has the ability to acquire multiple data arrays in a single run and the capacity to collect over 310k data points within an hour. FlashRES-320 is versatile. Beside surface survey, it also specialises in cross-hole, surface-points-points, surface-borehole, and 3D surveys. FlashRES-320 yields quality results. The sheer amount of data it can collect and 2.5D inversion software enable the accuracy and precision of the final inversion result. FlashRES-320 offers superior usability in the field. It is durable, easy to carry, and displays full waveform. FlashRES-320 is tuned to performing long survey in a cost-effective way.

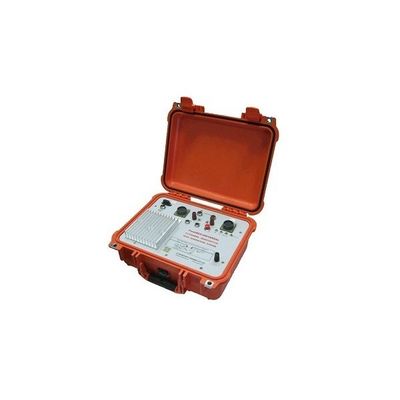

FlashRES-UNIVERSAL 96 Resistivity/IP meter is our most advanced system. It has all FlashRES--UNIVERSAL 61-channel meter`s abilities and functions, but with additional 32 extra electrodes and 32 extra channels. It has the fastest data acquisition speed.

General - Measurment variables: Resistivity, IP and SP. Operating time: 30 data points/second. Measurement range: From -10V to +10V. SP compensation: Automatic cancellation. Resistivity cycle times: From 0.1S to 10S. Automatic multi-electrodes: Yes. Data samping rate: 100KHZ. Data storage: Unlimited. Data transmission: USB. Power supply: External 12V battery. Operating temperature: -20 to +70 oC. Operating Humidity: 98% RH. Weight: 5.3 kg. Dimension: 339 x 295 x 152 mm. Built-in GPS: Optional.

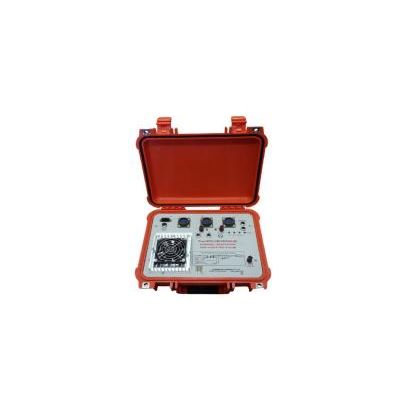

General - Five different versions: U128-MN(4 electrodes), U128-32(32 electrodes), U128-64(64 electrodes), U128-96(96 electrodes), and U128-128(128 electrodes).  Easy upgrade. Measurment variables: Resistivity, IP and SP. Measurement range: From -10V to +10V. SP compensation: Automatic cancellation. Resistivity cycle times: From 0.1S to 10S. Automatic multi-electrodes: Yes. Data samping rate: 100KHZ. Data storage: Unlimited. Data transmission: USB. Power supply: External 12V battery. Operating temperature: -20 to +70 oC. Operating Humidity: 98% RH. Weight: 9 kg. Dimension: 420x 360 x 200mm. Built-in GPS: Optional.

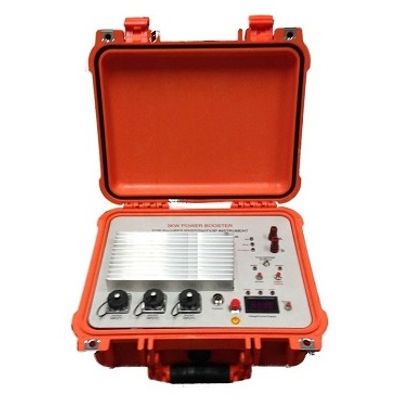

3,000W output power in 2 adjustable voltage ranges ( 400V/7.5A, 1,200V/2.5A), the FlashRES booster transmitter is particular useful for surveys in high resistive areas or IP surveys. When the FlashRES booster transmitter is connected FlashRES-UNIVERSAL, for each current injection, the system could collect 61 voltage measurement, this greatly increases the data collection speed. Uses two standard 12V batteries connect in series as input power source. The FlashRES booster transmitter is designed for heavy duty usage, the instrument is shock, water and dust proof. Light-weight and easily mobilised. Easy to use.
