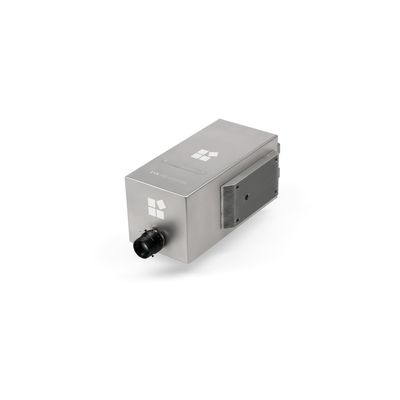

Real time chemical imaging - Model EVK HELIOS EQ32 -0.9-1.7µm Hyperspectral Imaging System

EVK HELIOS EQ32, a measuring system with an integrated classification system specially designed for industrial working conditions, has been created in close cooperation with partners from the mechanical and plant engineering industry. Due to the stable optomechanical design for real industrial temperature conditions, machine designs and fields of application, as well as data processing and algorithms specially developed for analytics, EVK HELIOS EQ32 enables an optimized analysis directly in the process line.

• Quantitative and qualitative analysis of the data stream
• Real-time hyperspectral imaging system
• 320 pixels spatial resolution in the NIR wavelength band
• High quality optically corrected spectra
• Classifi ed data stream

Spatial resolution in real-time
The workflow in which the system is configured, chemometric models are created and transferred with the help of the software EVK SQALAR, is seamless. The evaluation takes place completely in the EVK HELIOS EQ32 system, whereby no external evaluation systems are required. However, a connection to already existing evaluation systems is easily possible via GigE Vision/GenICam and Camera Link. EVK HELIOS EQ32 is equipped with 312 effective pixels spatial resolution, measures in the wavelength range of 930 - 1700nm and thereby scans with a frame rate of 446Hz full frame.

Customers are supported by the EVK Professional Services team from application development to the fully integrated EVK HELIOS EQ32 system on-site. EVK thus enables the integration of state-of-the-art real-time analysis systems in the shortest possible time in order to successfully equip processing lines for the future and thus exploit the full potential of the applications.

• Operates in Near Infrared (NIR) wavelength range from 0.93 - 1.70 nm
• Spatial resolution of 312 effective pixels
• 500 Hz acquisition speed at 220 spectral pixels
• GigE Vision GenICam interface
• Rugged industrial design. Protection rating IP54
• Temperature Range 0°C - 50°C with full optical stability
• Optical system optimized for analytic applications
• Seamless integration with EVK SQALAR software suite

• Imaging system for inline operation
• Continuous real-time monitoring of your product stream
• Internal camera calibration no on-site calibration necessary
• Embedded data analysis - no need for external PC
• Compact and rugged industrial design for use in harsh environments
• Standardized industrial interfaces

• In-line monitoring and control of production streams
• In-line measurement of material composition
• In-line quantitative and qualitative analysis of analyte concentrations

Industry: Food

• Ripeness determination in food processing
• Detection and sorting of wooden breast defects
• Removal of foreign objects

Industry: Recycling

• Separation of transparent PET from other plastics
• Substitute fuels
• Separation of bulk material in heterogenic waste streams
• Flake Sorting: PVC in PET
• Caloric values of solid recovered fuels
• Separation of transparent PET from other plastics

Mining:

• Talc Sorting
• Sorting and detection of valuable minerals or rock
• Copper ore grading
• Manganese Sorting
• Lithium Sorting

• Spectral range: (929 ± 2 – 1702 ± 2) nm
• Line scan rate: 446 Hz full frame
• Spectral resolution: 2.5 nm
• Spectral sampling: 3.1 nm
• Spatial resolution: 320 pixels
• Pixel size: 30 x 30 μm
• Optical coupling: C-mount lens
• Slit: 60 μm
• Interfaces: GigE Vision (GV)1
• Trigger input: RS-485
• Dimensions without lens: 141 x 174 x 326 mm
• Weight: approx. 7.8 kg
• Power supply: 18 – 36 V DC
• Power consumption: max. 24W, typical 8W
• Protection rating: IP54
• Operating temperature: 0 to +50 °C
• Storage temperature: -25 to +75 °C
• Humidity: 8 to 80 %
• Data output
1. High quality calibrated spectral data (12bit GigE-Vision)
2. Mono8 classified data “EVK Class32”
3. 3x 8Bit RGB classified data “EVK EC3”/”EVK QCI”

1 GigE Vision supports configuration & data streaming
